Train/Vehicle Multi-surface Scanning Imaging Inspection System

The intelligent detection system of train chassis uses high-definition color line scanning, car number recognition and other technologies to detect the moving railway wagons in real time, form high-definition color images, and segment them according to the carriages to achieve the effect of real restoration of the scene. At the same time, AI technologies such as deep learning and machine vision are used to complete the detection and annotation of vehicle problem items. After the inspection is completed, the system automatically generates the inspection report, which is convenient for archiving and analysis.

在线订购


Product Description:

    The train chassis intelligent detection system uses high-definition color line matrix scanning, car number recognition and other technologies, real-time detection of moving railroad wagons, forming high-definition color images, and segmentation by carriage, to achieve the effect of real restoration of the scene. At the same time the use of deep learning, machine vision and other AI technology, complete the detection and labeling of the vehicle problem items. After the inspection, the system automatically generates the inspection report, which is convenient for archiving and analysis. Through the use of this product, can solve the manual cargo inspection workload, low efficiency and traditional video cargo inspection image blurred, playback difficulties, no intelligent tips and other issues.

    This product is the first to introduce artificial intelligence detection into the field of train inspection, so that the inspection operation from "can see, see clearly" upgraded to "can see, will think", opened the "machine inspection" instead of "human inspection" new era!

At present, the train scanning system developed and produced by Nanjing Suoan has obtained a number of patents and software copyrights. And there are real-world project cases, which are recognized by relevant departments.

Invention Patent No.:      A Train Multi-surface Scanning Imaging Inspection System 2021115899015)

Appearance Patent No.: Train Multi-surface Scanning and Imaging System (TMSS) 2021304824694,

Utility Patent No.:            A Vehicle Top Scanning Device 2021232713883,

                                        A vehicle side scanner device that matches the height of the vehicle for automatic lifting and lowering 2021232727405,


Vehicle multi-angle scanning imaging device


Train multi-angle scanning imaging device (with automatic sliding cover function for the undercarriage scanning belt)


Application Scenario:

Anti-hiding, anti-smuggling and anti-smuggling inspections at customs and railroad ports,

Train production inspection and maintenance inspection section,

Vehicle inspection station full vehicle inspection,

Vehicle leasing and other places vehicle quality and driving safety inspection.


Function overview:

1, the vehicle multi-side simultaneously high-definition full width complete scanning imaging, and synchronous high-definition multi-view panoramic surveillance video archive retention;

2. The electric slide is synchronized with the image acquisition camera on the side of each vehicle for uniform image acquisition to ensure the integrity of the scanned image and 4K ultra-high-definition imaging, which can detect 0.5mm fine substances or abnormal features;

3, equipped with dust and snow detection, can automatically heat and dust, free from the impact of dust and snow climate environment;

4, intelligent full view side and roof lighting and side or roof 180 degree panoramic imaging;

5, the configuration of temperature control system can alarm linkage heat dissipation, anti-fog and anti-condensation;

6, can integrate license plate, car number, box number and other recognition, and can support multiple brands of car under, license plate and other acquisition camera access, easy system integration;

7, can collect the panoramic view of the security lane and the roof, the two sides of the car and the chassis of the multi-channel video, can be intelligent photo and associated save;

8, can integrate security personnel information and vehicle detection and evaluation information and associated record query; It can enable cooperative work such as abnormal alarm linkage sound and light alarm after intelligent judgment;

9. Multiple lanes can be integrated display and upload to the central management platform;

10, can run under domestic operating system, embedded system environment;

11, support multi-language interface switching.



Characteristic advantage:

1, the vehicle multi-side simultaneously high-definition full width complete scanning imaging, and synchronous high-definition multi-view panoramic surveillance video archive retention;

 2. The electric slide is synchronized with the image acquisition camera on the side of each vehicle for uniform image acquisition to ensure that the scanned image is complete and clear.

列车扫描界面 处理版.jpg


Product Features:

High-definition real-time monitoring

a, high-definition full-color: resolution of 8000X2048 or more, color images, can clearly identify 1cm ² of the object.

b, all-weather: not subject to rain, snow, cold, heat and other inclement weather, can be 24 hours of stable operation.

c. Fast response: a train of 50 wagons, 3min can be completed machine inspection.

d. Stable operation: more than 600 sets have been sold nationwide, the average daily downtime of the equipment <5min, O&M service response time <1 hour.

e. Convenient operation.

① automatic control of playback speed; ② support for local zoom in and zoom out

② support for local zoom in and zoom out, display accuracy of 1mm; ③ vehicle number information, vehicle information

③Accurate matching of vehicle number information, vehicle information and cargo information.

④Accurately divide the car to realize one car one map; ⑤Based on the car number, date, cargo information, and the date of the car.

⑤Based on the vehicle number, date, fault alarm and other comprehensive query.

⑥Passing vehicle image playback, passing vehicle record storage for more than 3 months. Hidden Danger Automatic Alarm

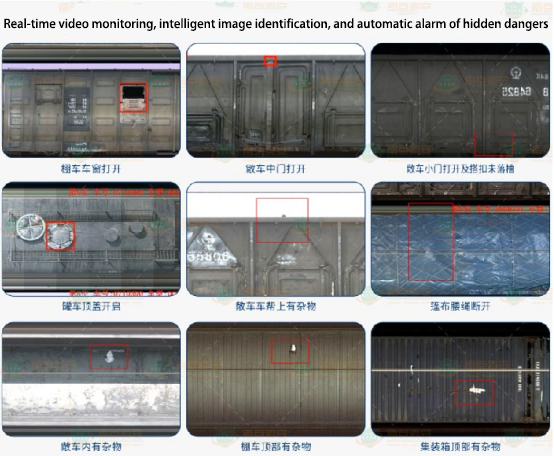

Automatic Alert: After detecting the hidden danger, the system will automatically use the red box to precisely mark the hidden location and give a voice alarm.

Safe smart card control: after the alarm, the system mandatory personnel can be required to confirm the sub to prevent human causes caused by the omission of inspection.



"Railroad Wagon Number Intelligent Identification System is an intelligent system that automatically identifies vehicle information and attributes. It mainly uses image acquisition technology and intelligent recognition technology to realize the intelligent recognition of basic information such as vehicle number, load, weight, volume, change length, etc. Meanwhile, it has rich data interfaces and complete information management functions, and the whole process of automatic opening, real-time monitoring, intelligent recording, without manual assistance, the system has the characteristics of high recognition accuracy, fast computing, and accurate information, and is widely used in freight stations, grouping stations, It can be widely used in cargo stations, grouping stations, special lines, and can also provide information interface for rail and other equipments.

Function:Vehicle information recognition can recognize vehicle number, load, weight, volume, change length and other information accurately.

Axle counting: support automatic axle counting, determine the number of vehicles, combined with vehicle pictures, to avoid mis-matching of vehicle numbers or missing vehicles.

Automatic opening of equipment: the system automatically opens when the vehicle passes the oncoming vehicle start module, saving energy and eliminating the need for manual intervention.

Provide external interface: provide vehicle information interface for third-party software to call.

Support multiple vehicle types: applicable to open trucks, shed trucks, tank trucks, panel trucks and other types of vehicles.
