产品信息

便携式无线双向车底扫描仪是一套集自动检测车辆、并对车辆底盘进行图像采集、显示、拼接、抓拍汇总、比对报警、自动环控为一体的车辆安检系统。

该系统能有效防止车底藏匿炸弹、武器、生化危险品、危险人物出入政府机关、军事管理、银行库区、车站码头等重要安全保护场所；

防止车底携带毒品与枪支弹药等危险品、非法走私物乃至可疑人物通过海关、边防检查站，

防止危险分子驾车冲闯国家大型会议、运动赛事、演唱会、展会、体育馆等临时安检人群密集场所

防止被关押人员潜逃出监狱、看守所、戒毒所等；

同时可对列车、汽车等车辆底盘进行交通安全检测及车况质量检查评估等应用。

Product Information

Portable wireless two-way vehicle chassis scanner is a set of automatic vehicle inspection, and vehicle chassis image acquisition, display, splicing, capture summary, comparison alarm, automatic ring control as one of the vehicle security system.

The system can effectively prevent the vehicle chassis to hide bombs, weapons, biochemical hazards, dangerous people in and out of government agencies, military management, bank storage areas, stations and terminals and other important security protection places;

Preventing the vehicle chassis from carrying dangerous goods such as drugs and firearms and ammunition, illegal smuggled goods and even suspicious persons through customs and border checkpoints.

Preventing dangerous elements from driving into large national conferences, sports events, concerts, exhibitions, stadiums and other temporary security crowded places.

Prevent detainees from absconding from prisons, detention centers and drug rehabilitation centers;

At the same time, it can be used for traffic safety inspection and vehicle condition quality inspection and evaluation of trains, cars and other vehicle chassis.

应用场景：

1、国家大型会议、运动赛事、演唱会、展会、体育馆等活动的车辆出入口的临时安全防范、反恐检查；

2、监狱、看守所、戒毒所等的出入口防逃检查；

3、机场、政府、银行库区、保税区、大使馆、港口码头、车站、军队、公安等重点场所的出入口、停车场的反恐防夹带检查；

4、海关、边检口岸的检查卡口临时的防走私、反偷渡检查；

5、交通安全检查站、车辆检测中心、4S店维修车间、新能源换电站等的车辆性能检测。

Application Scenario：

1、Temporary security prevention and anti-terrorism inspection of vehicle entrances and exits of large national conferences, sports events, concerts, exhibitions, stadiums and other activities;

2, Prisons, detention centers, drug rehabilitation centers and other entrances and exits to prevent escape inspection;

3, anti-terrorism anti-entrapment inspection of entrances and exits, parking lots of key places such as airports, governments, bank depots, bonded areas, embassies, ports and terminals, stations, armies, and public security;

4, Customs, border control ports of the checkpoint temporary anti-smuggling, anti-smuggling checks;

5, Vehicle performance inspection at traffic security checkpoints, vehicle testing centers, 4S store maintenance workshops, new energy exchange stations, etc.

产品介绍

设备尺寸：400*600*55mm

传输方式：无线WIFI

拍摄车辆宽度：大于4000mm

拍摄长度：支持无限长车辆扫描

扫描方向：双向扫描

视场角度：180º

图片类型：彩色JPG格式；

车底图片分辨率：2048*n

图片失真：小于5%；

防尘防水等级：IP68(完全防尘、防水浸)

图象采集方式：车辆检测系统自动触发

照明组件：顶部、两侧四条LED补光灯条自动补光

车底成像设备表面结构采用方形高强度军用特级铝制品；

底盘成像设备多重密封设计：防尘、防潮、防雾；

拍摄车底高度：小于3500mm（适应不同底盘高度的车辆）

车辆通过速度：（建议）1-120Km/h，正常情况下出入口车速控制≦30KM/h；

车底成像设备：采用高强度抗压设计；车底设备承重：≥30吨；

Product introduction

Equipment Size: 400*600*55mm

Transmission mode: wireless WIFI

Scanning vehicle width: greater than 4000mm

Scanning length: support unlimited length vehicle scanning

Scanning direction: bidirectional scanning

Field of view angle: 180º

Picture type: color JPG format;

Underbody picture resolution: 2048*n

Picture distortion: less than 5%;

Dustproof and waterproof grade: IP68 (completely dustproof and waterproof immersion)

Image acquisition mode: automatically triggered by vehicle detection system

Lighting components: top, both sides of the four LED fill light bar automatically fill light

Imaging equipment surface structure using square high-strength military special grade aluminum products;

Imaging equipment multiple sealing design: dust-proof, moisture-proof, anti-fog;

Shooting height of the undercarriage: ＜3500mm (to adapt to different chassis height of the vehicle)

Vehicle passing speed: (recommended) 1-120Km/h, under normal circumstances the entrance and exit speed control ≦ 30KM/h;

Imaging equipment: the use of high-strength compression-resistant design; equipment load-bearing: ≥ 30 tons;

     产品特点：

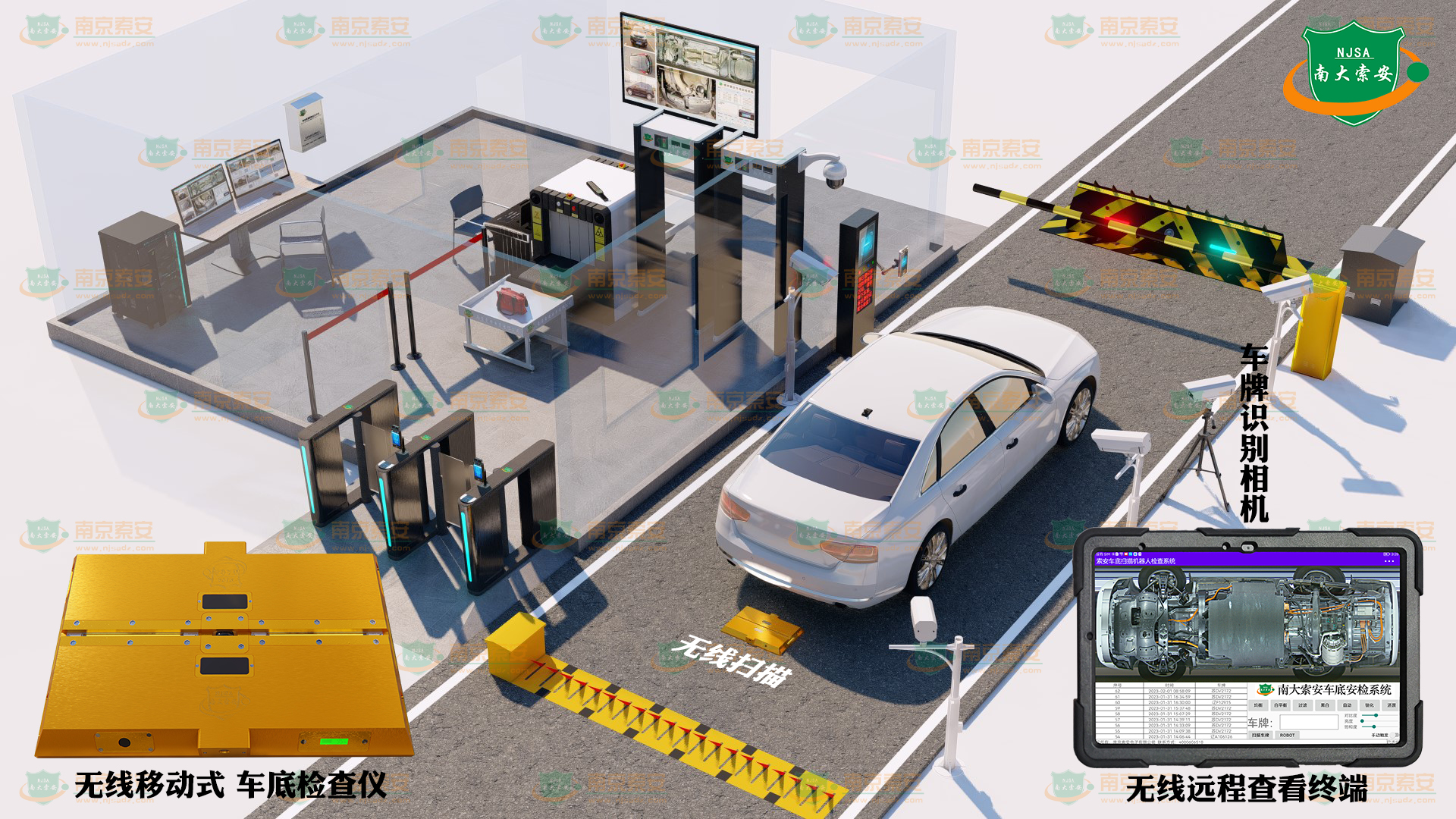

1.手提箱装载，移动便携，免施工预埋免安装，可直接摆放于路面，迅速布防，对车底违禁物或车况进行安全检查。而传统的移动扫描需配置航空箱，现场接线安装布置，并非真正做到移动便携。

2.终端PAD进行远程查验，更加轻便易，连接扫描仪前端发出的WiFi信号，进行远程车底检查，将前方车底检查图像传输到PAD终端，可以让现场安检人员快速便捷地进行安全检查，大大提高了安检工作效率，增强了安全管控的科技水平。

3.自动车牌识别并绑定信息，车辆驶过完成车底扫描后，对被检车辆底部图像进行采集，立即在平板上显示高清彩色完整的车辆底盘图像。以确定车辆底部是否加装违禁物品或夹带管控物品、藏匿涉罪人员或车辆进行了非法改装或存在安全行驶的隐患。

4.双向扫描，该设备支持进方向与出方向双向扫描，可于平板终端查看车辆行驶方向

5.车底检查仪配置车辆自动检测模块，可以自动检测来车并自动对车底补光。也可在光线不充足的情况下，自动给各摄像机补光，让车底检查更清晰。同时补光亮度可以调节。

6.历史对比，同车牌车辆多次查验，系统自动弹出对比框进行历史图像比对，提高车底检查的效率与准确度

7.各次对车辆的检查结果可查询，信息包括车牌号码、来车日期时间、来车方向、受检时的车底图像等信息。检查结果可反复观看，并保存留档。可本机存储也可以云端上传、远程监管与回查。

Product Features：

1. Suitcase loading, mobile and portable, free of construction pre-embedded free installation, can be placed directly on the road, rapid arming, the vehicle chassis clamping prohibited substances or vehicle conditions for security checks. The traditional mobile scanning need to configure air box, on-site wiring installation layout, not really mobile and portable.

2. Terminal PAD for remote inspection, more lightweight and easy to connect the scanner front-end WiFi signals, remote vehicle chassis inspection, the front vehicle chassis inspection images transmitted to the PAD terminal, which allows on-site security personnel to quickly and conveniently carry out security checks, greatly improving the efficiency of security work, and enhance the level of security control technology.

3. License plate recognition and binding information, the vehicle drives through the completion of the vehicle chassis scanning, the bottom of the vehicle being inspected image acquisition, immediately on the flat panel to display high-definition color complete vehicle chassis image. To determine whether the bottom of the vehicle to add prohibited items or entrainment control items, hiding people involved in crime or vehicles have been illegally modified or there are hidden dangers of safe driving.

4. Bidirectional scanning, the device supports inbound and outbound direction bidirectional scanning, can be viewed in the flat terminal vehicle driving direction

5. The inspector is equipped with automatic vehicle detection module, which can automatically detect incoming vehicles and automatically fill in the light underneath the vehicle. Can also be in the case of insufficient light, automatically fill light to the camera, so that the vehicle chassis inspection more clearly. At the same time, the brightness of the fill light can be adjusted.

6. Historical comparison, the same license plate vehicle inspection for many times, the system automatically pop-up comparison box for historical image comparison, to improve the efficiency and accuracy of the vehicle chassis inspection

7. Each time the vehicle inspection results can be queried, the information includes license plate number, the date and time of the incoming vehicle, the direction of the incoming vehicle, the vehicle chassis image when inspected and other information. Inspection results can be viewed repeatedly and saved for archiving. It can be stored locally or uploaded on the cloud, and remotely supervised and checked back.
