Product Information

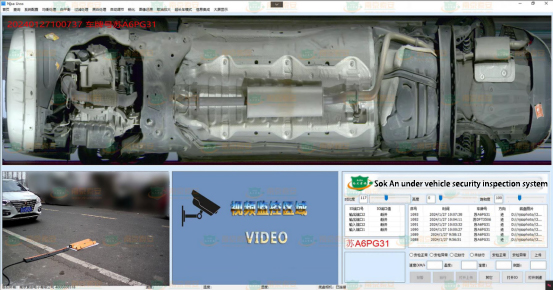

Low obstacle ultra-high-definition buried fixed under vehicle scanning system is a set of automatic detection of the vehicle chassis, and the under vehicle image acquisition, display, splicing, capture summary, compare the alarm, automatic loop control as one of the vehicle security system.

The system can effectively prevent under vehicle the hidden bombs, weapons, biochemical hazards, dangerous people in and out of government agencies, military management, bank warehouses, stations and terminals and other important security protection places;

Preventing the undercarriage of dangerous goods such as drugs and firearms and ammunition, illegal smuggled goods and even suspicious persons from passing through customs and border checkpoints.

Prevent detainees from absconding from prisons, detention centers, drug rehabilitation centers and so on;

At the same time, it can be applied to the chassis of trains, automobiles and other vehicles for traffic safety testing and quality inspection and assessment of vehicle conditions.

Application Scenario：

1，Escape prevention inspection at the entrances and exits of prisons, detention centers and drug rehabilitation centers;

2，Airports, government, bank district, embassies, ports, docks, stations, military, public security and other key places; Parking lot entrances at key locations; Security precautions and anti-terrorism checks for vehicle entrances and exits of large conferences, sports meetings and other activities;

3，Customs, border inspection bayonet anti-smuggling, anti-smuggling inspection;

4，Traffic safety checkpoints, vehicle testing center, 4S shop maintenance workshop, new energy power station and other vehicle performance testing line.

Product introduction

1. Shooting vehicle width: ≥4500mm; field of view angle: ≥180º;

2. Shooting vehicle underbody height: 0~4500mm (adapted to vehicles with different chassis height);

3. Vehicle passing speed: (recommended) 1-120Km/h, under normal circumstances, the entrance and exit speed control ≦ 30KM/h;

4. Image acquisition method: automatically triggered by vehicle detection system;

5. Picture type: color JPG and other formats; picture distortion: less than 5%;

6.Under vehicle picture resolution: 4096 * n; imaging pictures greater than 40 million pixels;

7. Under vehicle imaging display time: < 1 second; image storage or loading time: < 1 second;

8. Under vehicle imaging equipment: the use of high-strength anti-roller and monomer sealing design; equipment weight: ≥ 55 tons;

9. Lighting components: ≥ 6 single sealed LED surface light source; service life: ≥ 80000h;

10. Under vehicle imaging equipment surface structure using square high-strength military-grade steel plate shroud; under vehicle imaging equipment multiple sealing design: waterproof, dustproof, moisture-proof, anti-fog; dustproof and waterproof grade: IP68 (completely dustproof, water immersion);

11. Operating system support: WINDOWS 7, 10.

12. System interface support language: can be customized for global users of Chinese, English, Russian, German, French, Arabic and other multilingual version;

13. With a full range of vehicle monitoring capture and video recording, multi-standard license plate recognition, automatic detection of the state display, automatic information broadcasting and traffic light indicators, identification of human evidence information, a full range of imaging comparisons, human-vehicle license records associated with the synthetic display, road gates and anti-terrorism barricade linkage control, automatic identification of white and black lists, a variety of high and low chassis imaging detection, ultra-long car display mode switching, a wealth of image post-processing functions, vehicle weight detection and box number. Functions, vehicle weight detection and box number identification, support for life detectors and vehicle X-ray machine testing information integration;

14. Support a variety of roadway management modes: one-way lanes, in and out of mixed lanes, in and out of independent two-way lanes, multi-lane, and support for the entry and exit of vehicle information management;

15. Working environment: the system has an automatic environment temperature and humidity detection and automatic adjustment control system, can be in -50 ℃ ~ 85 ℃ indoor and outdoor all-weather environment under normal work.

Function overview：

1. 4K ultra HD complete underbody imaging, can detect 0.5mm fine substances or features;

2. Can automatically prevent rolling self-protection type lifting, can automatically remove dust, rain and snow and other debris;Enhanced fill light can effectively increase lighting for large high-chassis vehicles；

3. The installation height of the ground is 2CM and the two-way gentle slope type can pass the inspected vehicle without impact;

4. Intelligent full-view underbody lighting and 180-degree panoramic imaging of chassis;

5. All 304 stainless steel finishing, resist heavy car rolling more than 56 tons, and can be waterproof IP68 soak in water for 60 hours, equipped with temperature control system can alarm linkage heat dissipation, fog and condensation;

6. Can integrate license plate, car number, box number and other recognition, and can support multiple brands of car under, license plate and other acquisition camera access, easy system integration;

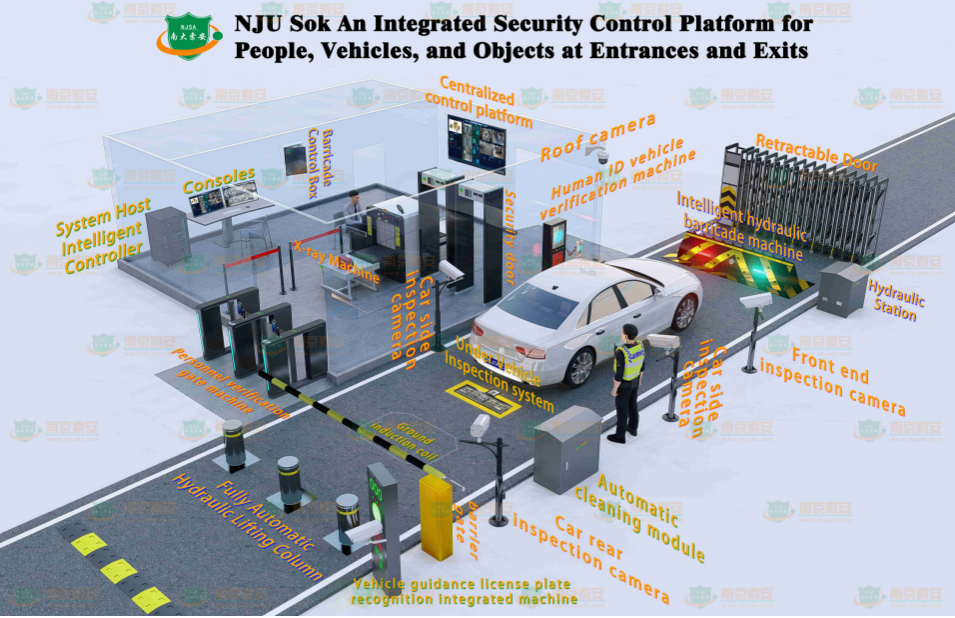

7. Can collect the panoramic view of the security lane and the roof, the two sides of the car and the chassis of the multi-channel video, can be intelligent photo and associated save;

8. Can integrate the vehicle personnel information and items security information and associated record query;

9. It can enable the abnormal alarm linkage gate, barricade and other peripheral equipment to work together after intelligent judgment;

10. Multiple lanes can be integrated display and upload to the central management platform;

11. Can run under domestic operating system, embedded system environment;

12. Support multi-language interface switching.

Characteristic advantage：

1. 4K ultra HD complete bidirectional scanning imaging;

2. Automatic anti-rolling self-lifting protection; Large high-chassis vehicles enhanced fill lighting imaging clearer；

3. Automatic dust removal to ensure clear imaging;

4. Intelligent map abnormal alarm;

5. Multi-channel centralized management facilitates platform integration.
