The JZ600-D series vehicle undercarriage security check monitoring and photography system is a vehicle security check management system that integrates automatic image acquisition, display, control, video recording and capture of vehicle undercarriages. The system can effectively prevent bombs, weapons, biochemical dangerous goods and dangerous people from entering and leaving important places hidden underneath the vehicle; prevent drugs, illegal smuggled goods and even illegal immigrants from being carried underneath the vehicle through the checkpoint.

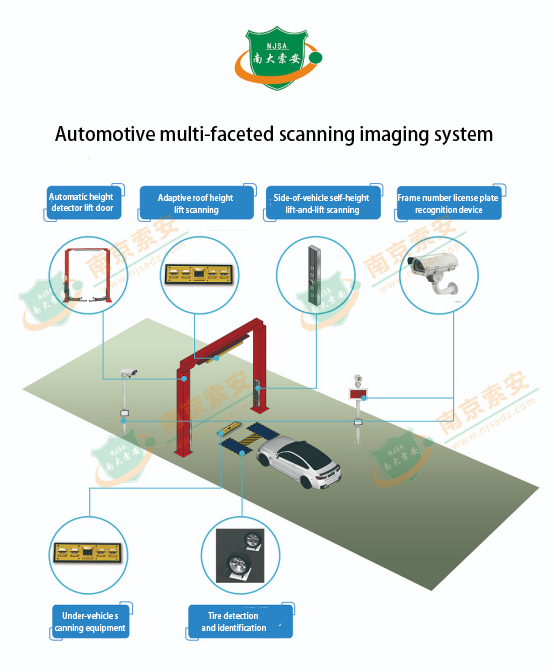

The new Soan solution provides real-time HD digital monitoring and video capture functions for underneath, roof, front, rear and left and right parts of the vehicle, providing image capture scanning synthesis and generation for all directions of the body. (According to the requirements of the management of the prison and the chokepoint, the roof, front, back, left and right side of the vehicle can be photographed when the vehicle is being inspected in the security check area, and the image of the vehicle can be combined with the image of the underbody scanning and imaging to form a large comprehensive image of the vehicle security check, and the vehicle licence number, the reason for the work, the driver's name and driving license, the staff responsible for the check, etc. can be selected. (name and driving licence, staff responsible for inspection and registration and other relevant information stored jointly, one by one); at the same time can automatically provide the inspected vehicle by license plate recognition saved under the car, roof, side of the car monitoring video footage, under the car monitoring capture images, under the car line array scan HD wide complete picture, license plate capture images, the roof and the vehicle front, rear and left and right parts of the high-definition picture.

Using computer vision technology to achieve high definition and complete vehicle chassis imaging; Using high-definition color scanning imaging, can automatically detect through the vehicle, the Angle of view is 180°, the viewing width of the car bottom is not less than 200CM and the image is clear, the output image is without distortion.

Support the inspection of ultra-long vehicles (length is not limited), for ultra-long vehicles can be dragged and enlarged through the image preview window to view the entire vehicle chassis; When the vehicle passes, the system automatically displays high-definition and complete vehicle chassis images, and the information collected at the bottom of the large and small vehicles is unobstructed.

Real-time under and roof multi-directional monitoring functions: maximum access to 9 high-definition under, roof, front, back, left, right and other scene images; Screen segmentation mode: 1, 4, 5, 16 optional; The screen can be enlarged;

Scene video function: a variety of video trigger modes, such as manual recording, timing recording, input trigger recording; Video playback.

Automated detection: Various detection processes can be programmed according to user needs, and a high degree of automation can be achieved. The optional license plate recognition module can automatically recognize one or two of the scene images.

Image type: Color JPG format; Image distortion: less than 5%;

Image resolution: better than 0.5mm/ pixel; Vertical resolution ≥2048/4096/6144/8192 pixels (camera selection can be configured according to user requirements);

Car bottom imaging display time: < 0.3 seconds; Image storage or loading time: < 0.3 seconds;

Supported operating system: WINDOWS 7, 10.

System interface support languages: Chinese, English, Russian, German, French, Arabic and other multi-language versions can be customized for global users;

Support a variety of crossing management modes: one-way lane, in and out of the mixed lane, in and out of the independent two-way lane, multi-lane, and support entry and exit vehicle information management;
