产品简介：

南京索安X1001D(双源双视角)多能量,双视角X射线检重设备。采用两组独立的X光源检貢系统,从水平和垂直两个方向同时高谏釆集園像数据,被测物体即使仼意角度摆放,都能立体输岀物体轮廓,有效辨识物体形状,解决由于遮挡导致的漏检,误报问题。

Product Description:

Nanjing Suoan X1001D (dual source, dual perspective) multi-energy, dual-view X-ray inspection equipment. The use of two independent X-ray source detection system, from the horizontal and vertical two directions at the same time to collect the high concentration of image data, the object to be measured even if the intentional angle of placement, can be three-dimensional transmission outline of the object, effective identification of the object shape, to solve the problem of missed detection, false alarm caused by the blocking.

产品优势：
真实参数 :        产品实际使用中的各项性能参数与公安部出具的检测报告完全一致,检测报告结果更真实可信。

稳定可靠 :        产品生产过程严格按照ISO9001质量管理体系进行管控,通过严格的高低温试验、湿热试验和震动试验,确保产品无故障连续运行10000小时以上。
稳固机架 :        选用国标304不锈钢、2-3mm国标冷轧板及方通钢材,融合先进的工艺,结构稳定牢圄、防锈防防线缆损伤。

Product advantages:

Real parameters :       The performance parameters of the product in actual use are exactly the same as the test report issued by the Ministry of Public Security, and the test report results are more real and credible.

Stable and reliable:    The product production process in strict accordance with ISO9001 quality management system control, through the strict high and low temperature test, damp heat test and vibration test, to ensure that the product                                     trouble-free continuous operation of more than 10000 hours.

Stable rack:                The national standard 304 stainless steel, 2-3mm national standard cold-rolled plate and square steel, the integration of advanced technology, stable and firm structure, rust and cable damage prevention.

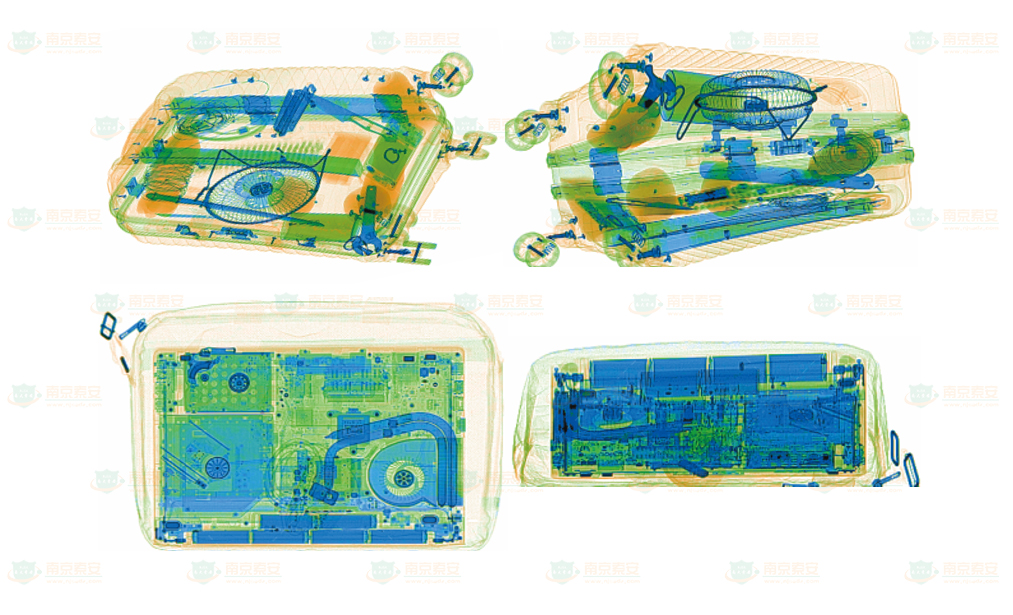

检测效果图：

技术指标：
基本参数                         1000mm(宽)*1000mm(高)

传送带速度                       0.22m/s
最大负载能力                     200kg
穿透力                           底照视角:大于40mm钢板         侧照视角:大于40mm钢板
线分辨力                         底照视角:Φ0.0787mm金属丝     侧照视角:Φ0.0787mm金属丝
穿透分辨力                       底照视角:Φ0.202mm金属丝      侧照视角:Φ0.160mm金属丝
空间分辨力                       底照视角:水平:Φ1.mm,         垂直:Φ10mm    侧照视角:水平:Φ1.0mm,   垂直:Φ1.0mm

Technical indexes:

Basic parameters                               1000mm(width)*1000mm(height)

Conveyor speed                                 0.22m/s

Maximum load capacity                    200kg

Penetrating power                              Bottom illumination view: more than 40mm steel plate       Side illumination view: more than 40mm steel plate

Line resolution                                   Bottom view:Φ0.0787mm wire          Side view:Φ0.0787mm wire

Penetration resolution                        Bottom view:Φ0.202mm wire            Side view:Φ0.160mm wire

Spatial resolution                               Bottom view: Horizontal:Φ1.mm,       Vertical:Φ10mm         Side view: Horizontal:Φ1.0mm,       Vertical:Φ1.0mm

辐射安全：

单次检直剂量                   小于3.1uGy

世露射线剂量率                 小于0.2uGy/h(在距设备外表面5cm的任意处测试均符合且优于国内外健康安全标准)
高效防辐射                     采用双层错缝、耐磨、结实的铅帘,超厚2-5mm铅板确保设备安全可靠

Radiation safety:

Single inspection straight dose              Less than 3.1uGy

Silu radiation dose rate                          Less than 0.2uGy/h (tested at any distance of 5cm from the outer surface of the equipment, it meets and exceeds domestic and international health and safety standards)

Highly effective radiation protection    Double staggered, wear-resistant and sturdy lead curtain and extra thick 2-5mm lead plates are used to ensure the safety and reliability of the equipment.

X射线发生器：

数字接口                        管电压80-160KV(可调),电流0.3-1.2mA(可调)

冷却/工作周期                   密封式油冷/100%

X-Ray Generator:

Digital Interface                                      Tube voltage 80-160KV(adjustable),current 0.3-1.2mA(adjustable)

Cooling/working cycle                            Sealed oil cooling/100%

设备功能：

图像处理功能                    彩色/黑白、局塇、高穿、低穿、超塇、有机物剔除、无机物剔除、反色、加亮、减暗、灰扫、放大、伪彩、有机物塇强、疑物品报警标记、边缘强处理

系统功能                        开机目检、多级用户管理、图像管理、邗P管理、曲线诊断、键盘诊断、设备信息查询、多格式園像导岀、SD操作功能、图像镜像、1-64倍无级放大、放大镜、操作员培训、精准                                  定位过包图像、清空通道提酲、远程操作软件、一键关机、智能滚筒(选配)

Equipment functions:

Image processing functions                   Color/black-and-white, local, high penetration, low penetration, super high penetration, organic rejection, inorganic rejection, inverse color, brightening, darkening, gray sweep,                                                                                               enlargement, pseudo color, organic reactive, suspect alarm mark, strong edge processing

System Functions                                   Power-on visual inspection, multi-level user management, image management, general-purpose management, curve diagnosis, keyboard diagnosis, equipment information query, multi-format                                                                     garden guide out, SD operation function, image mirroring, 1-64 times stepless magnification, magnifying glass, operator training, accurate positioning of overpacked images, emptying the                                                                             channel to raise the effect, remote operation software, one-key shutdown, intelligent roller (optional)

结构设计：

防夹手装置                    通道进出口的皮带下方及接物架独特防夹手设计、安全可靠
立体指示灯                    四角立柱指示灯,全角度及时显示设备工作状态,外形简约美观
人性化设计                    专业键盘,配合符合人体工程学设计的工作台,使用便捷,舒适
优质皮带                      输送带表面钻石纹面印花、使用中更耐切割、耐刮花;3mm厚度更耐拉伸,不易变形;表面防静电处理,使用时不易被污染

Structure design:

Anti-pinch device                                The unique anti-pinching design of the belt under the entrance and exit of the channel and the receiving frame are safe and reliable.

Stereo Indicator                                   Four-cornered column indicator, full-angle timely display of equipment working status, simple and beautiful appearance

Humanized design                               Professional keyboard, with ergonomic design of the table, easy to use, comfortable

Quality belts                                        The surface of the belt is printed with diamond pattern, which is more resistant to cutting and scratching in use; the 3mm thickness is more resistant to stretching and not easily  deformed; the                                                                       surface is antistatic, which is not easily contaminated in use.

安装数据：
外形尺寸(不含接物架)            3916mm(长)*1781mm(宽)*1885.5mm(高)
工作电源                        220VAC(±10%)50±3Hz
功耗                            1.5KW

Installation data:

Overall dimensions (without receiving frame)           3916mm(L)*1781mm(W)*1885.5mm(H)

Working power                                                           220VAC(±10%)50±3Hz

Power consumption                                                    1.5KW
