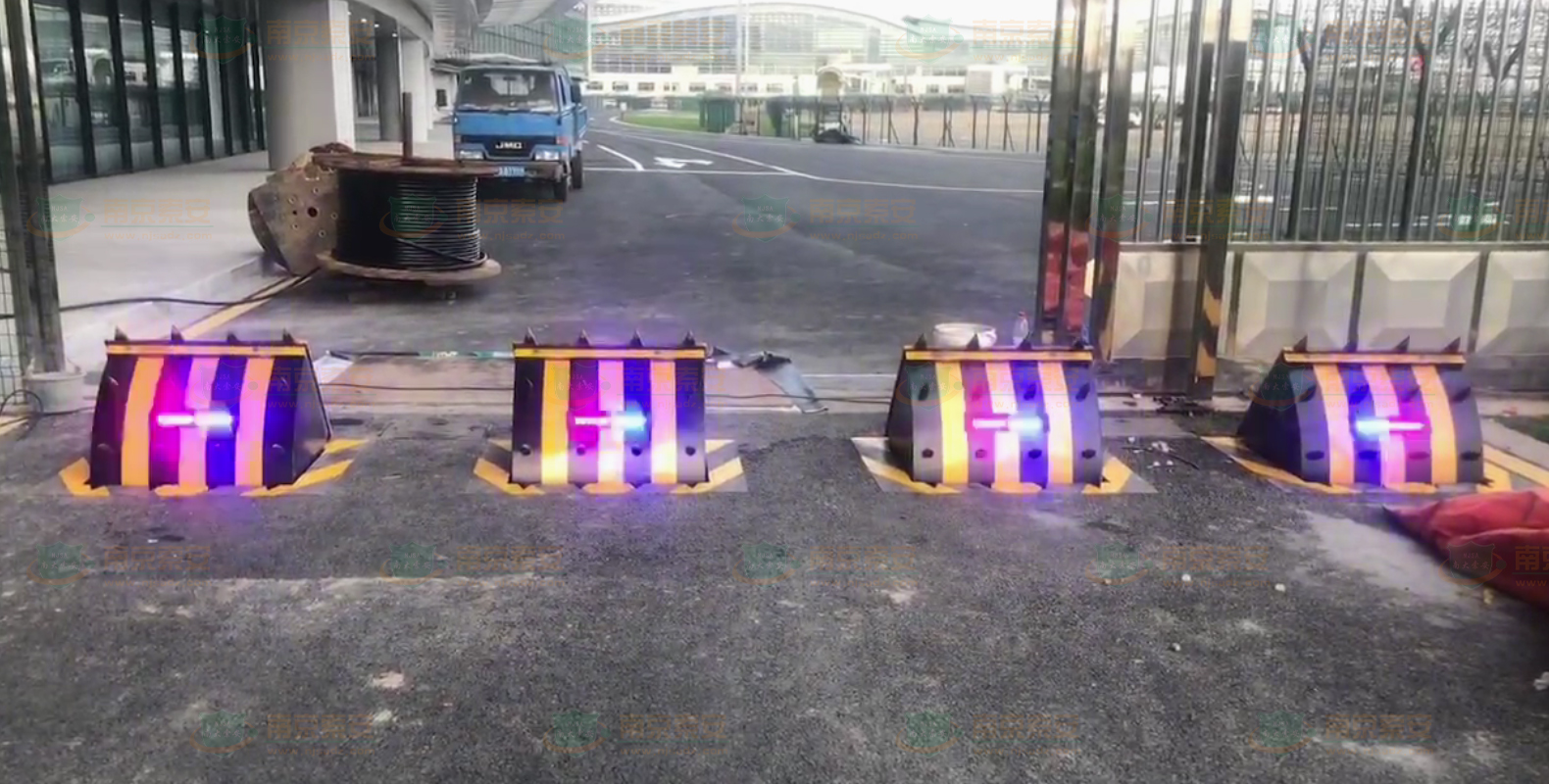

一、路障机产品介绍

1、路障机主要功能是控制道路车辆通行，威慑和和阻止车辆强行通过。我司的该款路障机可以与道闸控制系统等配套使用，可以与我司的车底扫描和车底监控系统联动，也可以单独使用；
2、该款路障机适用于公安边检、监所、机场、部队等行业，具有很高的实用性、可靠性及安全性；该款路障机操作、保养维护十分简单，非常耐用，投放市场以来收到客户的普遍好评。

A.The road block machine products introduction

1、The main function of the barricade machine is to control the road vehicle passage, deter and stop the vehicle from forcing through. Our barricade machine can be used with the road gate control system, can be linked with our undercarriage scanning and undercarriage monitoring system, or can be used alone;

2, the barricade machine is suitable for public security border control, supervision, airports, troops and other industries, has a high degree of practicality, reliability and safety; the barricade machine operation, maintenance and repair is very simple, very durable, since the market has received a generally favorable response from customers.

二、液压路障机技术参数
路障机由路障装置、液压传动装置、自动检控装置三部分组成，可根据客户的需求定制。

B.Hydraulic barricade machine technical parameters

The barricade machine is composed of three parts: barricade device, hydraulic transmission device and automatic inspection and control device, which can be customized according to the customer's needs.

主要技术参数:
1、系统控制：PLC智能驱动电动液压
2、通过压力：可通行整车120吨以下货柜车。
3、供电电源：三相AC380V（控制电压24V）。
4、系统动力功率(w)：不低于3.75KW。
5、上升时间：1-3S（可调）。
6、下降时间：1-3S（可调）。
7、工作温度：-35℃~75℃（适合）。
8、存储环境：-35℃~75℃, 防雨防潮防尘。
9、材质：A3钢20mm、25mm厚，喷防锈底漆。
10、路障机内部器件防护等级：IP68。
11、颜色：多种颜色（可选）
12、机体规格：1100mm(长度可定制)×宽1000×高760mm,升起高度：600mm(可按实际要求订做)

Main technical parameters.

1、System control: PLC intelligent drive electric hydraulic

2、Passing pressure: it can pass the whole truck with less than 120 tons of container truck.

3, power supply: three-phase AC380V (control voltage 24V)

4、System power power (w): not less than 3.75KW

5、Rising time: 1-3S (adjustable)

6、Down time: 1-3S (adjustable)

7、Working temperature: -35℃~75℃ (suitable)

8、Storage environment: -35℃~75℃, rainproof, moistureproof and dustproof.

9、Material: A3 steel 20mm, 25mm thick, spray anti-rust primer.

10、Protection level of internal devices of barricade machine: IP68.

11、Color: a variety of colors (optional)

12, body specifications: (3000mm/3500mm/4000mm/4500mm/5000mm/5500mm) × width 1000 × height 760mm, lifting height: 600mm (can be customized according to actual requirements)

三、我司路障机产品特点：
1、结构坚固耐用，承载负荷大，动作平稳，噪声低。
2、采取PLC控制，系统运行性能稳定可靠，便于集成。
3、路障机与道闸等其它设备进行联动控制，也可以与其他控制设备组合，实现自动控制。
4、在停电的情况下或出现故障时，如路障机处于升起状态需要下降时，可以通过手动操作将升起的路障机盖板回落到水平位置以让车辆通行。
5、采用低压液压驱动技术，整个系统安全性高，可靠稳定。
6、遥控装置：通过无线遥控的方式，刷卡方式，手机远程遥控,车底扫描软件控制、电脑端远程可视控制系统(指挥中心终端远程控制系统,支持互联网通讯、WIFI、3GPRS等控制方式。

C.Our barricade machine product characteristics:

1、Strong and durable structure, large load-bearing, smooth action and low noise.

2、Take PLC control, system operation performance is stable and reliable, easy to integrate.

3、Barricade machine and other equipment such as road gates for linkage control, can also be combined with other control equipment to achieve automatic control.

4、In case of power failure or malfunction, if the barricade machine is in a raised state and needs to be lowered, the raised barricade machine cover can be manually operated to fall back to the horizontal position to allow vehicles to pass.

5、Adopting low pressure hydraulic drive technology, the whole system is highly safe, reliable and stable.

6、Remote control device: through wireless remote control, card swipe, cell phone remote control, undercar scanning software control, computer remote visual control system (command center terminal remote control system, support Internet communication, WIFI, 3GPRS and other control methods.

四、智能配置

1、（可选配）具有智能雷达测速识别功能,系统采用智能雷达来侦测来往车辆的行驶速度。雷达侦测到有车辆开来，如果速度低速且不断减速，结合许可车辆授权情况（即白名单）可视为安全，仅语音提示警卫去注意门口有车来，但不去联动报警与紧急升起路障机。如果外来车辆呈快速且急加速，视为危险行为有冲关可能好，则急促的警报响起，并迅速升起路障机，并抓紧视拍与录像；简单来说，当进入道口的车辆未经安检人员作出放行指令前试图强行通过时，或系统黑名单内的车辆车牌号码，自动弹起防撞墙进行拦截。
2、（可选配）能自动侦测车速，实时电脑软件显示车辆速度、危险等级，路障机上高清监控摄像机传送的图像显示在软件中，危险情况联动自动语音报警播放；
3、（可选配）路障应配置潜水型高清网络智能摄像机，可对控制区域进行人像识别与车辆防冲越侦测，自动报警联动输入输出控制。
4、（可选配）保护功能：可与检测探头、感应线圈等连接，具有防误弹起功能。
5、（可选配）具有与道闸、雷达测速、电动伸缩门等设备的联动功能，具有智能预警发现紧急危险驾驶行为，冲卡时自动弹起，自动拍摄冲卡车辆的车牌号并识别，车辆与人像抓拍上报至指挥中心。
6、（可选配）温控功能：高寒地带可配具有自动加热恒温系统，使系统能在低温雨雪天气状况下正常运行。

D.Intelligent configuration

1、(optional) with intelligent radar speed recognition function, the system uses intelligent radar to detect the driving speed of incoming and outgoing vehicles. Radar detects a vehicle driving, if the speed is low and constantly decelerating, combined with the permit vehicle authorization (i.e., white list) can be considered safe, only voice prompts the guard to pay attention to the door to a car, but not to linkage alarm and emergency raise the barricade machine. If the foreign vehicle is fast and rapid acceleration, as a dangerous behavior may be good to rush off, then a sharp alarm sounds, and quickly raise the barricade machine, and grasp the visual camera and video; in short, when the vehicle entering the crossing without security personnel to make release instructions before trying to force through, or the vehicle license plate number within the system blacklist, automatically pop up the anti-collision wall to intercept.

2、(optional) can automatically detect the speed of the vehicle, real-time computer software shows the speed of the vehicle, the level of danger, the image transmitted by the high-definition surveillance camera on the barricade machine is displayed in the software, the dangerous situation linked to the automatic voice alarm playback;

3、(Optional) The barricade should be equipped with diving type HD network intelligent camera, which can carry out portrait recognition and vehicle anti-rush detection on the control area, and automatic alarm linkage input and output control.

4、(optional) protection function: can be connected with detection probes, induction coils, etc., with anti-mistake pop-up function.

5、(optional) with road gates, radar speed detection, electric expansion gates and other equipment linkage function, with intelligent early warning found emergency dangerous driving behavior, automatic pop-up when punching the card, automatic shooting punching the vehicle license plate number and identification, vehicle and portrait capture reported to the command center.

6、(optional) temperature control function: alpine zone can be equipped with automatic heating thermostat system, so that the system can operate normally in low-temperature rain and snow weather conditions.
