One: Function introduction

1. Accuracy: The highest sensitivity can detect a pin (or 1/2) paper clip in the middle of the door, and it can be detected one hundred times in one hundred times without false negatives and collusion. It can also exclude the influence of belt buckles, leather shoes, bras, etc., and detect copper, aluminum, zinc and other metals above 150 grams or control knives and guns.

2. Six-zone display: The product is divided into six zones, and suspicious objects can be accurately displayed in each zone.

3. Counting the number of people: The two-sided infrared beam can detect the number of people who passed and the number of alarms. If 100 people are taken, 100 people will be counted.

4. Shockproof design: The world's exclusive shockproof design. Stand in the middle of the door and pat the door panels on both sides with your hands. The door will not be falsely reported.

5. Sensitivity adjustment: Sensitivity can be adjusted as required, with a total of 100 levels of sensitivity.

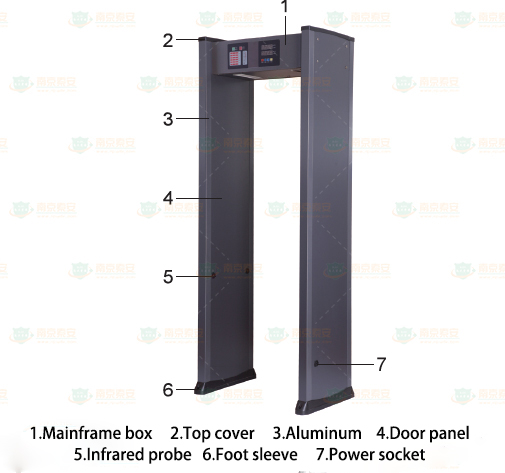

6. Door body material: fireproof board, plus waterproof membrane, there are aluminum alloy pillars inside, which are not deformed, fireproof and moisture-proof.

7. Panel display: High-brightness digital display of the number of people passing and the number of alarms and the alarm location.

8. Sound and light alarm at the same time, and the alarm area can be displayed on the top of the door.

9. The remote control can be selected to control the parameters. Parameters can be password protected, so that unauthorized personnel cannot operate.

10. Reserved communication interface, which can be connected with computer, camera, three rolls, etc.

11. Aiming at the electromagnetic interference of various use environments, the entire system adopts the world's advanced electromagnetic compatibility design, and uses the DSP processor to perform related operations and filtering on the sampling signals of the prohibited items, so that the entire equipment has a strong electromagnetic anti-interference ability.

12. Multiple groups of working frequencies can be set, so that when multiple devices work side by side, they do not interfere with each other.

13. It is harmless to wearers of cardiac pacemakers, pregnant women, magnetic media, etc.

Two: technical standards

★ The electrical appliances refer to the EN60950 safety standard.

★ Radiation is implemented according to EN50081-1 standard.

★ The anti-interference is implemented according to EN50082-1 standard.

★ Strictly implement the current national standards for pass-through metal detectors.

★ Fully passed ISO9001: 2000 quality management system certification.

★ Fully passed the EU CE certification.

Three: technical parameters

1. External power supply: 215V-230V 　　50/60Hz

2. Power consumption: 35W

3. Working environment: -35℃─55℃

4. Total transportation weight: about 95kg

5. Working frequency: adjust according to the installation environment

6. Whole machine weight: about 90kg

7. Dimensions: (mm) 2220 (height) x 820 (width) x 522 (depth)

8. Channel size: (mm) 2000 (height) x 700 (width) x 522 (depth)
