安装于海关车行通道入口处，采集通行车辆的车底图片与车辆信息，供验放人员分析出异常情况，达到反藏匿效果，防止恐怖分子通过车底非法偷渡偷逃、潜藏枪支炸药、走私等。

It is installed at the entrance of the customs car passage to collect the undercarriage pictures and vehicle information of the passing vehicles for the inspection and release personnel to analyze the abnormal situation and achieve the anti-hiding effect to prevent terrorists from illegally smuggling and escaping, concealing guns and explosives, smuggling, etc. through the undercarriage.

    软件著作：2018SR1013342

  Software Publications: 2018SR1013342

产品介绍：

1、采用彩色线阵CCD扫描技术动态方式成像，图像分辨率：≧2048像素.
2、车牌、车底及场景图像显示记录：≥8路且全应采用TCP/IP数字接入便于管理系统平台集成；场景图像显示分辨率：不低于1080P； 场景图像压缩算法：H265；

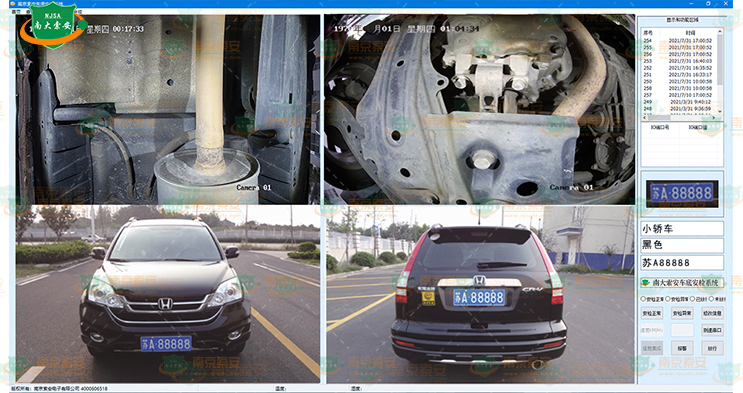

3、车底图像显示方式：大幅面纵向与横向同时显示；
4、底盘成像显示时间：≤1秒；底盘存储或载入时间：≤1秒；

5、车底图像分辨率：≥12000×6144；
6、可拓展功能:可根据管理的要求，将车辆在安检区域接受检查时的车顶、车前、车后、车左测、车右侧等部位进行拍照并与成像后的图像、关联车辆牌照号码、车辆所属单位、办事事由、驾驶员姓名及驾驶证、负责检查登记的工作人员等相关信息绑定存储，记录一一对应，方便信息查询，可集成选配的车辆牌照识别模块与人员信息采集模块；黑白名单；可选配厢号识别模块，对集装箱号进行识别，并关联车牌号存储。

7、系统界面语言：中文、英文可选，操作系统：支持Windows 7、8、10；
8、系统软件具备完备的图像处理功能和外部环境探测与联动调控功能，如环境温度、湿度实时显示、阻车器、防撞柱、道闸等状态显示与控制等；

Product Description:

1.using color line matrix CCD scanning technology dynamic way imaging, image resolution: ≧ 2048 pixels.

2.license plate, undercarriage and scene image display records: ≥ 8 channels and all should be TCP/IP digital access to facilitate the integration of management system platform; scene image display resolution: not less than 1080P; scene image compression algorithm: H265;

3.undercarriage image display mode: large format vertical and horizontal display at the same time;

4.undercarriage imaging display time: ≤ 1 second; undercarriage storage or loading time: ≤ 1 second;

5.undercarriage image resolution: ≥ 12000 × 6144;

6.expandable features: according to the requirements of management, the vehicle in the security area to accept the inspection of the roof, front, back, left test, right side of the car and other parts of the vehicle to take pictures and image after imaging, associated vehicle license plate number, the vehicle belongs to the unit, the reason for business, the driver's name and driver's license, the staff responsible for checking the registration and other related information binding storage, record one-to-one correspondence, convenient information query, can Integration of optional vehicle license plate identification module and personnel information collection module; black and white list; optional compartment number identification module, identification of the container number, and associated license plate number storage.

7.System interface language: Chinese, English optional, operating system: support Windows 7, 8, 10;

8.system software with complete image processing functions and external environment detection and linkage control functions, such as real-time display of ambient temperature, humidity, car blockers, anti-collision pillars, road gates and other status display and control;

广泛应用于：

海关、检查站、口岸、保税区、监所、机场、军事基地、核工业、大使馆、政府等国家重要场所

Widely used in:

Customs, checkpoints, ports, bonded areas, prisons, airports, military bases, nuclear industry, embassies, governments and other important places in the country

需要方案设计（标底设计）、厂家项目授权、项目合作、出口合作请与我们联系。

Need scheme design (bid design), manufacturer project authorization, project cooperation, export cooperation please contact us
