技术参数：

1、系统控制：电动液压驱动；可通过TCP/IP以太网或485通讯便于集成，系统运行性能稳定可靠。路桩与车底安检扫描成像及车牌识别系统和道闸等其它设备可进行联动控制，也可以与其他控制设备组合，实现自动控制。可以根据客户需求灵活配置控制单元，可与车辆检查设备联动。

2、通过压力：最低可通行整车100吨货柜车；

3、供电电源：控制箱220V/380（路桩的控制电压采用安全24V）；

4、机身材质：采用不低于304/316冷拔无缝不锈钢管；柱身直径：219mm，柱身行程高度：≥600mm（可定制升起800mm、1000mm）；,柱身壁厚：6mm、8mm、10mm（可定制）

5、上升时间：小于2-3S（可调）。

6、下降时间：小于1-2S（可调）；且断电采用后备EPS自动升降或手动下降。

7、工作温度：-40℃～+75℃（适合）。

8、柱限位方式：机械可调限位或电子传感器受限控制，稳固方式：水平调节方式。同心同轴调节：可调节，运行噪音：小于20分贝。

9、整体密封防护等级：IP68。

10、升降控制: 近程无线遥控≥100m,线控≥200M；带有防止误操作功能，总线控制：桌面按钮控制，可控制任意桩升降或全部升降功能，可与报警联动系统工作。

11、工作环境: -40℃～+70℃；

Technical parameters:

1、System control: electro-hydraulic drive; can be easily integrated through TCP/IP Ethernet or 485 communication, system operation performance is stable and reliable. Road stakes and undercarriage security scanning imaging and other equipment such as license plate recognition system and road gates can be linked control, can also be combined with other control equipment to achieve automatic control. The control unit can be flexibly configured according to customer needs, and can be linked with vehicle inspection equipment.

2、Through the pressure: the minimum can pass the entire 100 tons of container trucks;

3、Power supply: control box 220V/380 (the control voltage of road pile adopts safety 24V);

4、Body material: the use of not less than 304/316 cold-drawn seamless stainless steel tube; column diameter: 219mm, column travel height: ≥ 600mm (can be customized to rise 800mm, 1000mm);, column wall thickness: 6mm, 8mm, 10mm (can be customized)

5、Rise time: less than 2-3S (adjustable).

6、Descent time: less than 1-2S (adjustable); and power outages using backup EPS automatic lift or manual descent.

7、Operating temperature: -40℃～+75℃ (suitable).

8、Column limit mode: mechanical adjustable limit or electronic sensor restricted control, solid way: horizontal adjustment mode. Concentric coaxial adjustment: adjustable, operating noise: less than 20 dB.

9、The overall sealing protection level: IP68.

10、lift control: proximity wireless remote control ≥ 100m, line contr

行业应用：

监狱、看守所、戒毒所、武警部队、海关、边检、机场、物流、港口码头、金库、核电站、军事基地、政府要害部门、银行等特殊场所的车辆通道控制；有效防止车辆强行冲卡的目的，通过对过往车辆的限制，有效地保障了交通秩序即主要设施和场所的安全。

国家机关和军队等重要单位大门：安装升降防暴路障，可电动、遥控或刷卡等方式控制升降，有效阻止外单位车辆进入和不法车辆闯入。

Industry Applications:

Prisons, detention centers, drug rehabilitation centers, armed police forces, customs, border control, airports, logistics, port terminals, vaults, nuclear power plants, military bases, key government departments, banks and other special places of vehicle access control; effectively prevent the vehicle forcibly rushed to the purpose of the purpose of the card, through the restriction of the passing vehicle, effectively safeguard the order of the traffic that is, the security of the main facilities and venues.

State organs and the army and other important units of the gate: the installation of lifting anti-riot barricades, can be electric, remote control or brush card and other ways to control the lifting, effectively preventing the entry of vehicles from outside the unit and lawless vehicles to break in.

智能配置

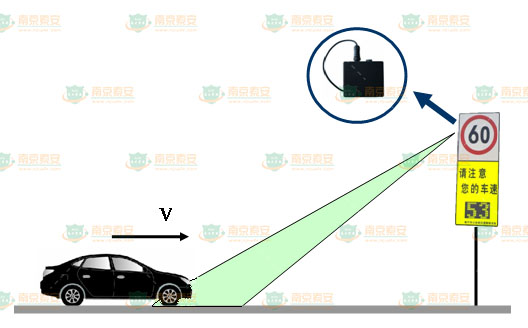

1、（可选配）具有智能雷达测速识别功能,系统采用智能雷达来侦测来往车辆的行驶速度。雷达侦测到有车辆开来，如果速度低速且不断减速，结合许可车辆授权情况（即白名单）可视为安全，仅语音提示警卫去注意门口有车来，但不去联动报警与紧急升起路障机。如果外来车辆呈快速且急加速，视为危险行为有冲关可能好，则急促的警报响起，并迅速升起路障机，并抓紧视拍与录像；简单来说，当进入道口的车辆未经安检人员作出放行指令前试图强行通过时，或系统黑名单内的车辆车牌号码，自动弹起防撞墙进行拦截。

2、（可选配）能自动侦测车速，实时电脑软件显示车辆速度、危险等级，升降柱上高清监控摄像机传送的图像显示在软件中，危险情况联动自动语音报警播放；

3、（可选配）路障应配置潜水型高清网络智能摄像机，可对控制区域进行人像识别与车辆防冲越侦测，自动报警联动输入输出控制。

4、（可选配）保护功能：可与检测探头、感应线圈等连接，具有防误弹起功能。

5、（可选配）具有与道闸、雷达测速、电动伸缩门等设备的联动功能，具有智能预警发现紧急危险驾驶行为，冲卡时自动弹起，自动拍摄冲卡车辆的车牌号并识别，车辆与人像抓拍上报至指挥中心。

6、（可选配）温控功能：高寒地带可配具有自动加热恒温系统，使系统能在低温雨雪天气状况下正常运行。

Intelligent configuration

1, (optional) with intelligent radar speed recognition function, the system uses intelligent radar to detect the driving speed of incoming and outgoing vehicles. Radar detection of vehicles coming, if the speed is low and constantly decelerating, combined with the permit vehicle authorization (i.e., white list) can be considered safe, only voice prompts the guard to pay attention to the door to a car, but not to linkage alarm and emergency raise the barricade machine. If the foreign vehicle is fast and rapid acceleration, as a dangerous behavior may be good to rush off, then a sharp alarm sounds, and quickly raise the barricade machine, and grasp the visual camera and video; in short, when the vehicle entering the crossing without security personnel to make release instructions before trying to force through, or the vehicle license plate number within the system blacklist, automatically pop up the anti-collision wall to intercept.

2, (optional) can automatically detect the speed of the vehicle, real-time computer software shows the speed of the vehicle, the level of danger, lift the image transmitted by the HD surveillance camera on the column is displayed in the software, the dangerous situation linked to the automatic voice alarm playback;

3, (optional) barricades should be configured with diving HD network intelligent cameras, can control the area for portrait recognition and vehicle anti-rush detection, automatic alarm linkage input and output co

需要方案设计（标底设计）、厂家项目授权、项目合作、出口合作请与我们联系

Need scheme design (bid design), manufacturer project authorization, project cooperation, export cooperation please contact us
