产品信息

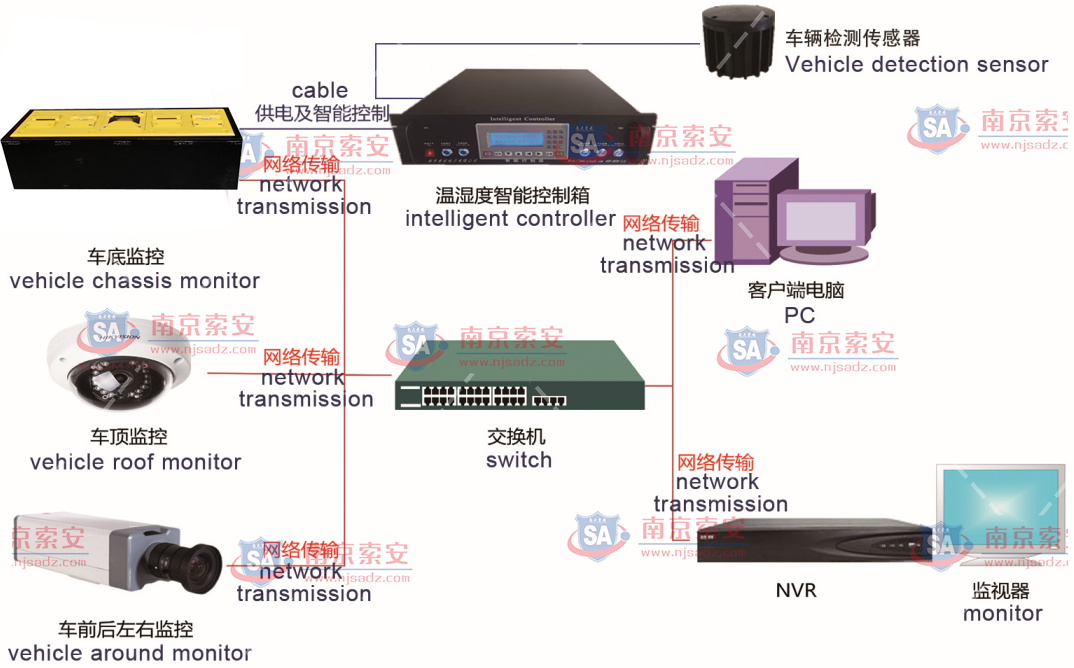

高配固定地埋式车底监控拍照系统是一套集自动检测车辆、并对车辆底盘进行图像采集、显示、拼接、抓拍汇总、比对报警、自动环控为一体的车辆安检系统。

该系统能有效防止车底藏匿炸弹、武器、生化危险品、危险人物出入政府机关、军事管理、银行库区、车站码头等重要安全保护场所；

防止车底携带毒品与枪支弹药等危险品、非法走私物乃至可疑人物通过海关、边防检查站，

防止被关押人员潜逃出监狱、看守所、戒毒所等；

同时可对列车、汽车等车辆底盘进行交通安全检测及车况质量检查评估等应用。

Product Information

Highly equipped with fixed in-ground vehicle undercarriage surveillance camera system is a set of automatic detection of the vehicle chassis, and the vehicle chassis image acquisition, display, splicing, capture summary, compare the alarm, automatic loop control as one of the vehicle security system.

The system can effectively prevent the car underneath the hidden bombs, weapons, biochemical hazards, dangerous people in and out of government agencies, military management, bank warehouses, stations and terminals and other important security protection places;

Preventing the undercarriage of dangerous goods such as drugs and firearms and ammunition, illegal smuggled goods and even suspicious persons from passing through customs and border checkpoints.

Prevent detainees from absconding from prisons, detention centers, drug rehabilitation centers and so on;

At the same time, it can be applied to the chassis of trains, automobiles and other vehicles for traffic safety testing and quality inspection and assessment of vehicle conditions.

应用场景：

1、国家大型会议、运动会、展会等活动的车辆出入口的临时安全防范、反恐检查；

2、监狱、看守所、戒毒所等的临时出入口防逃检查；

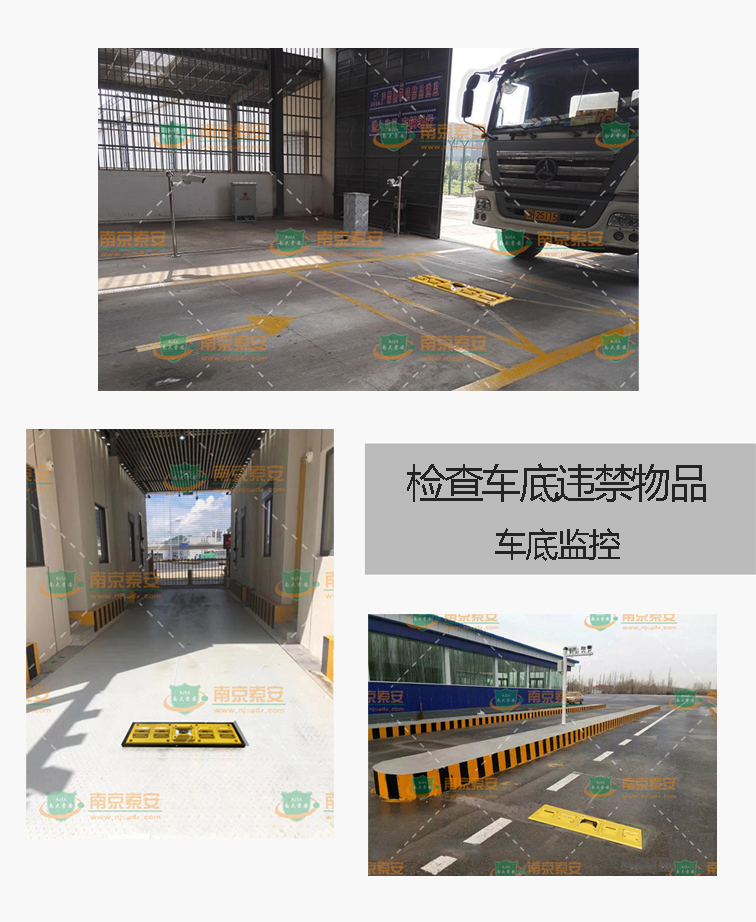

3、机场、政府、银行库区、保税区、大使馆、港口码头、车站、军队、公安等重点场所的出入口、停车场的反恐防夹带检查；

4、海关、边检口岸的检查卡口的临时防走私、反偷渡检查；

5、交通安全检查站、车辆检测中心、4S店维修车间、新能源换电站等的车辆性能检测。

Application Scenario：

1. Temporary security prevention and anti-terrorism checks at the entrances and exits of vehicles for large national conferences, games, exhibitions and other events;

2, The temporary entrance and exit of prisons, detention centers, drug rehabilitation centers, etc. to prevent the escape check;

3, Anti-terrorism anti-entrapment inspection of entrances and exits, parking lots of key places such as airports, governments, bank depots, bonded areas, embassies, port terminals, stations, military and public security;

4, Customs, border control ports of the checkpoint temporary anti-smuggling, anti-smuggling checks;

5, Vehicle performance inspection at traffic security checkpoints, vehicle testing centers, 4S store maintenance workshops, new energy exchange stations, etc.

功能概述：

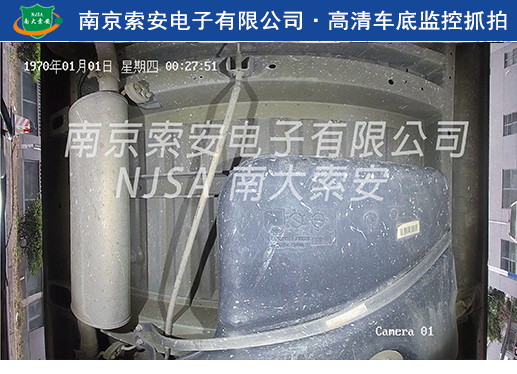

1、400万超高清完整车底过程视频或拍照记录

2、后期可将车底监控无缝升级为车底扫描

3、可自动防碾压自保护式升降，可自动清除沙尘、雨雪等杂物；

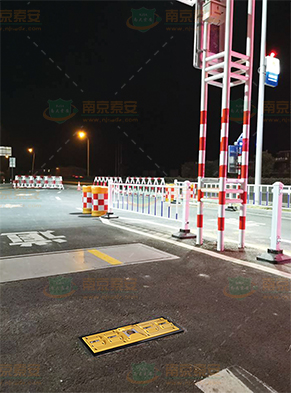

4、地面2CM的安装高度并双向缓坡式可低障碍通行受检车辆无撞击影响；

5、智能全视角车底补光照明及车底盘180度全景监控；

6、全警示橙色醒目，也可全304不锈钢精加工，抗重车碾压56吨以上，并可防水IP68泡水中60小时，配置完备的温控系统可报警联动散热、除雾防冷凝；

7、可集成车牌、车号、箱号等识别，并可支持多个品牌的车底、车牌等采集相机接入，便于系统集成；

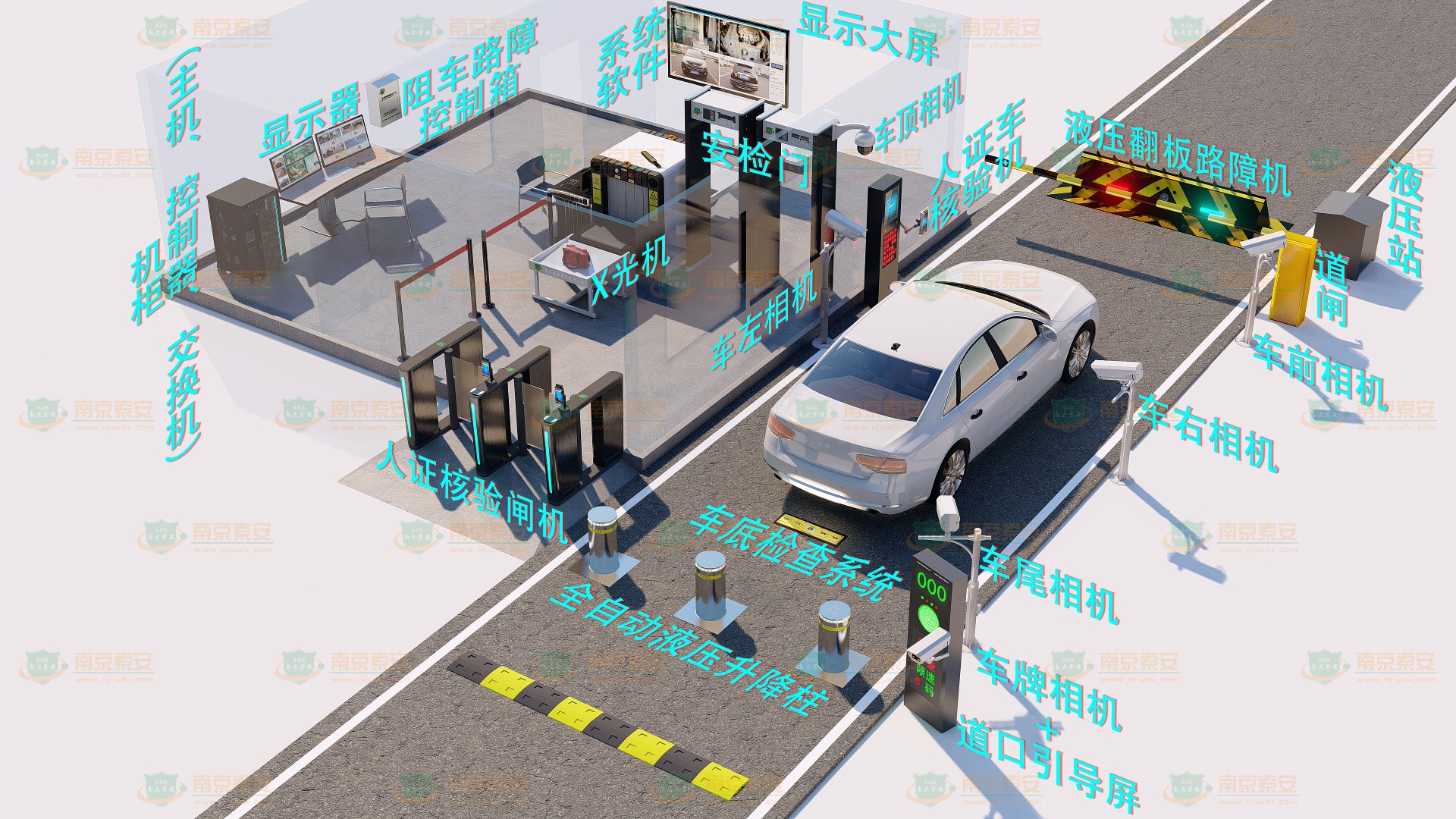

8、可采集安检车道内全景及车顶、车两侧及底盘多路视频，可智能拍照并关联保存;

9、可集成随车人员信息与物品安检信息并关联记录查询；可联动闸门、路障等周边设备协同工作；

10、可多个车道可集成显示并上传中央管理平台；

11、可国产操作系统、嵌入式系统环境下运行；

12、支持多国语言界面切换。

Function Overview:

1, 4 million ultra-high definition complete vehicle chassis process video or photo recording

2, later can be seamlessly upgraded to vehicle chassis monitoring vehicle chassis scanning

3、Automatic anti-crushing self-protection lift, can automatically remove sand, dust, rain, snow and other debris;

4, the ground 2CM installation height and two-way gentle slope can be a low barrier to pass the inspected vehicle without impact impact;

5、Intelligent full-view angle underbody complementary lighting and chassis 180-degree panoramic monitoring;

6, full warning orange eye-catching, can also be all 304 stainless steel finishing, resistance to heavy vehicle crushing 56 tons or more, and can be waterproof IP68 soak in water for 60 hours, configured with a complete temperature control system can be alarmed to linkage cooling, de-fogging anti-condensation;

7, can be integrated license plate, car number, box number and other identification, and can support multiple brands of undercarriage, license plate and other collection camera access, easy system integration;

8, can collect the panoramic view of the security check lane and the roof, both sides of the car and the chassis of the multi-channel video, can be intelligently photographed and associated preservation.

9, can be integrated with the vehicle personnel information and goods security information and related records query; can linkage gates, barricades and other peripheral equipment to work together;

10、Multiple lanes can be integrated and uploaded to the central management platform;

11, can be domestic operating systems, embedded systems running under the environment;

12, support for multi-language interface switching.

特色优势：

整体橙色醒目警示，更小巧精致；

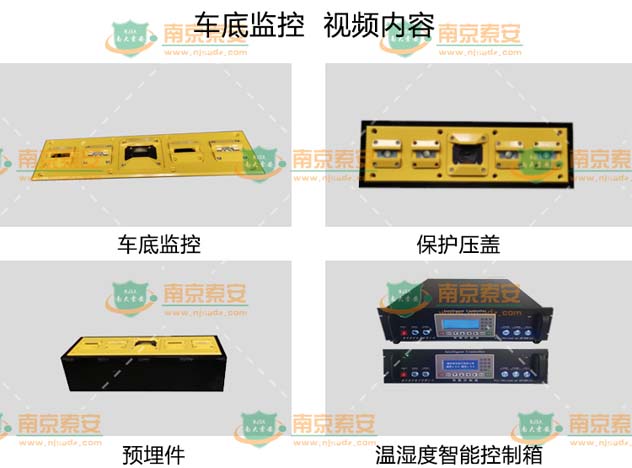

双向低障碍坡式保护罩内置自动除尘，可抗碾压自保护式升降，

一体化温湿度LCD屏与后台软件上同步显示温湿度并自动控制降温与加热除雾、防冷凝，

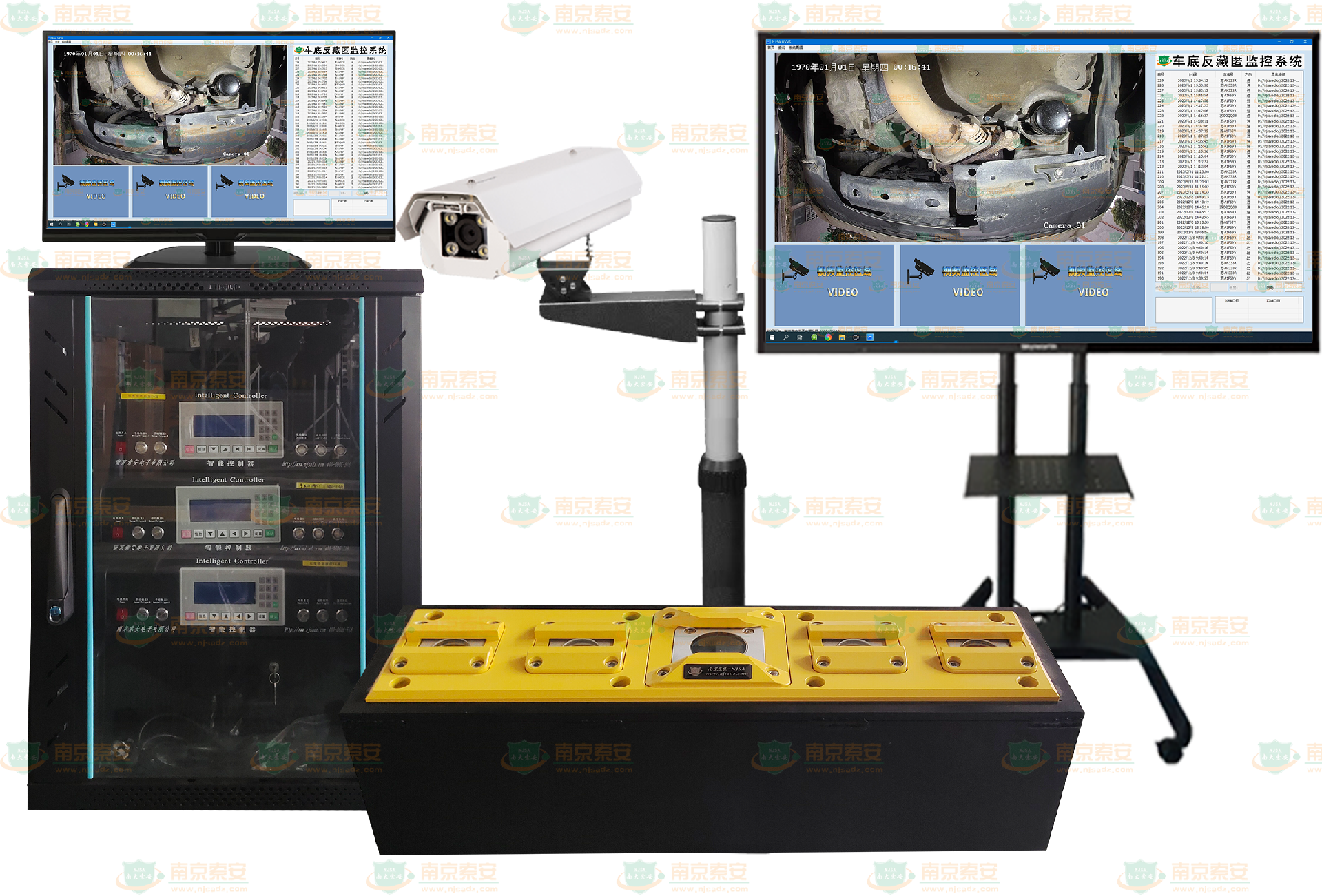

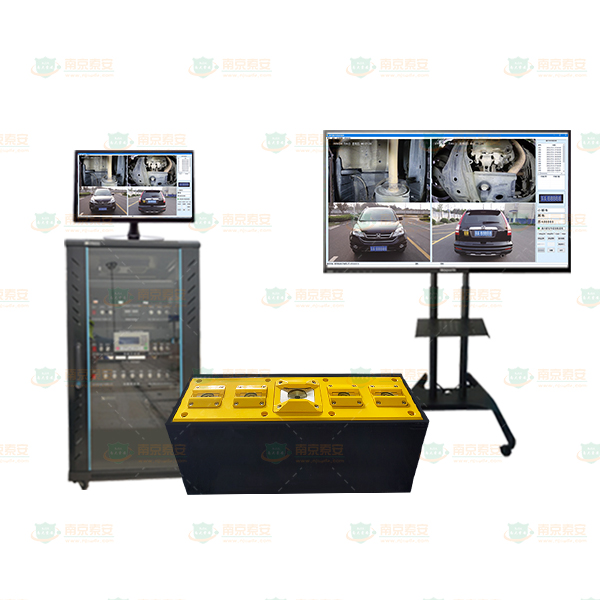

400万高清图像可接入车底监控拍照等平台软件，

整体模块化设计，方便安装维护。

可升级到车底扫描。

Characteristic advantage：

The overall orange eye-catching warning is more compact and exquisite;

Two-way low-obstacle slope protective cover has built-in automatic dust removal, which can resist rolling and self-protection lifting.

The integrated temperature and humidity LCD screen and background software synchronously display temperature and humidity, and automatically control cooling and heating to defog and prevent condensation.

4 million high-definition images can be connected to platform software such as vehicle bottom monitoring and photographing, and the overall modular design is convenient for installation and maintenance.

Can be upgraded to underbody scanning
