车底车身全方位抓拍软件

JZ600-D系列车辆底盘安全检查监控拍照系统是一套集自动对车辆底盘进行图像采集、显示、控制、录像、抓拍为一体的车辆安检管理系统。该系统能有效防止车底藏匿炸弹、武器、生化危险品、危险人物出入重要场所;防止车底携带毒品、非法走私物乃至非法移民通过检查站,该产品具有成像清晰度高、系统运行稳定可靠、

在线订购

       JZ600-D系列车辆底盘安全检查监控拍照系统是一套集自动对车辆底盘进行图像采集、显示、控制、录像、抓拍为一体的车辆安检管理系统。该系统能有效防止车底藏匿炸弹、武器、生化危险品、危险人物出入重要场所;防止车底携带毒品、非法走私物乃至非法移民通过检查站,该产品具有成像清晰度高、系统运行稳定可靠、安装简单快捷等特点。

The JZ600-D series vehicle undercarriage security check monitoring and photography system is a vehicle security check management system that integrates automatic image acquisition, display, control, video recording and capture of vehicle undercarriages. The system can effectively prevent bombs, weapons, biochemical dangerous goods and dangerous people from entering and leaving important places hidden underneath the vehicle; prevent drugs, illegal smuggled goods and even illegal immigrants from being carried underneath the vehicle through the checkpoint.

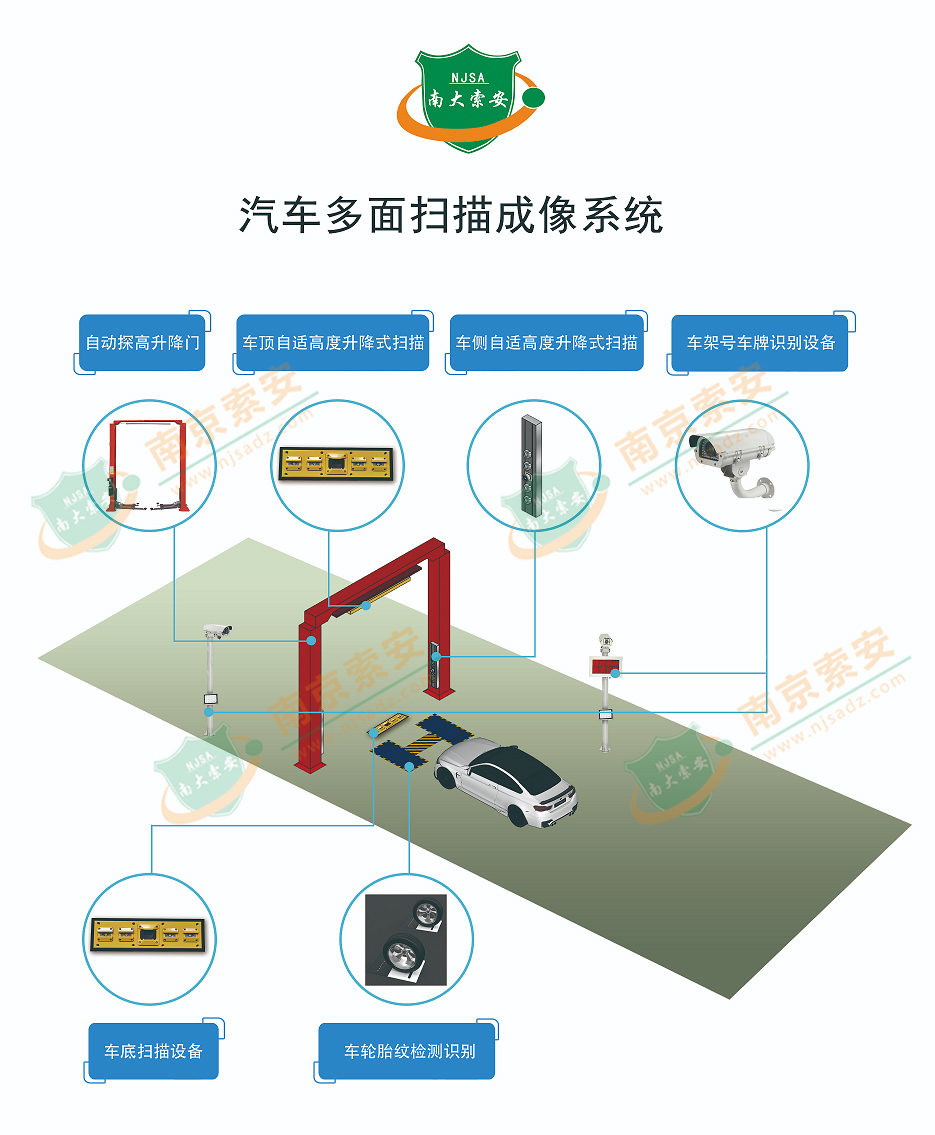

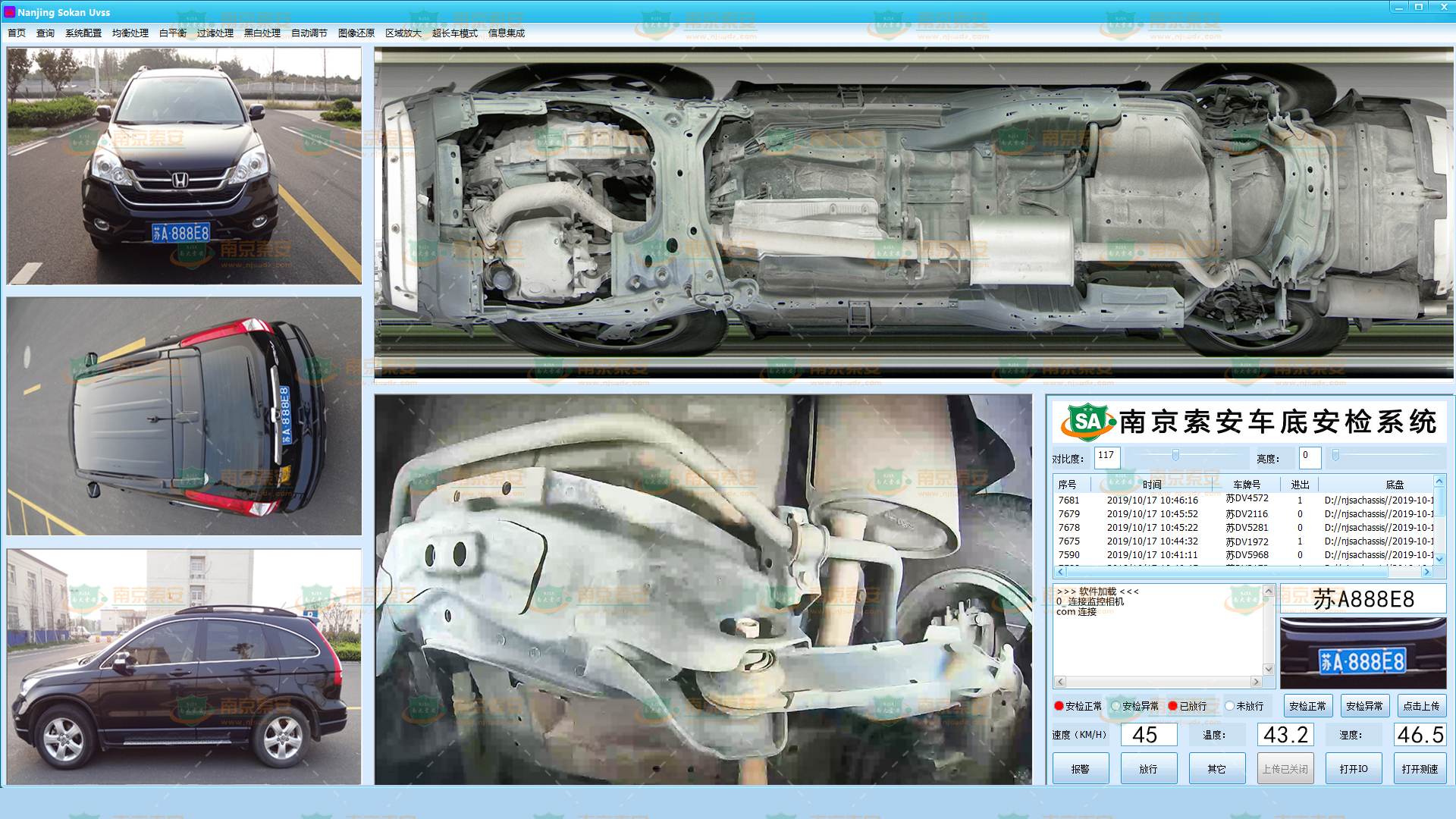

       索安新解决方案提供对车底、车顶、车前后左右部位进行实时高清数字监控与录像抓拍功能,提供车身各方位图像抓拍扫描合成及生成。车辆进入、驶出时的图像信息对比等监所、卡口行业功能(可根据监所、卡口管理的要求,将车辆在安检区域接受检查时的车顶、车前、车后、车左测、车右侧等部位进行拍照并与车底扫描成像后的图像汇总合成一幅全面的车辆安全检查时的大图像,并可选配车辆牌照号码、办事事由、驾驶员姓名及驾驶证、负责检查登记的工作人员等相关信息联合存储,一一对应); 同时能自动提供受检车辆按车牌识别保存的车底、车顶、车侧的监控视频录像片段、车底监控抓拍图片、车底线阵扫描高清宽幅完整图片、车牌抓拍图片、车顶及车辆前后左右各部位的高清图片。

The new Soan solution provides real-time HD digital monitoring and video capture functions for underneath, roof, front, rear and left and right parts of the vehicle, providing image capture scanning synthesis and generation for all directions of the body. (According to the requirements of the management of the prison and the chokepoint, the roof, front, back, left and right side of the vehicle can be photographed when the vehicle is being inspected in the security check area, and the image of the vehicle can be combined with the image of the underbody scanning and imaging to form a large comprehensive image of the vehicle security check, and the vehicle licence number, the reason for the work, the driver's name and driving license, the staff responsible for the check, etc. can be selected. (name and driving licence, staff responsible for inspection and registration and other relevant information stored jointly, one by one); at the same time can automatically provide the inspected vehicle by license plate recognition saved under the car, roof, side of the car monitoring video footage, under the car monitoring capture images, under the car line array scan HD wide complete picture, license plate capture images, the roof and the vehicle front, rear and left and right parts of the high-definition picture.



       运用计算机视觉技术实现高清晰度、完整的汽车底盘成像;采用高清彩色扫描式成像,可自动检测通过车辆, 视角180°,视宽车底不小于200CM且图像清晰,输出图像无畸变。

       支持超长车辆(长度不受限制)的检查,对于超长车辆可通过图像预览窗口进行拖拽、放大来查看整个车辆底盘;车辆通过时,系统自动显示高清晰完整车辆底盘图像,对大小车辆底部采集信息一览无余。

实时车底及车顶等多方位监控功能:最大可接入9路高清车底、车顶、车前、车后、车左侧、车右侧等场景图像;画面分割模式:1、4、5、、16可选;画面可放大显示;

场景录像功能:多种录像触发模式如手动录像、定时录像、输入触发录像;录像回放。

自动化检测:可以根据用户需要现场编程来实现各种检测流程,并实现高度自动化操作。选配的车牌识别模块可对其中某一路或两路场景图像进行车牌的自动识别。

Using computer vision technology to achieve high definition and complete vehicle chassis imaging; Using high-definition color scanning imaging, can automatically detect through the vehicle, the Angle of view is 180°, the viewing width of the car bottom is not less than 200CM and the image is clear, the output image is without distortion.

Support the inspection of ultra-long vehicles (length is not limited), for ultra-long vehicles can be dragged and enlarged through the image preview window to view the entire vehicle chassis; When the vehicle passes, the system automatically displays high-definition and complete vehicle chassis images, and the information collected at the bottom of the large and small vehicles is unobstructed.

Real-time under and roof multi-directional monitoring functions: maximum access to 9 high-definition under, roof, front, back, left, right and other scene images; Screen segmentation mode: 1, 4, 5, 16 optional; The screen can be enlarged;

Scene video function: a variety of video trigger modes, such as manual recording, timing recording, input trigger recording; Video playback.

Automated detection: Various detection processes can be programmed according to user needs, and a high degree of automation can be achieved. The optional license plate recognition module can automatically recognize one or two of the scene images.

图片上传

图片类型:彩色JPG格式;图片失真:小于5%;

车底图片分辨率:优于0.5mm/像素;纵向分辨率≥2048/4096/6144/8192像素(可根据用户要求对相机选型配置);

车底成像显示时间:〈0.3秒; 图像存储或载入时间:〈0.3秒;

操作系统支持:WINDOWS 7、10。

系统界面支持语言:可为全球用户定制中文、英文、俄文、德文、法文、阿拉伯文等多语文版本;

支持多种道口管理模式:单向车道、进出混合车道、进出独立双向车道、多车道,并且支持进出场车辆信息管理;

Image type: Color JPG format; Image distortion: less than 5%;

Image resolution: better than 0.5mm/ pixel; Vertical resolution ≥2048/4096/6144/8192 pixels (camera selection can be configured according to user requirements);

Car bottom imaging display time: < 0.3 seconds; Image storage or loading time: < 0.3 seconds;

Supported operating system: WINDOWS 7, 10.

System interface support languages: Chinese, English, Russian, German, French, Arabic and other multi-language versions can be customized for global users;

Support a variety of crossing management modes: one-way lane, in and out of the mixed lane, in and out of the independent two-way lane, multi-lane, and support entry and exit vehicle information management;
