In recent years, the UAV market has grown rapidly. With the large-scale R&D and production of manufacturers such as DJI, Jifei, and Zero Intelligent Control, commercial UAVs have become extremely cost-effective and have become increasingly popular. However, the domestic supervision of drones, especially "black flying" drones, is still in a blank state. The proportion of micro drones flying in the air is about 90% black, which poses great hidden dangers to air supervision and air safety.

        Incidents of injury and damage to people by “black flying” drones occur from time to time. In the second half of 2016 alone, there were hundreds of accidents, such as forced suspension of flights, crashes from large-scale events and injuries. Recently, there have been flight accidents in Canada and Ningbo Hefei high-speed injuries. It can be seen that Hefei drones hide a lot of safety risks. Faced with the gap in the supervision of black drones, only strong countermeasures can be taken to ensure air safety.

Application of Soan Anti-UAV Series Products

        Suoan Electronics is mainly engaged in the early warning, monitoring and disposal of low-altitude, slow-moving small targets. Aiming at the gap in the domestic drone control market, Soan Electronics has launched the Suoan series of drone control products and overall solutions for drone control in sensitive areas.

Main application scenarios:

1) Protection of domestic no-fly areas: politically sensitive areas, military management areas, nuclear industrial facilities, airports, prisons, border defense and other areas;

2) The site to prevent information leakage: the site of major security activities, the site of major criminal cases, the site of urban management law enforcement, the protection of politicians, the collection and scheduling of large-scale performances, the site of examination and excavation, and the site of large-scale group activities;

3) Combating illegal activities: terrorist attacks, drug trafficking and smuggling, illegal goods or information transmission.

4) Other facilities, sites, and activities that require airspace protection.

        Soan Electronic's anti-UAV system not only has excellent products, but also a feasible solution for “low-altitude security”. According to the actual situation of the scene, the UAV jammer is reasonably deployed to improve the regional air security. ability.

 Inspection and control integrated anti-UAV command vehicle

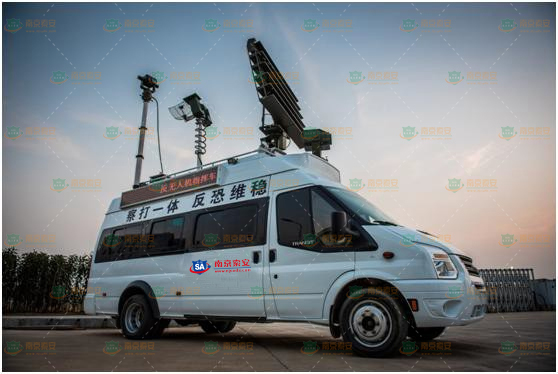

        The Suoan surveillance and control integrated command vehicle is an anti-UAV system independently developed by Nanjing Suoan Electronics Co., Ltd. with search, tracking, disposal and communication command functions. The command vehicle is modified based on the Jiangling Ford Transit V48 long-axle high-top commercial vehicle. The vehicle has nine sub-systems: 1. Radar system; 2. Search infrared system; 3. Tracking infrared system; 4. Electromagnetic wave disposal system; 5. .Wireless network communication system; 6. Video surveillance system; 7. Body stabilization system; 8. Power supply system; 9. Vehicle interior environment monitoring system.

The inspection and control integrated command vehicle has five advantages:

1. Complete elements and self-contained system

         The command vehicle forms a complete system from search, discovery, tracking, confirmation to disposal, so as to complete the realization of all elements and the whole process system functions from sensors to shooters, so as to ensure that the vehicle can be put into use as a complete control system.

2. Ladder configuration, high integration

         The search, tracking and discovery system of the command vehicle is configured in steps from far to near, high and low altitude, and fixed and mobile, and all sub-systems are integrated into the command vehicle, which has the characteristics and advantages of high system integration.

3. Complete functions and advanced performance

        The performance indicators of the nine major sub-systems of the command vehicle have been appraised by the national authority, and are all at the domestic first-class level.

4. Allegation coordination, investigation and control integration

        The specific independent command and control coordination function of the command vehicle can be used as an independent command and control platform to perform the task of regional command and control coordination to ensure the smooth completion of the integrated task of inspection and control.

5. Cloud sharing, reasonable deployment

       The cloud platform independently developed by Suoan can share the distributed system information through the cloud in real time, and feed back monitoring information to relevant decision-making agencies through the data link in a timely manner, so as to realize the rational deployment of drone control resources.

(Upper left: the appearance of the radar, upper right: the radar operating terminal)

         The command vehicle radar system is a fully coherent, all solid-state, pulse Doppler three-coordinate air defense intelligence radar. As the detection sensor of the UAV air defense zone early warning system, it is mainly responsible for the all-round search and detection of low-altitude short-range targets; It can automatically enroll the position, distance and speed information of the moving target in an unattended state.

Top left: search for infrared appearance, top right: search for infrared operation terminal)

        The mission and task of the search infrared sub-system is to implement large-scale, multi-batch real-time reconnaissance warnings for close-range airborne targets, and report the detected target information to the command and control system. The sub-system detects the infrared radiation of the target itself in a completely passive manner. When the radar has a blind zone or must remain silent, it can assist or replace the radar work, complete the low-altitude and ultra-low-altitude long-range incoming target warning and target position indication . The device can extract small and weak targets from a full range of complex backgrounds, and has the characteristics of high detection sensitivity, high angular resolution, and anti-interference.

 (Upper left: tracking infrared appearance, upper right: tracking infrared operation terminal)

        Tracking infrared through radar and search infrared guidance information, timely turning the turntable to find the target. The system processes the image information in real time, detects and recognizes the target, extracts the target miss distance to realize the closed-loop tracking of the target by the photoelectric turntable, and displays the real-time position information and image information of the target on the computer.

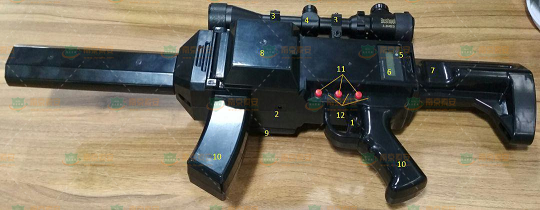

The Soan handheld UAV counter-gun is an anti-UAV control device that can be flexibly used in anti-UAV interference operations carried by individual soldiers.

1: Disposal switch; 2: Charging socket; 3: Fixed bracket; 4: Scope;

5: Battery switch; 6: Battery LCD screen; 7: Stock-shaped battery cover;

8~9: Panel antenna; 10: Grip; 11: Disposal of frequency band switch; 12: Frequency band switch indicator light.
