This product is suitable for vehicle inspection on highways, logistics parks, and public security bayonet passages. It has low radiation dose, convenient operation, fast passage and strong practicability.

Gamma ray source Cobalt 60 (0.8Ci)

Detector Solid state detector

Penetration ≥170mm (steel plate) (Under the background of air, lead bricks can still be detected behind 170mm. The equivalent thickness of fresh agricultural products vehicles when fully loaded is 150mm.)

Spatial resolution ≤6mm (the thinnest copper wire diameter that can be detected under the air background) The above two indicators are important indicators of the penetrating detection system. Among them, the spatial resolution and contrast sensitivity determine the clarity of the image.

Scanning inspection speed 6～10km/h

Environmental working temperature -20℃～50℃

Relative humidity 5%～95%, no condensation

Passing speed ≤10km/h

Voltage and power consumption 380V, 2KW

License Plate Recognition System OCR

System working time 24x7x52 (hours), can work continuously around the clock

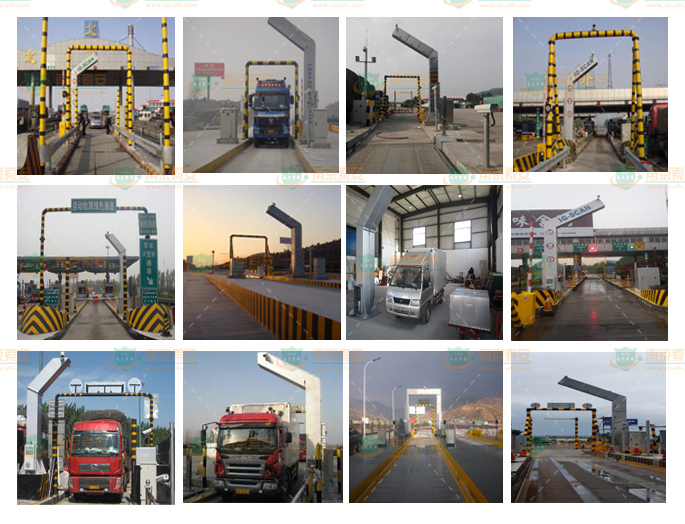

Below: the bayonet application site
