Product Overview

The pavement applicable vehicle chassis anti-concealment surveillance camera system is a vehicle safety check system which integrates automatic image acquisition, display, control, recording and capture of the vehicle chassis.The system can effectively prevent the hiding of bombs, weapons, hazardous chemicals under the vehicle, and dangerous individuals access to important security protection areas ;Prevent vehicle chassises from carrying drugs, illegal smuggled goods, and even illegal immigrants through checkpoints.This product boasts features such as high imaging clarity, stable and reliable system operation, easy and fast installation, and low barriers for inspection.

Product Introduction

The intelligent controller working at a voltage of AC220V,the front-end anti-concealment camera working at a voltage of DC12V；

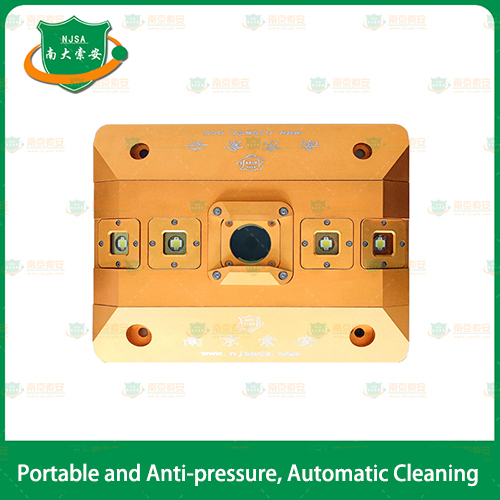

High-strength structure with bi-directional anti-collision cushion design, processed with high-strength steel body, and equipped with anti-rolling protective devices on the top and both sides. It also has waterproof aviation cable joints and is used for various road surface；

The intelligent camera protective cover adopts a unique panoramic window design that covers 180-degrees without dead angle；

The device can be equipped with dust removal and snow blowing functions, which effectively solve the problem of dirty lens caused by dust accumulation or foreign objects that cannot be cleaned in time during daily use；

Built-in no less than 4 million imported HD digital CMOS ICR 180-degree wide-angle special vehicle chassis camera with automatic aperture and automatic backlight compensation；

Chassis view angle: horizontal field of view of 180 degrees and vertical field of view of 100 degrees with F2.0 aperture；

Electronic shutter: 1/3 second to 1/100,000 second；

Support for wide dynamic range of 120dB and 3D digital noise reduction.

Image clarity : 2560×1440@25fps；

Video networking support: docking protocols for monitoring platforms such as GB28181, ONVIF, ISAPI, etc；

Military-grade rugged metal components, two-way fully sealed structure, corrosion-resistant, shock-resistant, pressure-resistant and anti-condensation.

It can automatically turn on auxiliary high-power surface light source illumination through wireless radar, laser detection；

It can be equipped with built-in temperature and humidity sensors, which can automatically control heating, dehumidification, and intelligent air control.The equipment has an electric heating function to prevent condensation on the lens in extreme environments；

The innovative pavement applicable quick-assembly method is suitable for large-scale conferences, sports venues, exhibition halls, important control inspection entrances, etc. It can monitor the vehicle chassises and other targets to prevent escape, infiltration, and other anti-terrorism security checks, as well as to identify and rectify vehicle chassises safety hazards；

Indoor/outdoor use；

Auxiliary lighting control: manual, automatic (with ground sensor, light sensor, radar and laser)

Connector:Waterproof sealing sleeve (provided randomly)

Size:400*500*60mm

Software introduction

The vehicle chassis anti-concealment omni-directional surveillance camera synthesis software system has HD real-time surveying and scene recording functions. It can snapshot images of the front, rear, top, bottom, and sides of the vehicle by the intelligent controller. It can automatically recognize the license plate and prompt the input of information related to the vehicle, drivers, passengers, and inspection personnel. It can also query, print, and automatically display the information of the vehicle and related personnel during the inspection, as well as the synthesized images of the vehicle's various parts captured by the camera.

Vehicle license plate image acquisition and license plate number recognition.

Identification of vehicle detection signals, achieved through radar or emission detectors or ground sensors IO controllers.

Multi-channel real-time monitoring window.

Snapshot and storage through vehicle detection sensor IO signal.

Considering that vehicles access to the regulated area vary in length, an artificial capture button can be set up to achieve multi-part captures such as front, rear, left, right, top, etc.

The entire vehicle chassis inspection process can be highly automated using ground sensing coils or optical sensors, wireless radar, precise laser beam guidance systems, and vehicle detectors with sound and light guidance systems；

The software provides users with rich and convenient operation functions, and a large number of expandable software and hardware interfaces have been reserved in the design, greatly facilitating user operations and meeting the needs of users for system expansion and upgrades in the future.
