近几年，无人机市场增长迅猛，随着大疆、极飞、零度智控等厂家的大规模研发和生产，使得商用无人机极具性价比，普及程度越来越高。然而，国内对无人机，尤其是“黑飞”无人机的监管还处于空白状态。空中飞行的微型无人机黑飞比例约为 90%，这给空中监管、空中安全造成极大的隐患。

In recent years, the drone market has grown rapidly, with the large-scale development and production of DJI, Polaris, Zero Intelligence and other manufacturers, making commercial drones very cost-effective and increasingly popular. However, the domestic regulation of drones, especially "black flying" drones is still in a blank state. The proportion of micro drones flying in the air is about 90%, which causes great potential danger to air regulation and air safety.

  “黑飞”无人机伤人损物事件时有发生，仅 2016 年下半年就发生了几百起的事故，如逼停航班、大型活动坠落伤人等。近期便有加拿大航班事故、宁波黑飞高速伤人，可见黑飞无人机隐藏大量安全隐患。面对黑飞无人机监管的空白，唯有采取强有力的反制措施，以保障空中的安全。

"Black flying" drones hurt people and damage things happen from time to time, only in the second half of 2016 there were hundreds of accidents, such as forced to stop flights, large events fell and injured people. Recently, there have been flight accidents in Canada and high-speed injuries from black flying drones in Ningbo, which shows that black flying drones hide a lot of hidden safety risks. In the face of the gap in the regulation of black flying drones, the only way to ensure air safety is to take strong countermeasures.

索安反无人机系列产品应用

索安电子主要从事针对低空慢速小型目标的预警、监控与处置。

Sok An Anti-Drone Series Application

Sok An Electronics is mainly engaged in the early warning, monitoring and disposal of low altitude and slow speed small targets.

主要应用场景：

1)国内禁飞区域的防护：政治敏感区、军事管理区、核工业设施、机场、监狱、边防等区域；

2)防止信息泄露的现场：重大安保活动现场、重大刑事案件现场、城管执法现场、政要随行保护、大型演出的采排、考挖掘现场、大型群体活动现场；
3)打击违法活动案件：恐怖袭击、贩运走私毒品、违法物品或信息传递。
4)其它需要空域保障的设施、现场、活动。

Main application scenarios:

1) Protection of domestic no-fly areas: politically sensitive areas, military management areas, nuclear industry facilities, airports, prisons, border defense and other areas;

2) Prevention of information leakage site: major security activities site, major criminal cases site, city law enforcement site, dignitaries accompanying protection, large performances of the picking row, examination excavation site, large group activities site;

3) Combating illegal activities cases: terrorist attacks, drug trafficking and smuggling, illegal goods or information transfer.

4) other facilities, sites, activities that require airspace protection.

（上左：雷达外观，上右：雷达操作终端）

(Top left: radar appearance, top right: radar operation terminal)

    指挥车雷达系统是一部全相参、全固态、脉冲多普勒三坐标防空情报雷达，作为无人机防空区预警系统的探测传感器，主要负责对低空近程目标的全方位搜索探测；系统可在无人值守状态下，全自动录取运动目标的方位、距离和速度信息。

The command vehicle radar system is a full-phase reference, all-solid-state, pulse Doppler three-coordinate air defense intelligence radar, as the detection sensor of the UAV air defense zone early warning system, mainly responsible for the all-round search and detection of low-altitude proximity targets; the system can record the bearing, distance and speed information of moving targets fully automatically under the unattended condition.

(上左：搜索红外外观，上右：搜索红外操作终端）

(Top left: search for infrared appearance, top right: search for infrared operating terminal)

    搜索红外分系统的使命和任务是对近距离空中飞行目标实施大范围、多批次的实时侦察告警，并将侦察到的目标信息上报指挥控制系统。该分系统以完全被动的方式探测目标自身红外辐射，在雷达存在盲区或必须保持静默的情况下，能辅助或代替雷达工作，完成对低空和超低空的远距离来袭目标告警和目标位置指示。设备能从全方位的复杂背景下提取弱小目标，具有高探测灵敏度、高角分辨率、抗干扰等特点。

The mission and task of the search infrared subsystem is to implement a wide-range, multi-batch real-time reconnaissance alert for close airborne targets and report the reconnaissance target information to the command and control system. The subsystem detects the target's own infrared radiation in a completely passive manner, and can assist or replace the radar work when the radar has a blind spot or must remain silent, and complete the alerting of long-range incoming targets at low and ultra-low altitudes and target position indication. The equipment can extract weak targets from all-round complex background, with high detection sensitivity, high angular resolution, anti-jamming and other characteristics.

（上左：跟踪红外外观，上右：跟踪红外操作终端）

(Top left: tracking infrared appearance, top right: tracking infrared operating terminal)

    跟踪红外通过雷达和搜索红外的导引信息，及时调转转台发现目标。系统对图像信息进行实时处理，检测并识别目标，提取目标脱靶量实现光电转台对目标的闭环跟踪，并将目标实时位置信息及图像信息显示在计算机上。

Tracking infrared through radar and search infrared guidance information, timely turn the turntable to find the target. The system processes the image information in real time, detects and identifies the target, extracts the target off-target amount to realize the closed-loop tracking of the target by the photoelectric turntable, and displays the real-time position information and image information of the target on the computer.

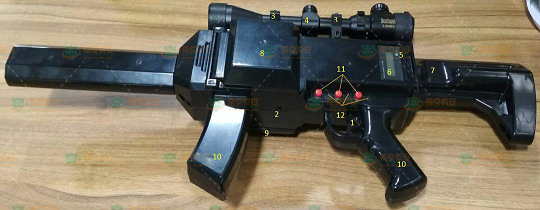

    索安手持式无人机反制枪是一款可灵活运用于单兵携带反无人机干扰行动的反无人机管控设备。

Soan Handheld Drone Countermeasures Gun is a flexible anti-drone control device that can be used in man-portable anti-drone jamming operations.

1：处置开关；

2：充电插口；

3：固定支架；

4：瞄准镜；
5：电池开关；

6：电池液晶显示屏；

7：枪托形电池盖；
8~9：面板天线；

10:握把；

11：处置频段开关；

12：频段开关指示灯。

1: Disposal switch;

2: charging jack;

3: fixed bracket;

4: sighting scope;

5: battery switch;

6: battery LCD display;;

7: butt-shaped battery cover;;

8~9: panel antenna;

10: grip;

11: Disposal band switch;

12: band switch indicator light.
