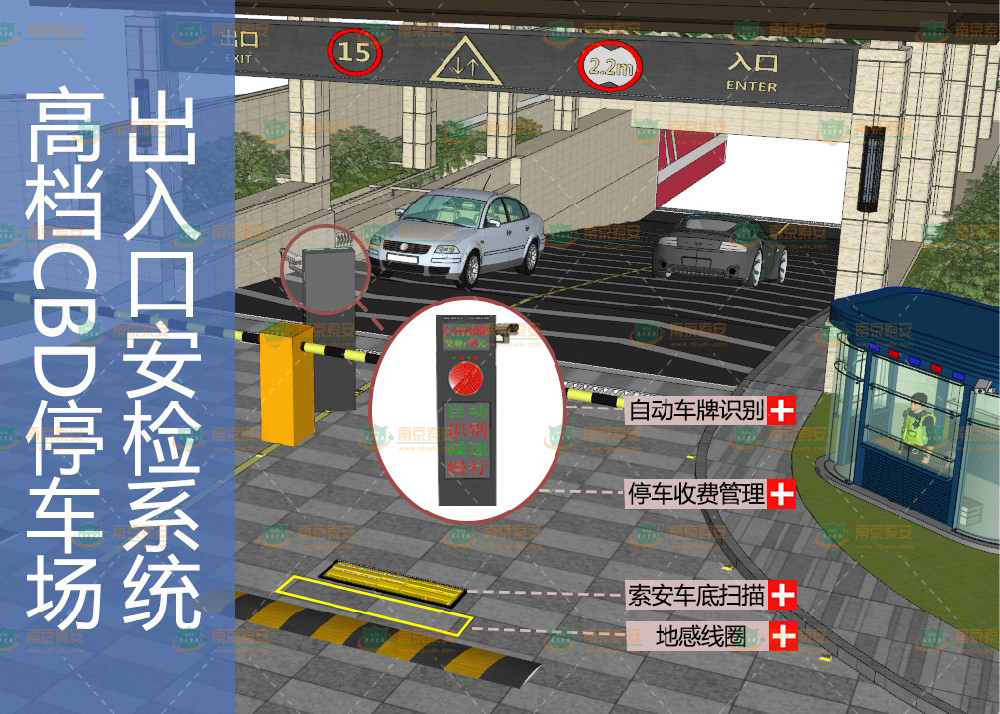

高档CBD停车场出入口集收费一体化安检系统

近段时间以来,随着全国反恐形势的加强,各大机场、海关口岸、检查站加大了查违查危力度,特别是对车底安全这块,如车底藏人偷逃、藏爆等,严重影响了社会稳定与安全,高档停车场出入道口,现在对人员及车辆安检越来越重视,有部分停车场采用的车道入口处各有一名地面引导人员值守,同时还有一名站在入口高台处

在线订购

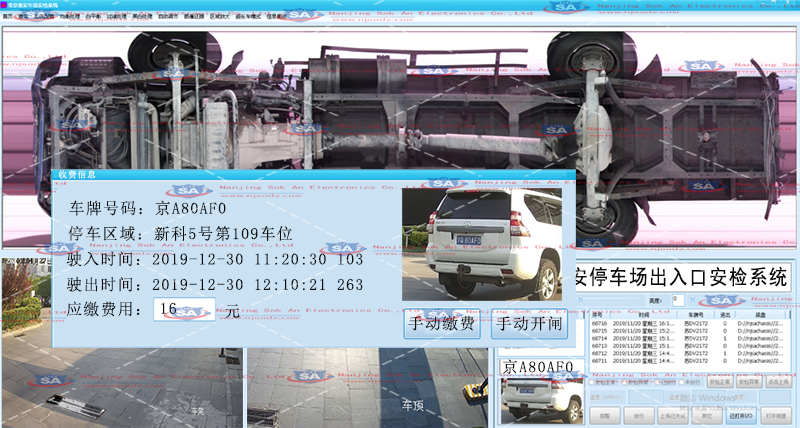

        近段时间以来,随着全国反恐形势的加强,各大机场、海关口岸、检查站加大了查违查危力度,特别是对车底安全这块,如车底藏人偷逃、藏爆等,严重影响了社会稳定与安全,高档停车场出入道口,现在对人员及车辆安检越来越重视,有部分停车场采用的车道入口处各有一名地面引导人员值守,同时还有一名站在入口高台处的安保人员,专门负责检查车辆顶部情况。但是这样费时费力, JZTECH车底扫描成像系统是一套集自动检测车辆并对车辆底盘进行图像采集、显示、拼接、底盘缩率图预览、并集成出入道口自动计费收费为一体的停车场出入口安检系统。

In recent times, with the strengthening of the national counter-terrorism situation, the major airports, customs ports, checkpoints to increase the strength of the violation and check the danger, especially the security of the bottom of the car this piece, such as the bottom of the car hiding people fleeing, hiding explosives, etc., seriously affect social stability and security, high-end parking access road entrances, now pay more and more attention to personnel and vehicle security checks, there are some parking adopted at the entrance to the lane each have a ground guide staff on duty In addition, there is also a security officer standing at the entrance high platform, specifically responsible for checking the top of the vehicle situation. But this is time-consuming and labor-intensive, JZTECH undercarriage scanning imaging system is a set of automatic detection of vehicles and the vehicle chassis image acquisition, display, splicing, chassis scaling map preview, and integrated access to the entrance and exit of the parking lot automatic billing charges as a whole security system.


系统参数:

1.采用高清彩色网络线阵CCD扫描技术动态方式成像,通过TCP/IP联网;
2.底盘成像显示时间:﹤1秒;(实时显示);
3.底盘存储或载入时间:﹤1秒;
4.扫描图像分辨率:≧2048像素;
5.车牌正确识别率:≥98%;
6.车底图像显示方式:大幅面横向显示;
7.底盘图像存储格式:标准BMP图像格式、JPEG;

8.集成出入口收费:自动根据车辆进出时间,及系统设备的缴费标准,弹出收费信息;可集成自动9.缴费,自动控制;
10.系统应能将采集到的车底、车牌等图像与车辆牌照号码、进出时间、自动或手动录入的车辆所属单位、前往某部门办事事由、驾驶员姓名及驾驶证、跟车人员及安检工作人员等相关人员信息对应存储,并应能进行人员信息关联查询。
11.系统应能对车底成像进行智能识别。当识别出异常部位时,应对异常部位进行红色方框标识。
12.系统软件具备完备的图像处理功能和外部环境探测与联动调控功能,如环境温度、湿度实时显示、大门、阻车器、防撞柱、道闸等状态显示与控制等;
13.扩展功能:TS可提供多通道集中监控管理系统,能自动对通过各道口进出的车辆进行自动统计。可扩展为多卡口联网查询及车底图像比对报警;
14.标配不低于2路IP高清车牌识别模块;抓拍图像及车牌识别时间:<0.2秒

System parameters:

1. Adopt high-definition color network line array CCD scanning technology imaging in dynamic way, networked through TCP/IP;

2. Display time of chassis imaging: ﹤1 second; (real-time display);

3. Chassis storage or loading time: ﹤1second;

4.Scan image resolution:≧2048 pixels;

5. Correct recognition rate of license plate:≥98%;

6. undercarriage image display mode: large-format horizontal display;

7. undercarriage image storage format: standard BMP image format, JPEG;

8. Integrated entrance and exit charging: automatically according to the vehicle in and out of time, and the system equipment payment standards, pop-up charging information; can be integrated with automatic 9. payment, automatic control.

10. The system should be able to collect the image of the bottom of the car, license plate, etc. and vehicle license plate number, in and out of time, automatic or manual entry of the vehicle belongs to the unit, to a department for business reasons, driver's name and driver's license, followers and security staff and other related personnel information corresponding storage, and should be able to carry out personnel information related queries.

11. The system should be able to carry out intelligent identification of underbody imaging. When the identification of abnormal parts, the abnormal parts should be marked with red boxes.

12. The system software has complete image processing functions and external environment detection and linkage control functions, such as real-time display of ambient temperature and humidity, status display and control of gates, vehicle blockers, anti-collision pillars, gates, etc.;

13. Expansion function: TS can provide multi-channel centralized monitoring and management system, which can automatically perform automatic statistics on vehicles entering and exiting through each road crossing. Can be extended to multi-channel network inquiries and under-vehicle image comparison alarm;

14. Standard with no less than 2-channel IP HD license plate recognition module; capture image and license plate recognition time: <0.2 seconds
