车辆/集装箱检查系统JZ700-ZC-301-车辆、集装箱检查系统-南京索安电子有限公司

The product is suitable for highway, logistics park, public security chokepoint channel vehicle inspection, low radiation dose, easy to operate, through the fast, practical.

伽马射线源	钴60（0.8Ci）
探测器	固体探测器
穿透力	≥170mm（钢板）（空气背景下，在170mm后面仍可检测到铅砖。鲜活农产品车辆满载时的等效厚度为150mm。）
农产品车辆满载时的等效厚度	150mm
空间分辨率	≤6mm（空气背景下可检测到的最细铜丝直径）以上2个指标为穿透式检测系统的重要指标其中，空间分辨率和反差灵敏度决定图像的清晰程度。）
扫描检查速度	6～10km/h
环境工作温度	－20℃～50℃
相对湿度	5％～95％，不结露
通过速度	≤10km/h
电压和功耗	380V，2KW
车牌识别系统	OCR
系统工作时间	24x7x52（小时），可全天候连续工作

Gamma-ray sources	Cobalt 60 (0.8Ci)
Detector	Solids Detector
Penetrating power	≥170mm(Steel plate) (Lead brick can still be detected behind 170mm in air background. (The equivalent thickness of the fresh produce vehicle when fully loaded is 150mm.)
Equivalent thickness of agricultural vehicles when fully loaded	150mm
Spatial resolution	≤6mm(The finest copper wire diameter that can be detected against an air background) The above 2 indicators are important indicators for penetrating detection systems where spatial resolution and contrast sensitivity determine the clarity of the image.)
Scanning inspection speed	6～10km/h
Ambient working temperature	－20℃～50℃
Relative Humidity	5％～95％，No condensation
By speed	≤10km/h
Voltage and power consumption	380V，2KW
License plate recognition system	OCR
System working time	24x7x52 (hours) for 24/7 continuous operation

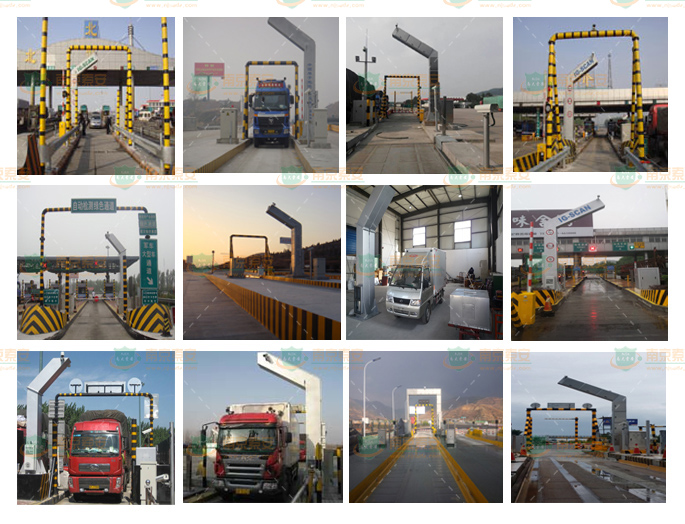

下图：卡口应用现场

Below: The application site of bayonet

需要方案设计（标底设计）、项目合作、出口合作请与我们联系

Need scheme design (bid design), project cooperation, export cooperation please contact us
