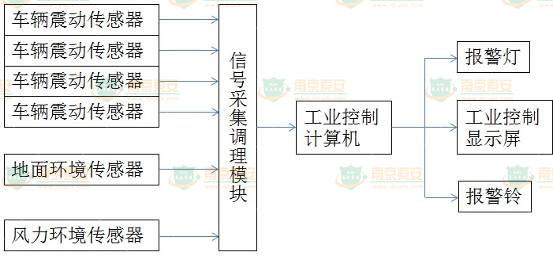

车辆内部藏匿有人的时候，藏匿者的心脏会产生有节律的跳动，此震动会传递到车辆的悬挂、车厢底部等位置，通过连接感应器和被测车辆，将此震动采集并通过数据线缆传递回数据分析设备，分析软件进行分析，分析软件运算范围精确集中在心脏跳动的频率范围内，以这种震动分析为基础，在显示终端上可明确显示是否有人存在，并伴随声音报警。

When someone is hidden inside the vehicle, the hidden person's heart will produce a rhythmic beating, this vibration will be transmitted to the vehicle's suspension, the bottom of the carriage and other locations, by connecting the sensor and the vehicle under test, this vibration will be collected and transmitted back to the data analysis equipment through the data cable, analysis software for analysis, analysis software computing range precisely focused on the frequency range of the heartbeat, based on this vibration analysis, in the display terminal can clearly show whether someone exists, and accompanied by sound alarm.

感应方式：通过感应器感应被测物体传导的有节律的心跳震动进行分析

感应目标：人类（藏匿者所处位置、姿态、身体状况不对测试结果产生必然影响）

侦测车型：所有车型（轿车、客车、货车、箱式集装箱等）

感应器数量：车辆感应器 4个，地面感应器1个，提供IP66防尘防水认证。风力IEPE传感器1个。

检测时间：每次完成检测时间≤30秒

显示终端：触摸屏工控机

报警模式：检测到人藏匿时，声音、灯号及明确的屏幕显示报警。

软件：界面友好的汉化软件。

车辆数据管理功能：系统支持车辆出入管理功能，可对进出车辆实现登记、测试记录、结果输出、备份，登陆人员管理等功能

设备连接模式：进口电缆及线缆箱连接，线缆覆盖物理测试距离不小于15米，线缆轴采用可弹回式，便于使用。

环境震动减弱功能：软件内部设置环境因素减弱功能，可将环境影响通过软件进行有效弱化

工作时间：可全天候24小时工作

供电方式：90v-260v交流电

操作人员：经过培训后可实现单人操作

Sensing method: The rhythmic heartbeat vibrations conducted by the inductor to the object under test are analyzed.

Sensing target: human (the location, posture and physical condition of the person hiding does not necessarily affect the test results)

Detection models: all models (cars, buses, trucks, box containers, etc.)

Number of sensors: 4 vehicle sensors, 1 ground sensor, IP66 dust and waterproof certification provided 1 wind IEPE sensor.

Detection time: ≤ 30 seconds per completion of the detection time

Display terminal: touch screen industrial control computer

Alarm mode: sound, light signal and clear screen display alarm when human hiding is detected

Software: Chinese software with friendly interface.

Vehicle data management function: the system supports the vehicle access management function, which can realize the registration, test record, result output and backup for incoming and outgoing vehicles, and login personnel management, etc.

Equipment connection mode: imported cable and cable box connection, cable coverage physical test distance of not less than 15 meters, the cable shaft using a reboundable type, easy to use

Environmental vibration attenuation function: software internal setting environmental factors attenuation function, can be environmental impact through the software to effectively weaken

Working time: 24 hours a day

Power supply mode: 90v-260v AC power

Operators: single person operation after training
