一：功能介绍
1、精度：最高灵敏度在门的正中间可以检测到一根大头针（或者1/2）回型针，可以做到走一百次检测到一百次，不会漏报和串报。也可以排除皮带扣、皮鞋、文胸等的影响，检测到150克以上的铜、铝、锌等金属或者管制刀具和枪支。
2、六区位显示：产品分成六个防区，可疑物体能在每个区域准确显示。

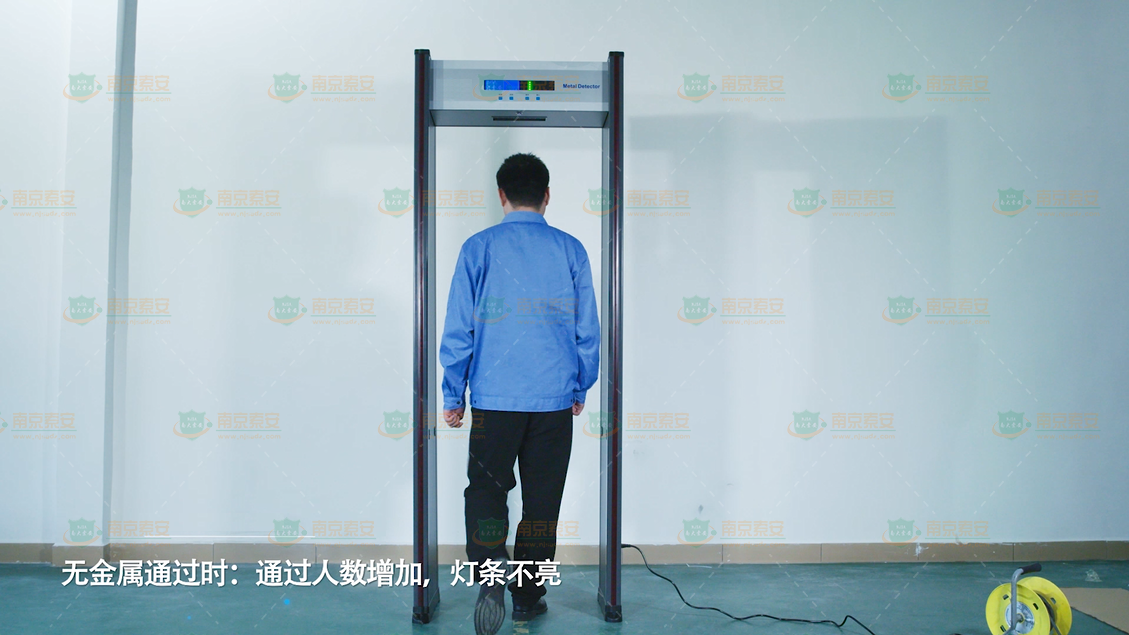

3、统计人数：双侧对射红外可以检测到通过人数和报警人数，走100人计100人,不会多计或者少计。
4、防震设计：站在门的中间，用手拍两侧门板，门不会误报。
5、灵敏度调节：灵敏度可以根据需要调整，共有一百级灵敏度。

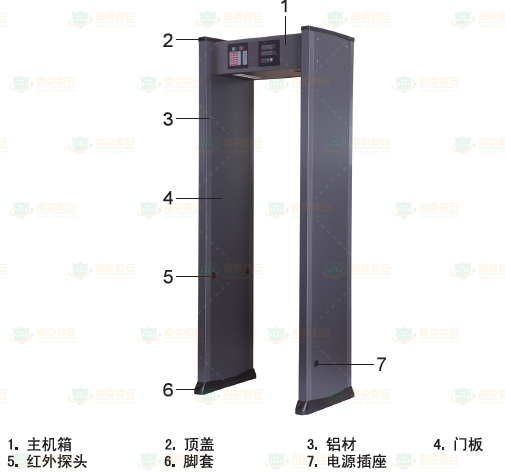

6、门体材质：防火板，外加防水膜，里面有铝合金支柱，不变形，防火、防潮。

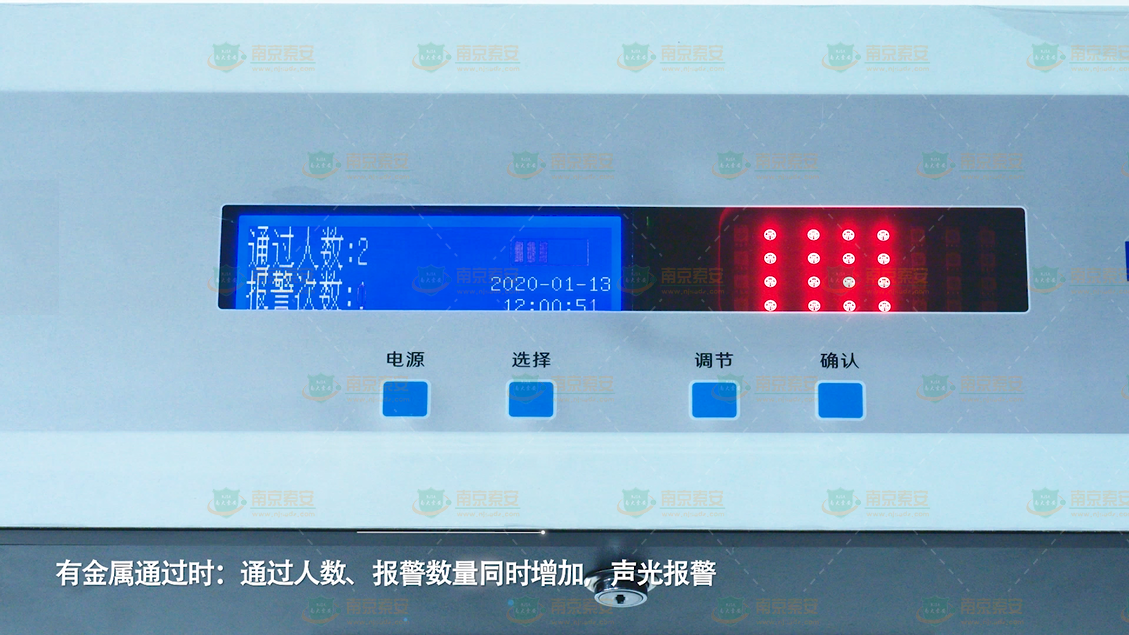

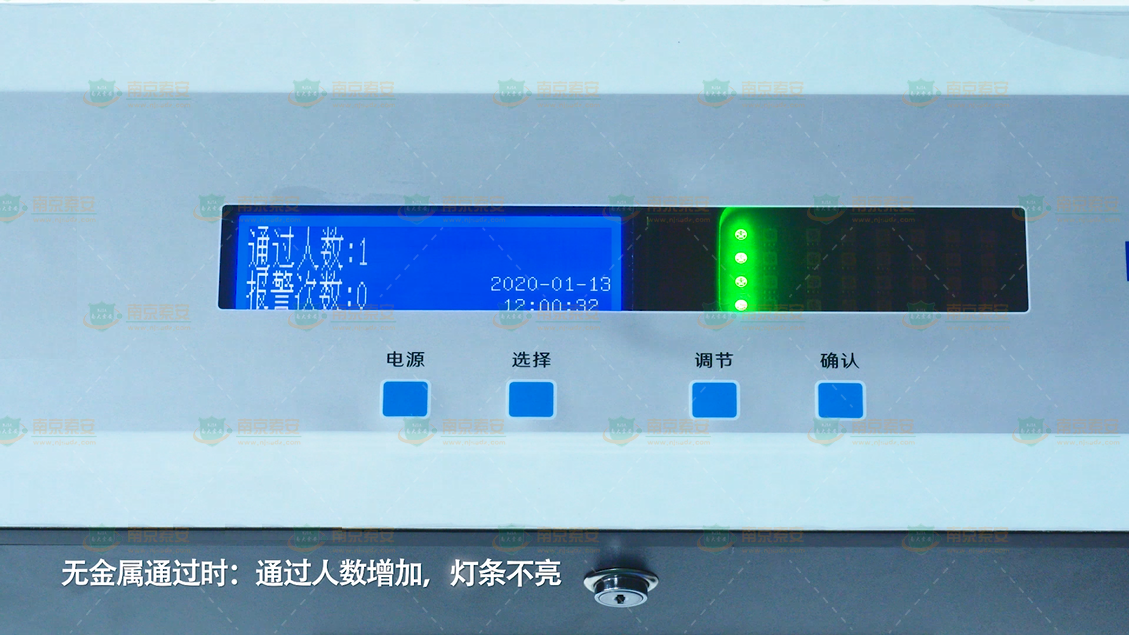

7、面板显示：高亮度数码显示通过人数和报警人数以及报警区位。
8、声光同时报警，可以在门顶部显示报警区域。
9、可以选配遥控器对参数进行控制。参数可设密码保护，使非授权人员无法操作。
10、预留通讯接口，可以与电脑、摄像头、三轧辊等连接。
11、针对各种使用环境的电磁干扰，整个系统采用了电磁兼容设计，并使用DSP处理器对违禁物品的采样信号进行相关运算和滤波，从而使得整套设备具有较好的电磁抗干扰能力。
12、可设定多组工作频率，使得多台设备并排相邻工作时，互不干扰。
13、对心脏起博器佩带者、孕妇、磁性介质等无害。

A: Function introduction

1, accuracy: the highest sensitivity in the middle of the door can detect a large head pin (or 1/2) back to the needle, you can do a hundred times to go to detect a hundred times, will not miss and string report. Can also exclude the impact of belt buckles, leather shoes, bras, etc., to detect more than 150 grams of copper, aluminum, zinc and other metals or control knives and firearms.

2、Six-zone display: The product is divided into six defense zones, and suspicious objects can be accurately displayed in each zone.

3, the number of statistics: double-sided infrared can detect the number of people passing and the number of alarms, walking 100 people counting 100 people, will not be over-counted or under-counted.

4, anti-shock design: stand in the middle of the door, with hands on both sides of the door panel, the door will not false alarm.

5, sensitivity adjustment: sensitivity can be adjusted according to needs, a total of one hundred levels of sensitivity.

6, door body material: fireproof board, plus waterproof film, aluminum alloy pillar inside, not deformed, fireproof, moisture-proof.

7、Panel display: high-brightness digital display of the number of people passing through and the number of alarms and alarm zones.

8, sound and light at the same time alarm, can display the alarm area at the top of the door.

9、Remote control of parameters can be optional. Parameters can be password protected so that unauthorized personnel cannot operate.

10、Communication interface is reserved, which can be connected with computer, camera, three rollers, etc.

11、For the electromagnetic interference of various use environments, the whole system adopts electromagnetic compatibility design, and uses DSP processor to perform relevant operation and filtering on the sampling signal of prohibited items, thus making the whole set of equipment with good electromagnetic anti-interference ability.

12、Multiple sets of working frequencies can be set, making multiple devices work side by side adjacent to each other without interference.

13, harmless to cardiac pacemaker wearer, pregnant women, magnetic media, etc.

二：技术标准
★ 电器参照EN60950安全标准执行。
★ 辐射参照EN50081-1标准执行。
★ 抗干扰参照EN50082-1标准执行。
★ 严格执行现行通过式金属探测器国家标准。
★ 全面通过ISO9001：2000质量管理体系认证。
★ 全面通过欧盟CE认证。

B: Technical standards:

★ Electrical appliances refer to EN60950 safety standards.

★ Radiation refer to EN50081-1 standard

★ Anti-interference refer to EN50082-1 standard implementation.

★ Strictly implement the current national standards for pass-through metal detectors.

★ Fully passed ISO9001:2000 quality management system certification.

★ Fully passed the EU CE certification.

三：技术参数
1、外接电源：             215V - 230V 　　50/60Hz
2、功耗：                 35W
3、工作环境：             -35℃─55℃
4、运输全重：             约95kg
5、工作频率：             根据安装环境自行调节
6、整机重量：             约90kg
7、外形尺寸：             (mm)2220(高) x 820(宽) x 522(深)
8、通道尺寸：             (mm)2000(高) x 700(宽) x 522(深)

C.Technical parameters

1、External power supply:            215V - 230V 50/60Hz

2、Power consumption:                35W

3、Working environment:             -35℃─55℃

4、Transportation weight:             about 95kg

5、Working frequency:                  self-adjustment according to the installation environment

6、Weight of the whole machine: about 90kg

7、Exterior dimensions:                (mm) 2220(H) x 820(W) x 522(D)

8、Channel size:                            (mm) 2000(H) x 700(W) x 522(D)
