经典重承载固定地埋款车底监控拍照系统Classic Heavy Duty Fixed Underground Vehicle Chassis Monitoring and Photographing System

产品简介JZ600-D5系列车辆底盘安全检查监控拍照系统(又名:车底监控、地埋摄像机、车底安检、车底探测器、车底检查、车底反藏匿)是一套集自动对车辆底盘进行图像采集、显示、控制、录像、抓拍为一体的车辆安检管理系统。该系统能有效防止车底藏匿炸弹、武器、生化危险品、危险人物出入重要场所;

在线订购

产品简介

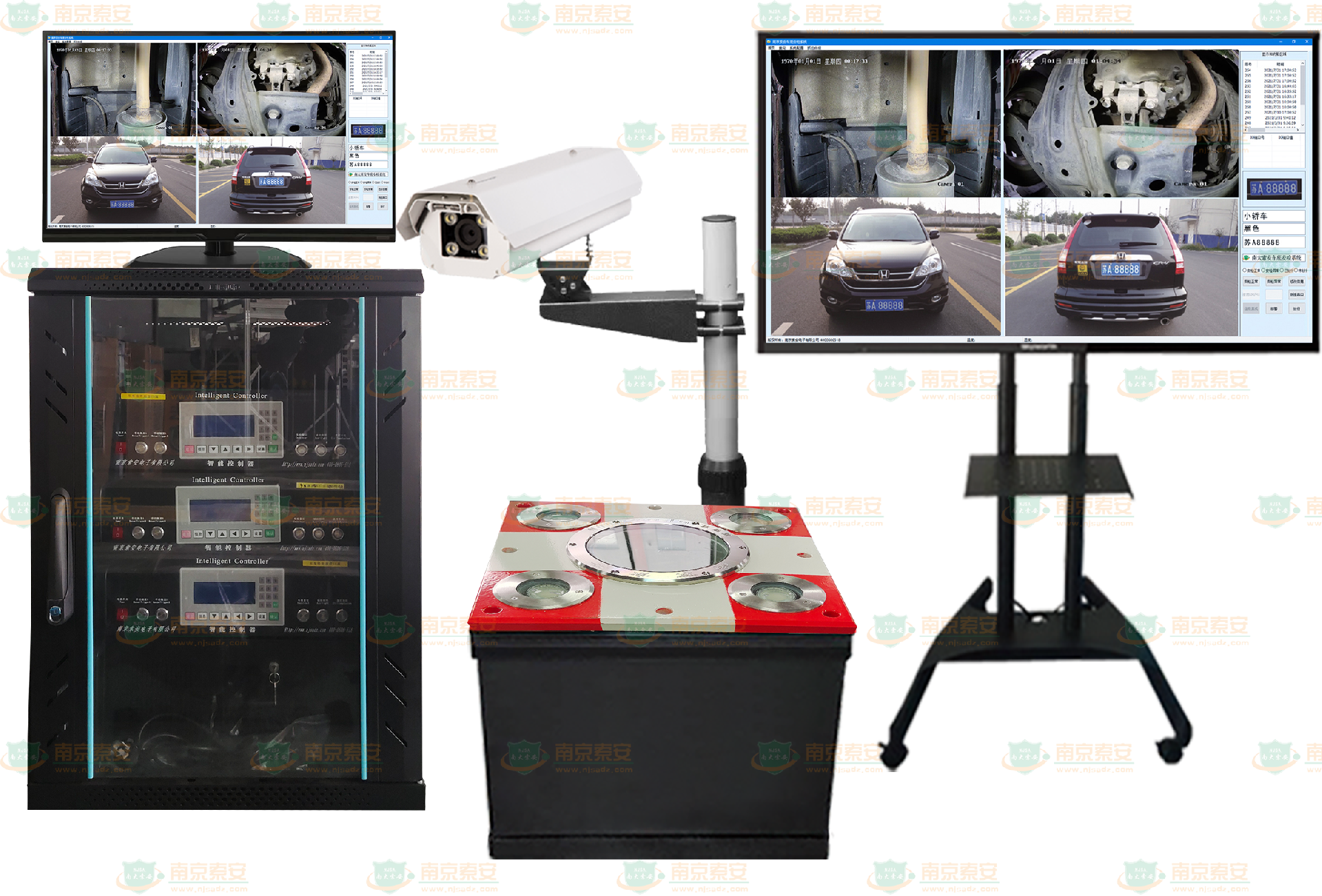

       经典重承载固定地埋款车底监控拍照系统(又名:车底监控、地埋摄像机、车底安检、车底探测器、车底检查、车底反藏匿)是一套集自动对车辆底盘进行图像采集、显示、控制、录像、抓拍为一体的车辆安检管理系统。该系统能有效防止车底藏匿炸弹、武器、生化危险品、危险人物出入重要场所;防止车底携带毒品、非法走私物乃至非法移民通过检查站,该产品具有成像清晰度高、系统运行稳定可靠、安装简单快捷等特点。适用于弹药库、军事基地、军工电子研究所等军事保护目标,监狱、看守所、法院等政法单位,大型展览馆、博物馆,及银行金库等金融等领域的主通道或出入口,用以监视检查车辆底部和其它目标,防脱逃防防潜入。

Product Description

Classic heavy load fixed buried models of vehicle chassis monitoring photo system (also known as: vehicle chassis monitoring, buried cameras, vehicle chassis security check, vehicle chassis detector, vehicle chassis inspection, vehicle chassis anti-hiding) is a set of automatic vehicle chassis image acquisition, display, control, video, capture as one of the vehicle security management system. The system can effectively prevent the vehicle chassis to hide bombs, weapons, biochemical hazards, dangerous people in and out of important places; to prevent the vehicle chassis to carry drugs, illegal smuggling and even illegal immigrants through the checkpoints, the product has a high degree of clarity of imaging, stable and reliable operation of the system, simple and fast installation and so on. D5jisnk.png

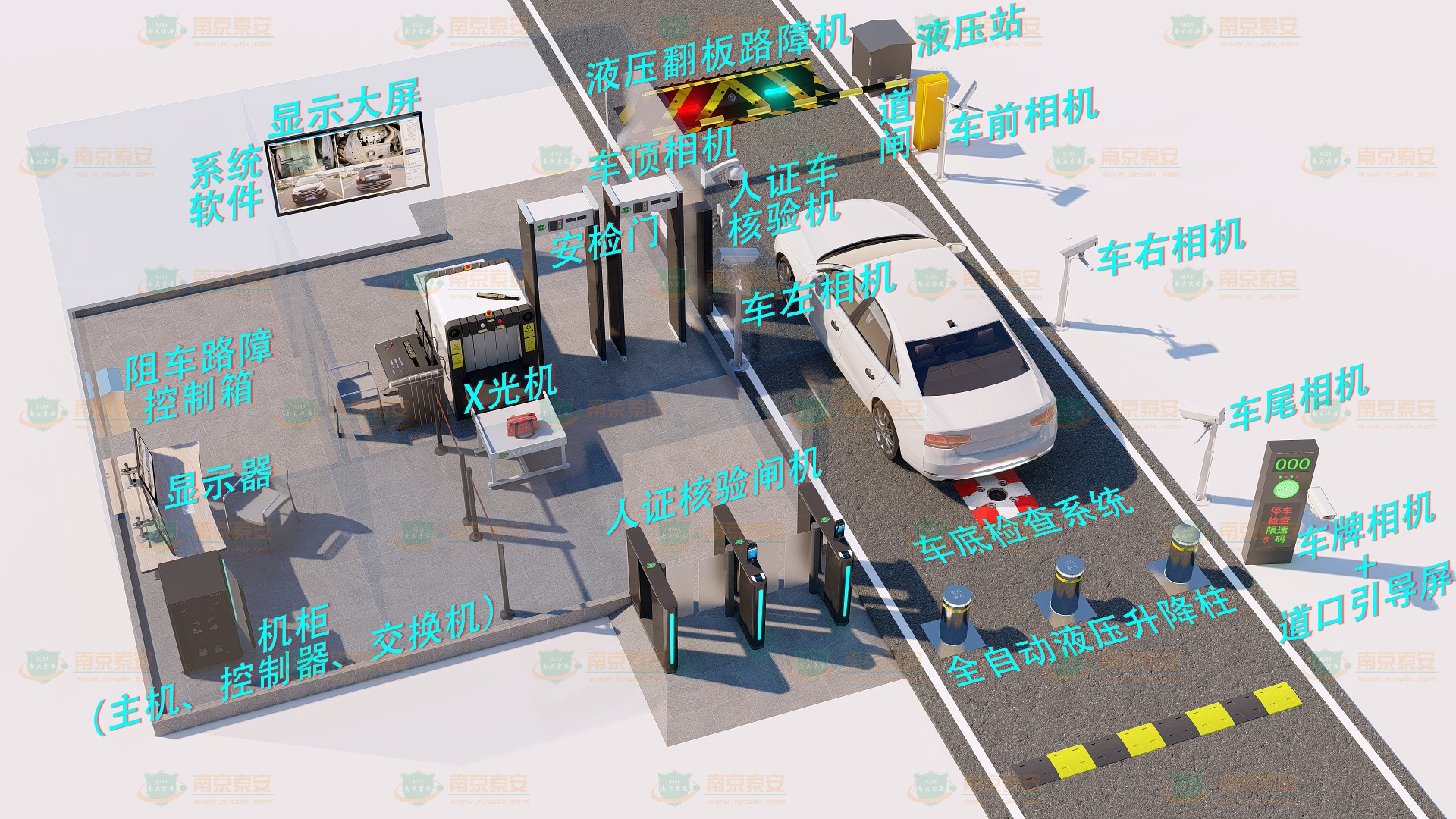

应用场景:

1、国家大型会议、运动会、展会等活动的车辆出入口的临时安全防范、反恐检查;

2、监狱、看守所、戒毒所等的临时出入口防逃检查;

3、机场、政府、银行库区、保税区、大使馆、港口码头、车站、军队、公安等重点场所的出入口、停车场的反恐防夹带检查;

4、海关、边检口岸的检查卡口的临时防走私、反偷渡检查;

5、交通安全检查站、车辆检测中心、4S店维修车间、新能源换电站等的车辆性能检测。

Application Scenario:

1. Temporary security prevention and anti-terrorism checks at the entrances and exits of vehicles for large national conferences, games, exhibitions and other events;

2, The temporary entrance and exit of prisons, detention centers, drug rehabilitation centers, etc. to prevent the escape check;

3, Anti-terrorism anti-entrapment inspection of entrances and exits, parking lots of key places such as airports, governments, bank depots, bonded areas, embassies, port terminals, stations, military and public security;

4, Customs, border control ports of the checkpoint temporary anti-smuggling, anti-smuggling checks;

5, Vehicle performance inspection at traffic security checkpoints, vehicle testing centers, 4S store maintenance workshops, new energy exchange stations, etc.



产品参数

  • 所有内部部件都已经过防腐、防渗透、热镀锌、静电喷涂等处理

  • 镜头:水平视场角180°,垂直视场角100°

  • 补光:4或2个LED补光灯,采用智能自动感应式补光

  • 通用功能:防闪烁,镜像,密码保护,视频遮盖,水印技术,IP地址过滤

  • 图像:分辨率不低于2560 × 1440@25fps,在该分辨率下可输出实时图像码流平滑设置,适应不同场景下对图像质量,流畅性的不同要求

  • 安全服务:支持三级用户权限管理,支持授权的用户和密码,支持IP地址过滤

  • 支持HTTPS等安全认证,支持创建证的书;初始设备开机修改密码,保障密码安全

  • 支持用户登录锁定机制。

  • 面板采用20MM以上厚度的军用优质高强度抗压耐磨防腐金属钢板,保护装备,可承受56吨以上大车碾压。

  • 监控视窗采用防积水台阶式纳米技术的高透明高强度抗压耐磨可电加热除雾的全景视窗。

  • 高强度结构,全密封体模块化设计,用于各种条件恶劣或危险工作的地方;

  • 内置超宽视角无畸变级高清数字摄像机 自动光圈/自动背光补偿;

  • 军用级坚固金属部件,分体单元设计,全密封结构,防水、防腐蚀、防震、防压、防冷凝;

  • 可通过地感、无线雷达、激光探测、智能检测可智能检测车辆来去并自动启用关闭辅助大功率面光源照明;

  • 内置温度、湿度探测器,可自动控制加热、除湿等,在室外路面不再担心冷凝现象;

  • 双向抗碾压保护设计,各个单体封闭模块可在受到轮胎外力后进行自动升降;

  • 独创的安装使用方式,适用于弹药库、军事基地、军工电子研究所等军事保护目标,监狱、看守所、法院、检察院、公安等政法单位,大型展览馆、博物馆,及银行金库等金融等领域的主通道或出入口,用以监视检查车辆底部和其它目标,防脱逃、防渗透潜入等反恐安检;

  • 室内/室外全天候使用:防水、防腐蚀、防震、防压、防冷凝抗高低温

  • 辅助照明控制:手动、自动(雷达、激光)

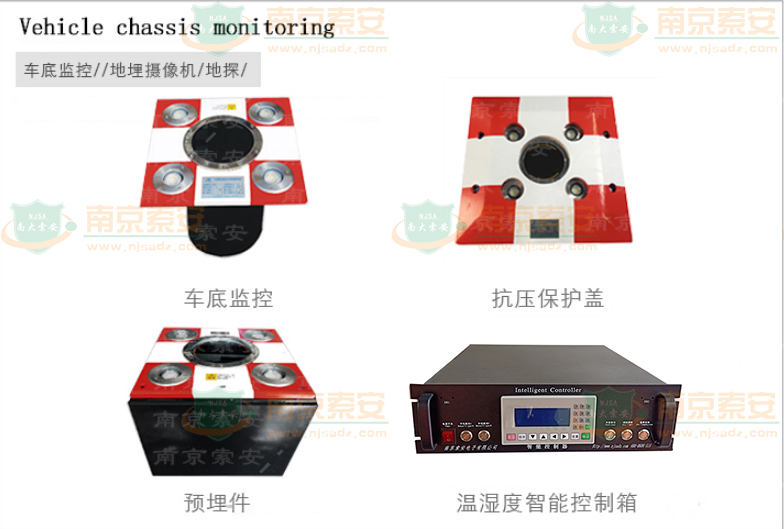

  • 1A D5-1 (2).jpg

Product Parameters

  • All internal parts have been treated with anti-corrosion, anti-penetration, hot-dip galvanization, electrostatic spraying and so on.

  • Lens: Horizontal field of view 180 °, vertical field of view 100 °

  • Fill light: 4 or 2 LED fill light, using intelligent auto-sensing fill light

  • General features: anti-flicker, mirroring, password protection, video masking, watermarking technology, IP address filtering

  • Image: resolution of not less than 2560 × 1440 @ 25fps, in the resolution of the output real-time image stream smoothing settings, to adapt to different scenarios on the image quality, smoothness of different requirements

  • Security services: support for three-level user rights management, support for authorized users and passwords, support for IP address filtering.

  • Support HTTPS and other security authentication, support for the creation of the certificate of the book; initial equipment to change the password on boot, to protect the password security.

  • Support user login locking mechanism.

  • Panel using more than 20MM thickness of the military high-quality high-strength pressure-resistant wear-resistant corrosion-resistant metal steel plate to protect the equipment, can withstand more than 56 tons of large vehicles crushed.

  • The monitoring window adopts waterproof step-type nanotechnology with high transparency, high strength, anti-pressure, wear-resistant, electrically heated and defogged panoramic window.

  • High-strength structure, fully sealed body modular design, for a variety of harsh conditions or dangerous work place;

  • Built-in ultra-wide viewing angle distortion-free grade HD digital camera Auto iris/auto backlight compensation;

  • Military grade rugged metal parts, split unit design, fully sealed structure, waterproof, corrosion-proof, shockproof, pressure-proof, condensation-proof;

  • Can be detected by ground sensing, wireless radar, laser detection, intelligent detection can be intelligent detection of vehicles coming and going and automatically enable the closure of the auxiliary high-power surface light source lighting;

  • Built-in temperature, humidity detector, automatic control of heating, dehumidification, etc., no longer worry about condensation phenomenon in the outdoor road surface;

  • Two-way anti-roller protection design, each single closed module can be automatically raised and lowered after being subjected to external tire force;

  • Innovative installation and use, suitable for ammunition depots, military bases, military electronics research institutes and other military protection targets, prisons, detention centers, courts, procuratorates, public security and other political and legal units, large exhibition halls, museums, and bank vaults and other financial and other areas of the main corridor or entrance and exit to monitor and inspect the bottom of the vehicle and other targets, anti-defection, prevent infiltration of anti-terrorism security checks;

  • Indoor/outdoor all-weather use: waterproof, corrosion-resistant, shockproof, anti-pressure, anti-condensation and anti-high and low temperature.

  • Auxiliary lighting control: manual, automatic (radar, laser)
