产品信息：

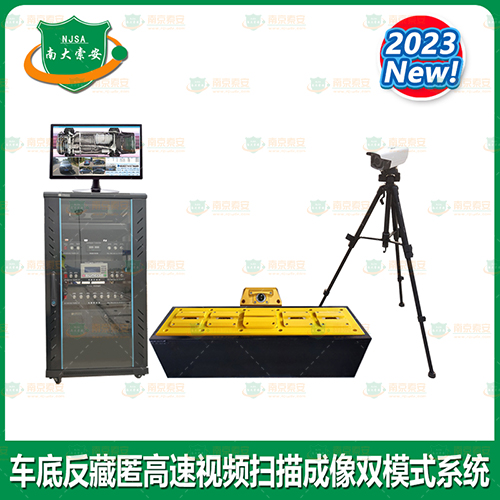

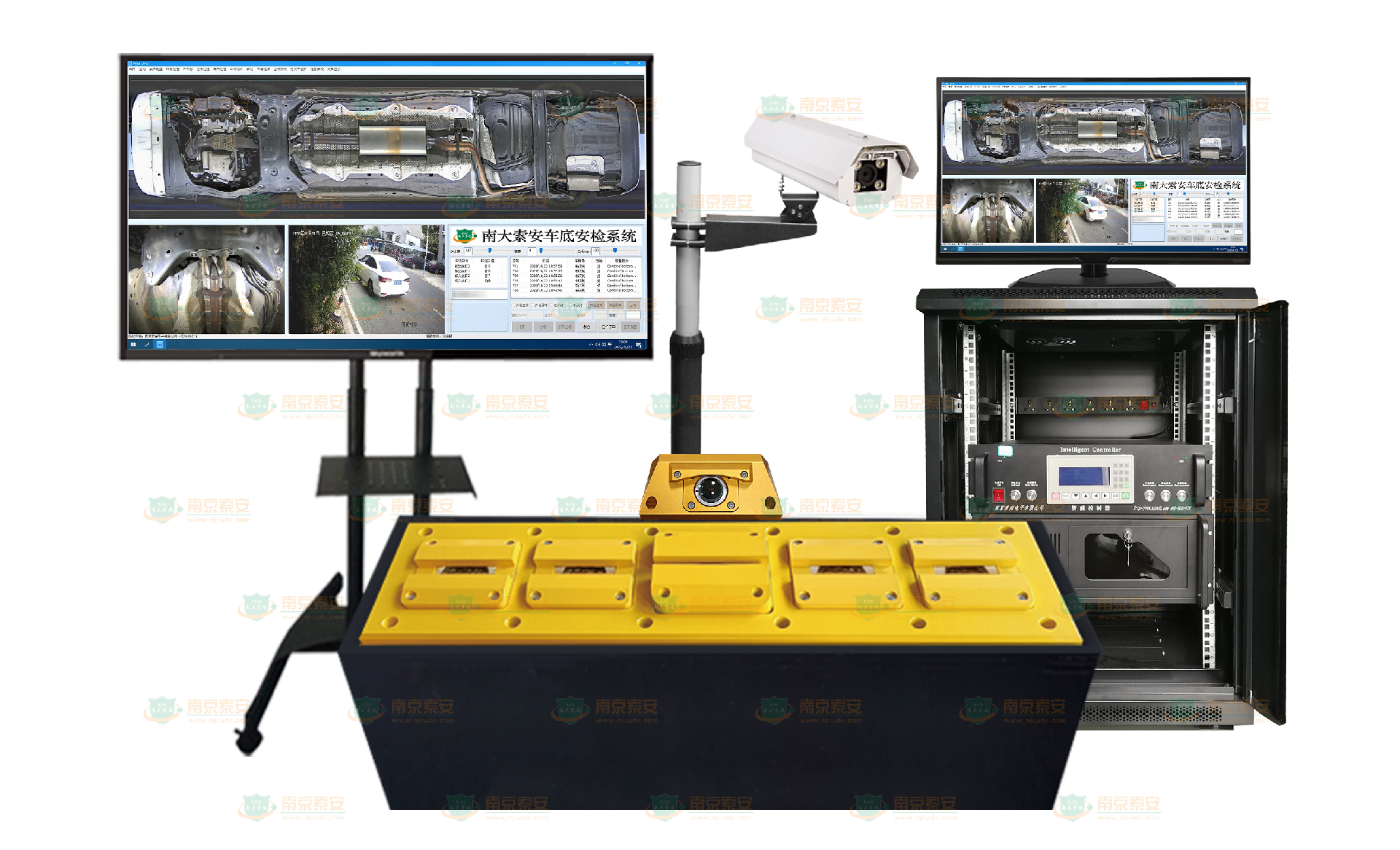

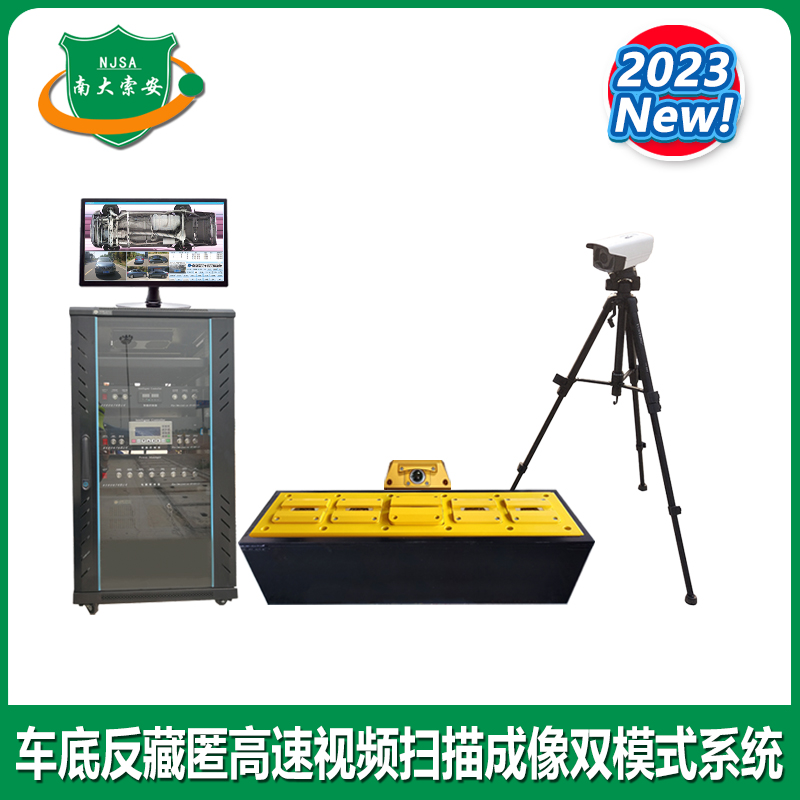

车底反藏匿高速视频扫描成像双模式系统是一套集自动检测车辆、并对车辆底盘进行图像采集、显示、拼接、抓拍汇总、比对报警、自动环控为一体的车辆安检系统。

该系统能有效防止车底藏匿炸弹、武器、生化危险品、危险人物出入政府机关、军事管理、银行库区、车站码头等重要安全保护场所；

防止车底携带毒品与枪支弹药等危险品、非法走私物乃至可疑人物通过海关、边防检查站，

防止被关押人员潜逃出监狱、看守所、戒毒所等；

同时可对列车、汽车等车辆底盘进行交通安全检测及车况质量检查评估等应用。

Product Information：

Vehicle Chassis Anti-Concealment High Speed Video Scanning Imaging Dual Mode System is a set of automatic detection of the vehicle chassis, and the vehicle chassis image acquisition, display, splicing, capture summary, compare the alarm, automatic loop control as one of the vehicle security system.

The system can effectively prevent the car underneath the hidden bombs, weapons, biochemical hazards, dangerous people in and out of government agencies, military management, bank warehouses, stations and terminals and other important security protection places;

Preventing the undercarriage of dangerous goods such as drugs and firearms and ammunition, illegal smuggled goods and even suspicious persons from passing through customs and border checkpoints.

Prevent detainees from absconding from prisons, detention centers, drug rehabilitation centers and so on;

At the same time, it can be applied to the chassis of trains, automobiles and other vehicles for traffic safety testing and quality inspection and assessment of vehicle conditions.

产品特点：

1、400万超高清像素;

2、高清视频监控抓拍与车底扫描成像的双模式关口监管要求；

3、可抗碾压自升降，可自动除尘；

4、车底盘180度全景；

5、可防水IP68，配置完备的温控系统可报警联动散热、除雾防冷凝；

6、可支持多个品牌的车底、车牌等采集相机接入，便于系统集成；

Product features:

1、4 million ultra-high-definition pixels;

2、High-definition video surveillance capture and vehicle chassis scanning imaging of the dual-mode gateway regulatory requirements;

3、Anti-crushing self-lifting, can automatically remove dust;

4、180 degree panoramic view of the vehicle chassis;

5、can be waterproof IP68, configured with a complete temperature control system can alarm linkage cooling, defogging anti-condensation;

6、can support multiple brands of vehicle chassis, license plate and other acquisition camera access, easy system integration;

应用场所：

监管区、看管所等的出入口防逃检查；

机场、机关单位、银行库区、油库、大使馆、港口、码头、车站、检查站等重点场所；重点部位的停车场入口；大型会议、运动会等活动的车辆出入口的安防检查；

口岸、边境的检查卡口防非准入境的人与物的检查；

新能源换电站、交通检查站、车辆检测站、4S店维修车间的车辆性能检测线。

Application place:

Anti-escape inspection at the entrances and exits of supervision areas and custody stations;

Airports, government agencies, bank districts, oil depots, embassies, ports, docks, stations, checkpoints and other key places; Parking lot entrances at key locations; Security inspection of vehicle entrances and exits for large meetings, sports meetings and other activities;

Inspection bayonets at ports and borders to prevent inspection of persons and things not permitted to enter the country;

Vehicle performance inspection line of new energy changing power station, traffic checkpoint, vehicle inspection station, 4S shop maintenance workshop.

产品介绍

1.拍摄车辆宽度： ≥4500mm；视场角度：≥180º；

2.拍摄车底高度：0~4500mm（适应不同底盘高度的车辆）；

3.车辆通过速度：（建议）1-120Km/h，正常情况下出入口车速控制≦30KM/h；

4.图象采集方式：车辆检测系统自动触发；

5.图片类型：彩色JPG等格式；图片失真：小于5%；

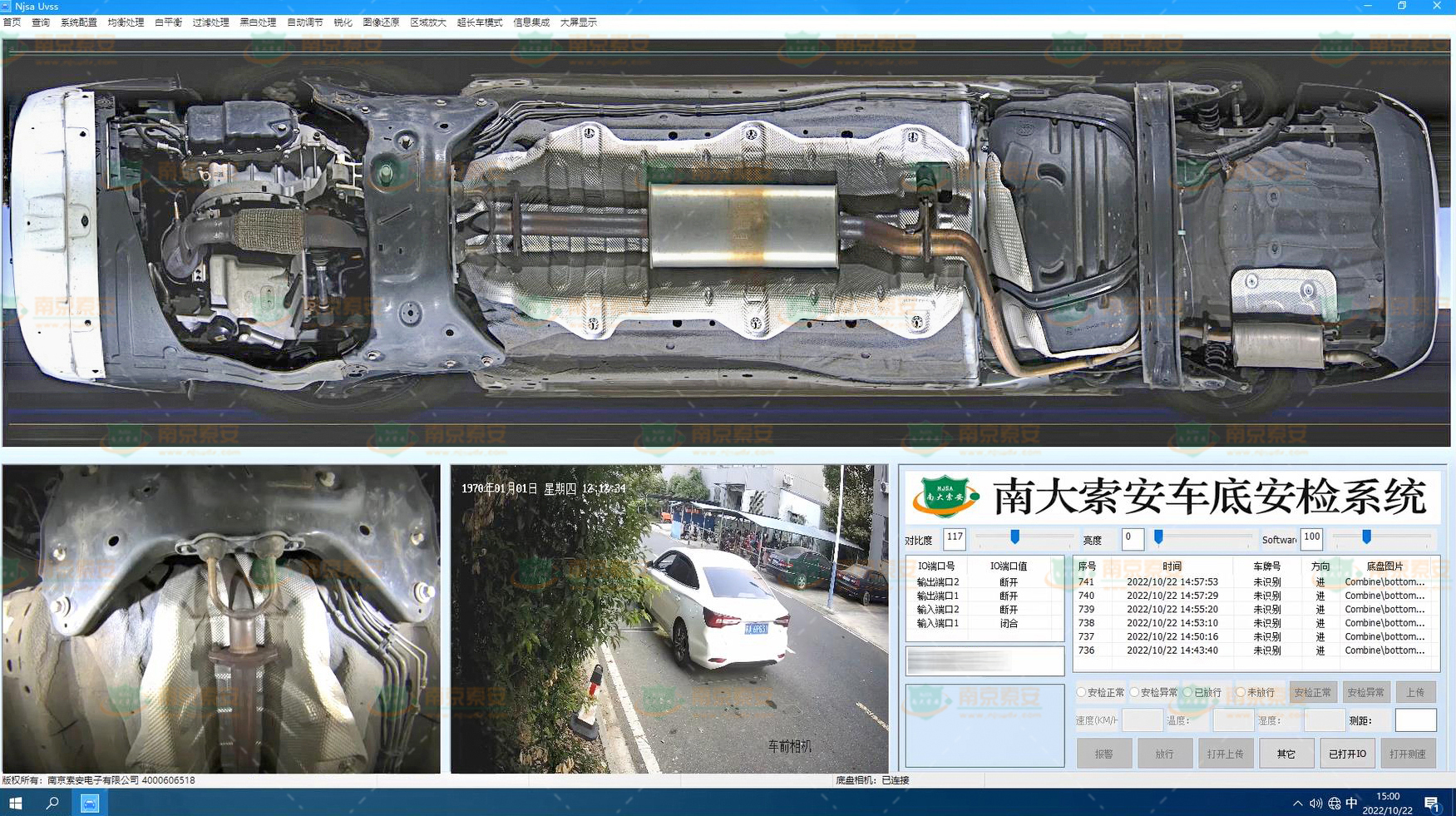

6.车底成像显示时间：< 1秒； 图像存储或载入时间：< 1秒；

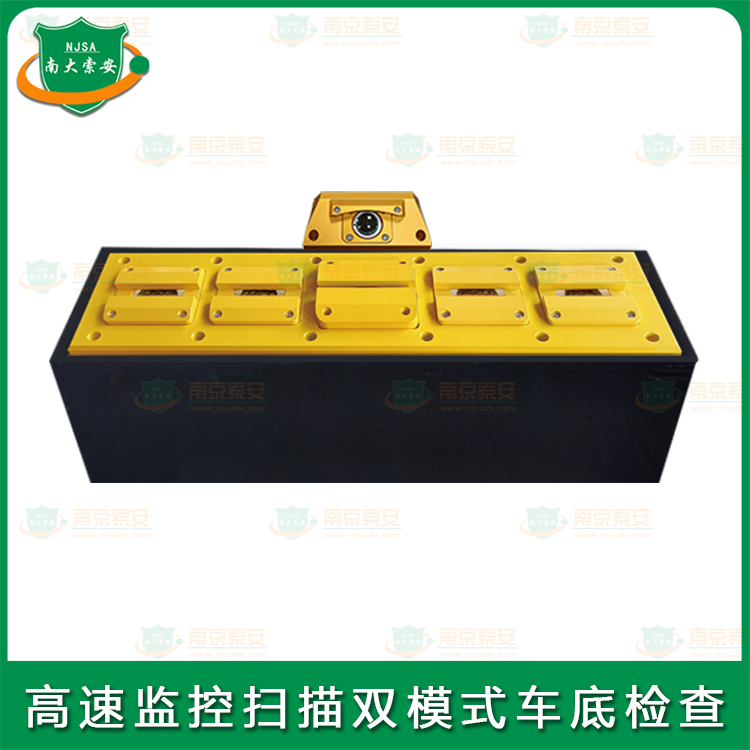

7.车底成像设备：采用高强度抗碾压并单体密封设计

8.车底成像设备表面结构采用方形高强度军用特级钢板护罩；底盘成像设备多重密封设计：防水、防尘、防潮、防雾；防尘防水等级：IP68(完全防尘、防水浸泡)；

9.操作系统支持：WINDOWS 7、10。

10.系统界面支持语言：可为全球用户定制中文、英文、俄文、德文、法文、阿拉伯文等多语文版本；

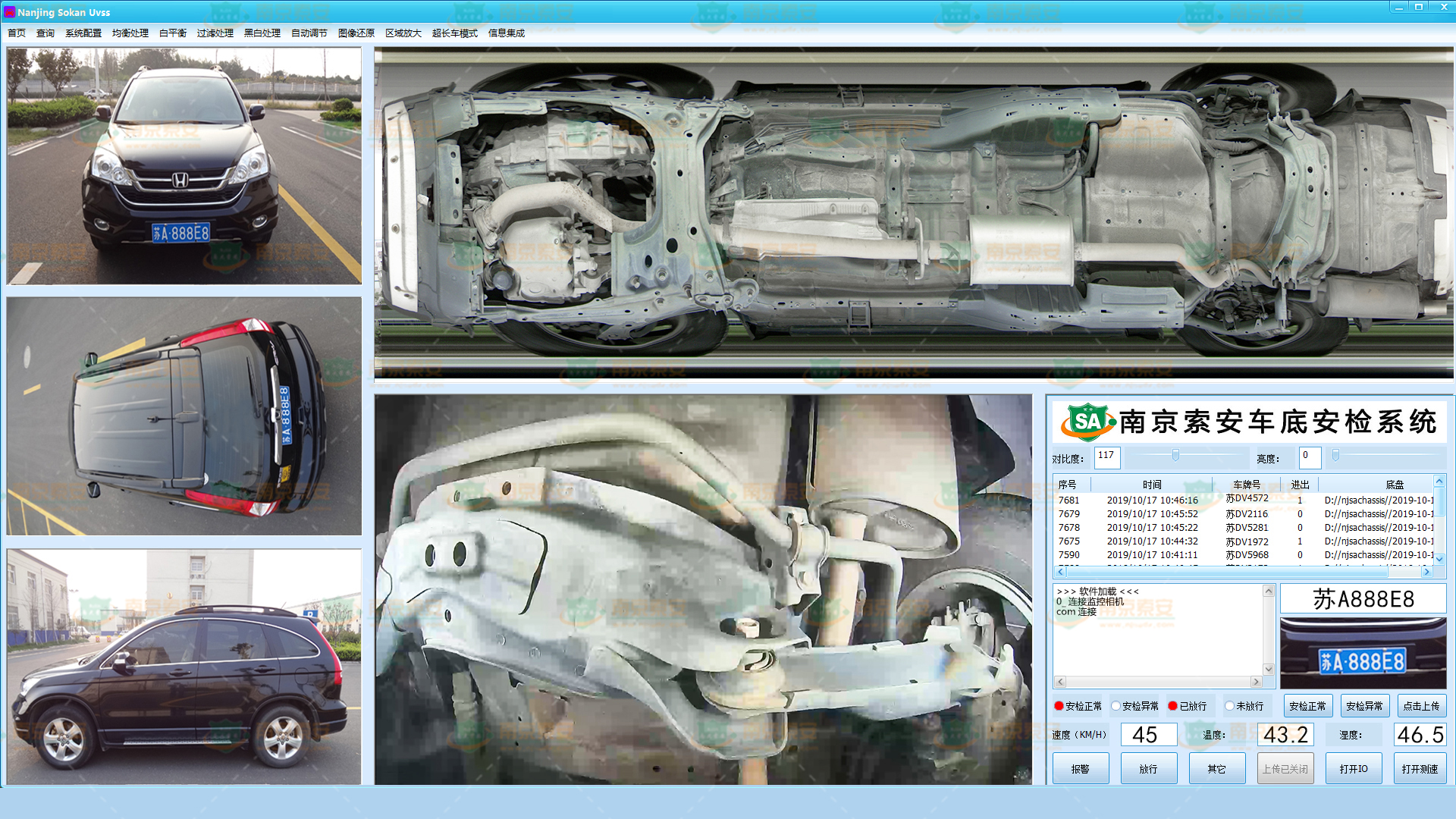

11.具有车辆全方位监控抓拍与录像、多制式车牌识别、自动检测状态显示、自动信息报播与交通信号灯指示、人证信息识别、全方位成像对比、人车证记录关联合成显示、道闸与反恐路障联动控制、白黑名单自动识别、各种高、低底盘成像检测、超长车显示模式切换、丰富的图像后期处理功能、车重检测与箱号识别、支持生命探测仪及整车X光机检测信息集成等；

12.支持多种道口管理模式：单向车道、进出混合车道、进出独立双向车道、多车道，并且支持进出场车辆信息管理；

13.工作环境：系统具有自动环境温度湿度探测及自动调节控制系统，能在-50℃~85℃的室内外全天候环境下正常工作。

Product introduction

1. Shooting vehicle width: ≥4500mm; field of view angle: ≥180º;

2. Shooting vehicle underbody height: 0~4500mm (adapted to vehicles with different chassis height);

3. Vehicle passing speed: (recommended) 1-120Km/h, under normal circumstances, the entrance and exit speed control ≦ 30KM/h;

4. Image acquisition method: automatically triggered by vehicle detection system;

5. Picture type: color JPG and other formats; picture distortion: less than 5%;

6. Vehicle chassis imaging display time: < 1 second; image storage or loading time: < 1 second;

7. Vehicle chassis imaging equipment: the use of high-strength anti-roller and monomer sealing design

8. Vehicle chassis imaging equipment surface structure using square high-strength military-grade steel plate shroud; vehicle chassis imaging equipment multiple sealing design: waterproof, dustproof, moisture-proof, anti-fog; dustproof and waterproof grade: IP68 (completely dustproof, water immersion);

9. Operating system support: WINDOWS 7, 10.

10. System interface support language: can be customized for global users of Chinese,

11. With a full range of vehicle monitoring capture and video recording, multi-standard license plate recognition, automatic detection status display, automatic information broadcasting and traffic light indicators, identification of human evidence information, all-round imaging comparison, human-vehicle evidence records associated with the synthetic display, road gates and anti-terrorism barricade linkage control, white and black list of automatic identification, a variety of high and low chassis imaging detection, ultra-long car display mode switching, a wealth of post-processing of images Functions, vehicle weight detection and box number identification, support for life detectors and vehicle X-ray machine testing information integration;

12. Support a variety of roadway management modes: one-way lanes, in and out of mixed lanes, in and out of independent two-way lanes, multi-lane, and support for the entry and exit of vehicle information management;

13. Working environment: the system has an automatic environment temperature and humidity detection and automatic adjustment control system, can be in -50 ℃ ~ 85 ℃ indoor and outdoor all-weather environment under normal work.
