系统可以精准高效地将车辆底盘、车顶等部位的图像显示出来，同时与数据库底盘等图像进行比对，可对异物自动识别、自动语音报警。扫描成像速度快，可在不同复杂环境条件下采用不同方式进行扫描，车辆底盘图像清晰可识别到线性0.5mm物体大小，所有藏匿在车辆底盘内的危险物品一览无余。

The system can accurately and efficiently display the image of the vehicle chassis, roof and other parts of the vehicle, while comparing with the database chassis and other images, can automatically identify foreign objects, automatic voice alarm. Scanning imaging speed, can be in different complex environmental conditions using different ways to scan, vehicle chassis image clear can be identified to linear 0.5mm object size, all hidden in the vehicle chassis of dangerous goods at a glance.

系统设计开发的目的

当前边防检查站、口岸、机关单位办公场所、民航机场、港口、车站及基地、驻外使馆、银行、珠宝及贵金属加工厂矿、科研及保密场所、大型会议及活动场馆、商业大厦、大型饭店宾馆、重要停车场、航天基地、核电站及其它重要安全保卫的场所。

其出入口车辆通道在对进出车辆底盘进行安全检查时 主要依靠内部保卫人员进行人工搜查，比较费力费时。因机动车辆底盘种类繁多，这就要求检查人员对各种车辆底盘具有相当的了解，且需要检查经验丰富又比较认真负责，而一般检查人员检查起来就会比较缓慢，且容易造成漏检现象。

目前即使少部分单位在出入口车辆通道受检区域的地面上安装了监控，但大都是一些非专业性、简易的监控，在实际应用中都成了摆设，不能有效地发挥监控检查作用，这样就容易造成漏检，易引发安全事故。

由于车辆底盘的隐蔽性加上现有监控检查系统的落后，罪犯利用底盘藏匿危险物品以及利用车辆底盘成功从监獄逃脱的案件，在全球有很高的发生率。

The purpose of system design and development：

At present, border checkpoints, ports, offices of government agencies, civil aviation airports, ports, stations and bases, embassies abroad, banks, jewelry and precious metal processing factories and mines, scientific research and security sites, large conference and activity venues, commercial buildings, large hotels and hotels, important parking lots, aerospace bases, nuclear power plants and other important places for security.

The entrance and exit vehicle channel mainly relies on the internal security personnel to carry out manual search during the safety inspection of the vehicle chassis, which is more laborious and time-consuming. Because of the wide variety of motor vehicle chassis, this requires inspectors to have a considerable understanding of various vehicle chassis, and the need for inspection experience and more serious and responsible, and general inspectors will be relatively slow to inspect, and easy to cause missed detection phenomenon.

At present, even if a small number of units have installed monitoring on the ground of the inspection area of the entrance and exit vehicle channels, most of them are non-professional and simple monitoring, which has become a decoration in practical applications, and can not effectively play the role of monitoring and inspection, which is easy to cause missed detection and easy to cause safety accidents.

Due to the concealment of the vehicle chassis and the backwardness of the existing monitoring and inspection system, there is a high incidence of criminals using the chassis to hide dangerous goods and successfully escape from prison using the chassis of the vehicle.

       南京索安电子有限公司通过长期从事车辆安全检查行业的技术防范装备实践，以及参与各地羁押场所AB门的车辆安全检查管理项目 的建设过程中的体会与思考，针对监所行业的车辆出入口车辆底盘检查隐患，导致全球羁押场所频发罪犯成功脱逃的恶性事故，认真研发对进出羁押场所出入口的车辆底盘如何进行科学、高效的安全检查的技术。

通过探索当前复杂的反恐形势下如何开展对车辆底盘进行有效的监控搜寻检查，如何能够快速准确的检查藏匿在车底的拟潜逃人员等具有重要的实际应用价值。

        该产品的研究成果有助于有效提高对车辆底部的安全检查速度，减少人力物力的投入，以便及时地防范、迅速处理各类隐患，并为日后案件的侦破工作提供相关线索，以确保羁押场所的安全稳定。

Nanjing Sokan Electronics Co., LTD., through the long-term practice of technical prevention equipment in the vehicle safety inspection industry, as well as the experience and thinking in the construction process of the vehicle safety inspection management project of AB gate in various places of detention, for the hidden dangers of vehicle chassis inspection at the entrance and exit of the prison industry, resulting in frequent malignant accidents in global detention places where criminals successfully escape. Seriously develop the technology of how to carry out scientific and efficient safety inspection on the chassis of vehicles entering and leaving the entrance of the detention place.

It has important practical application value to explore how to carry out effective monitoring, search and inspection of vehicle chassis under the current complex anti-terrorism situation, and how to quickly and accurately inspect the would-be absconders hiding under the vehicle.

The research results of the product help to effectively improve the safety inspection speed of the bottom of the vehicle, reduce the investment of human and material resources, in order to promptly prevent and quickly deal with all kinds of hidden dangers, and provide relevant clues for the detection of future cases to ensure the safety and stability of the detention place.

防止车底携带成瘾性违禁药品与武器、爆炸物等危险品、非法走私物乃至可疑人物通过口岸、边防检查站，防止被关押人员潜逃出羁押场所等。

开启车底安检智能预警功能后，车辆底盘扫描成像后，智能识别车底异物，以红框提示，可联动语音模块，警示音智能提示。

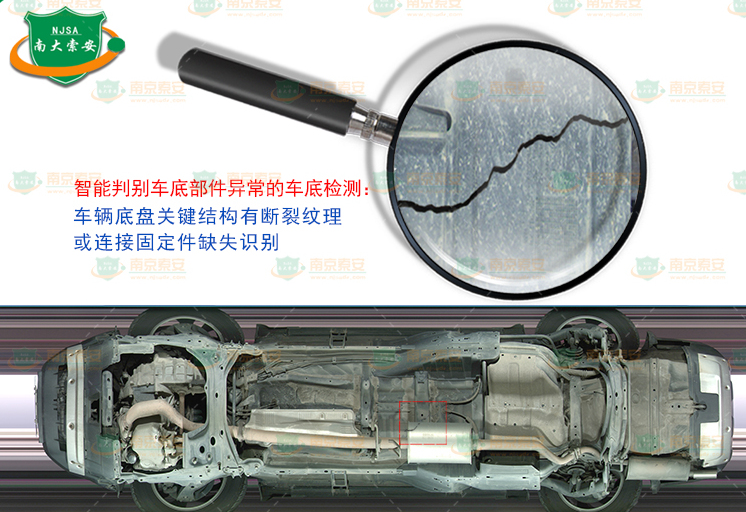

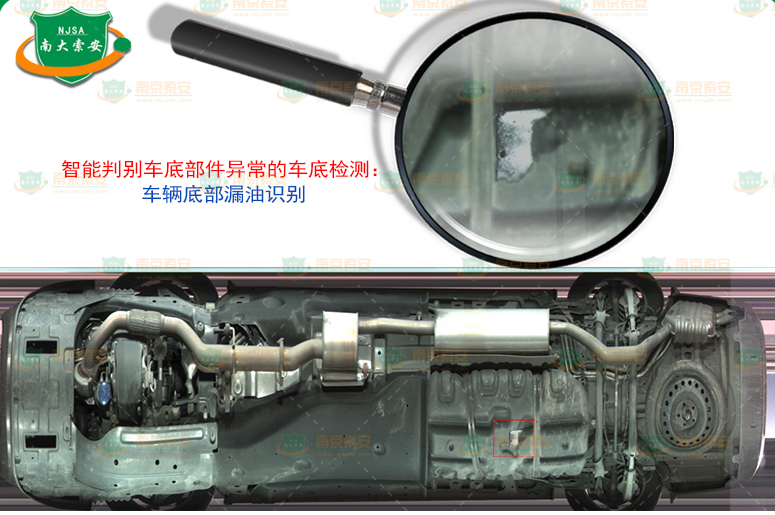

对于车底轮胎侧边破损、车辆底部漏油、车辆底盘关键结构有断裂纹理或链接固定件缺失，都可进行智能识别，框选并语音提示。

To prevent the vehicle from carrying addictive illicit drugs, weapons, explosives and other dangerous goods, illegal smuggled goods and even suspicious people through ports and border checkpoints, and to prevent detainees from escaping from detention places.

After opening the intelligent early warning function of the security check under the car, the vehicle chassis scanning imaging, intelligent identification of foreign bodies under the car, with a red box prompt, can be linked to the voice module, warning sound intelligent prompt.

For tire side damage, oil leakage at the bottom of the vehicle, fracture texture of key structure of the vehicle chassis or missing link fasteners, intelligent identification, frame selection and voice prompt can be carried out.

异物检测软件界面

Foreign body detection software interface
