产品信息

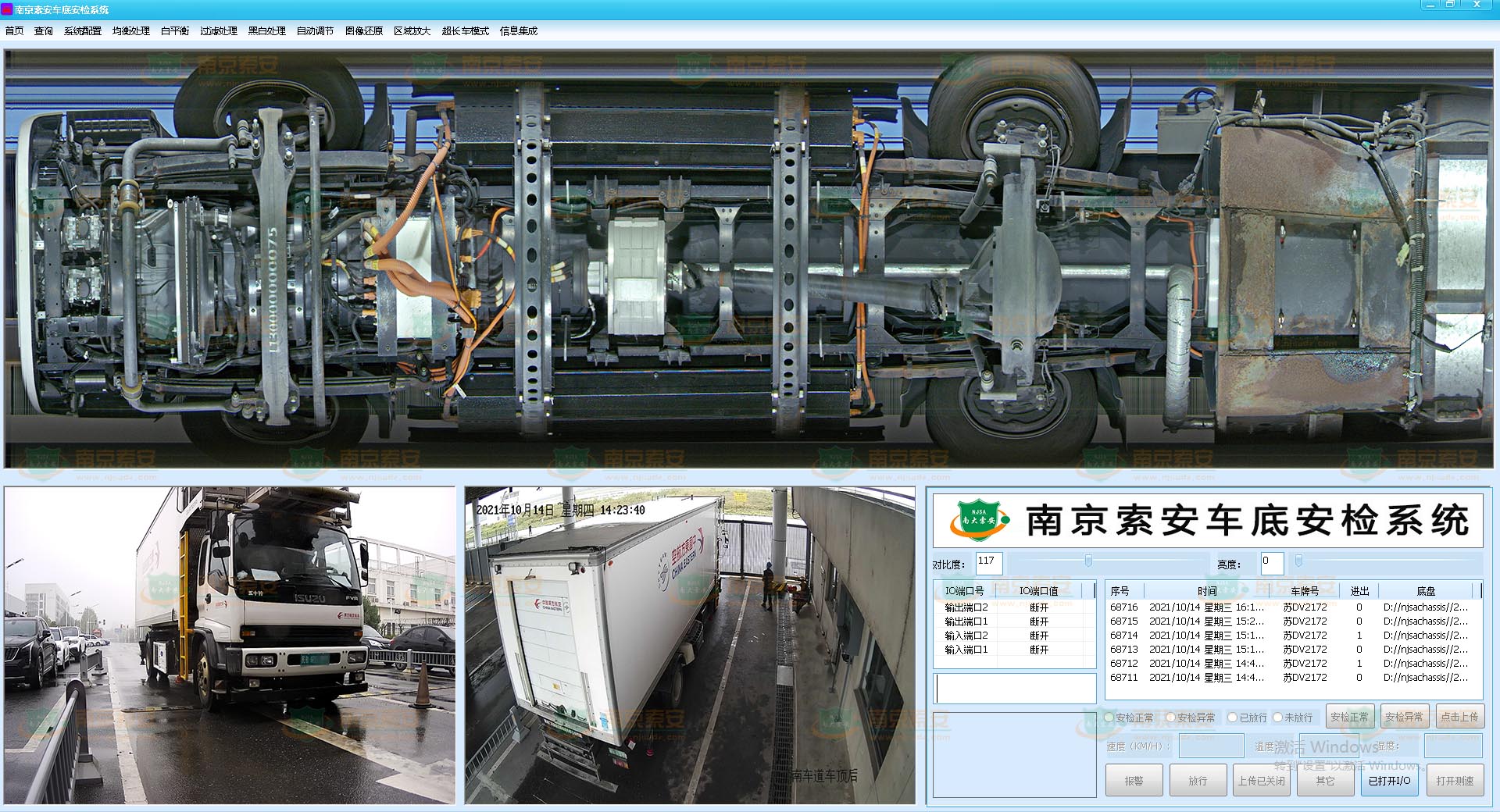

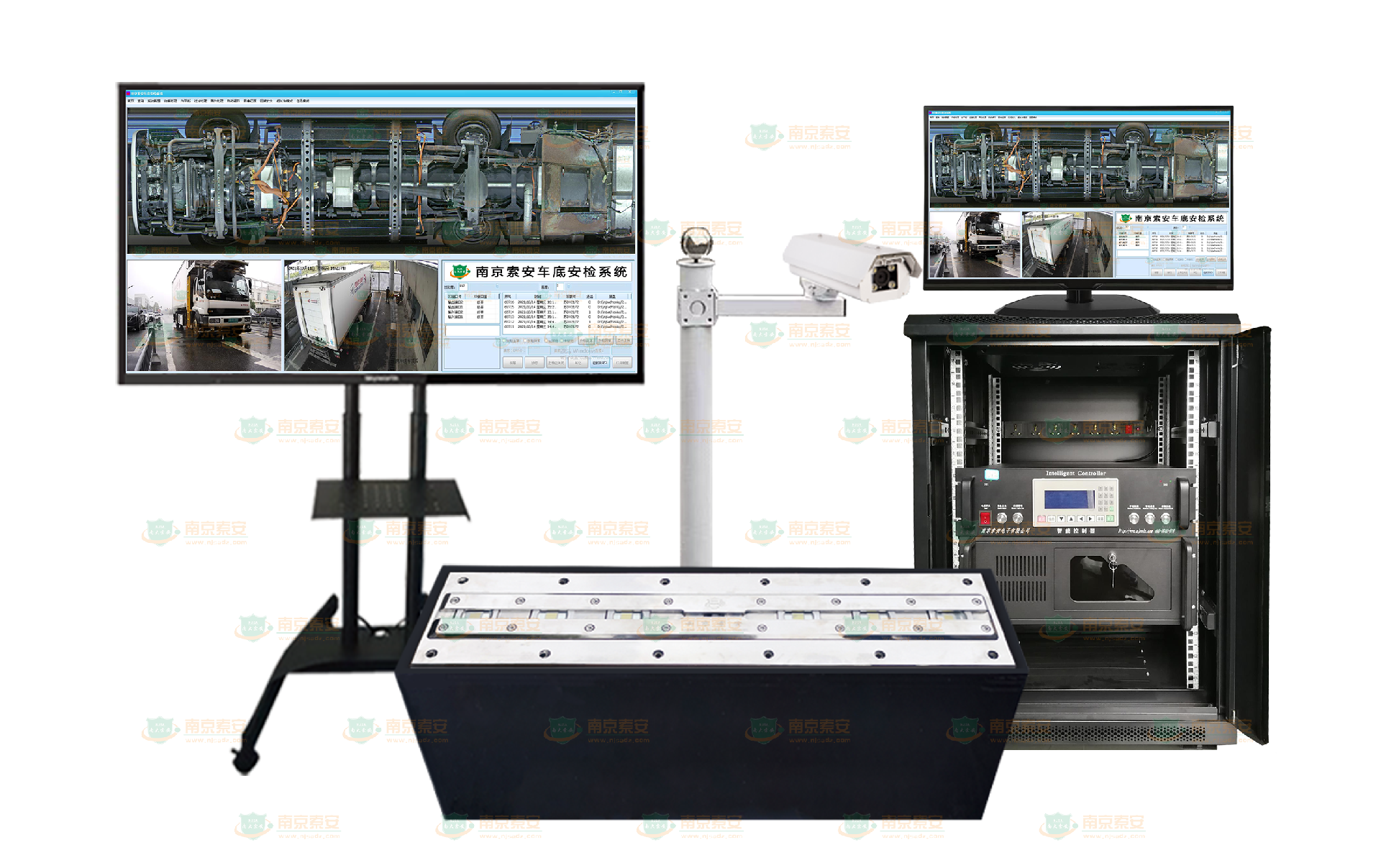

无障碍超高清固定地埋型高配扫描成像系统是一套集自动检测车辆、并对车辆底盘进行图像采集、显示、拼接、抓拍汇总、比对报警、自动环控为一体的车辆安检系统。

该系统能有效防止车底藏匿炸弹、武器、生化危险品、危险人物出入政府机关、军事管理、银行库区、车站码头等重要安全保护场所；

防止车底携带毒品与枪支弹药等危险品、非法走私物乃至可疑人物通过海关、边防检查站，

防止被关押人员潜逃出监狱、看守所、戒毒所等；

同时可对列车、汽车等车辆底盘进行交通安全检测及车况质量检查评估等应用。

Product Information

Accessible Ultra HD Fixed Underground Highly Equipped Vehicle Chassis Scanning Imaging System is a set of automatic detection of the vehicle chassis, and the vehicle chassis image acquisition, display, splicing, capture summary, compare the alarm, automatic loop control as one of the vehicle security system.

The system can effectively prevent the car underneath the hidden bombs, weapons, biochemical hazards, dangerous people in and out of government agencies, military management, bank warehouses, stations and terminals and other important security protection places;

Preventing the undercarriage of dangerous goods such as drugs and firearms and ammunition, illegal smuggled goods and even suspicious persons from passing through customs and border checkpoints.

Prevent detainees from absconding from prisons, detention centers, drug rehabilitation centers and so on;

At the same time, it can be applied to the chassis of trains, automobiles and other vehicles for traffic safety testing and quality inspection and assessment of vehicle conditions.

应用场景：

1、监狱、看守所、戒毒所等的出入口防逃检查；

2、机场、政府、银行库区、大使馆、港口、码头、车站、军队、公安等重点场所；重点部位的停车场入口；大型会议、运动会等活动的车辆出入口的安全防范、反恐检查；

3、海关、边检口岸的检查卡口防走私、反偷渡检查；

4、交通安全检查站、车辆检测中心、4S店维修车间、新能源换电站等的车辆性能检测线。

Application Scenario：

1，Escape prevention inspection at the entrances and exits of prisons, detention centers and drug rehabilitation centers;

2，Airports, government, bank district, embassies, ports, docks, stations, military, public security and other key places; Parking lot entrances at key locations; Security precautions and anti-terrorism checks for vehicle entrances and exits of large conferences, sports meetings and other activities;

3，Customs, border inspection bayonet anti-smuggling, anti-smuggling inspection;

4，Traffic safety checkpoints, vehicle testing center, 4S shop maintenance workshop, new energy power station and other vehicle performance testing line.

产品介绍

1.拍摄车辆宽度： ≥4500mm；视场角度：≥180º；

2.拍摄车底高度：0~4500mm（适应不同底盘高度的车辆）；

3.车辆通过速度：（建议）1-120Km/h，正常情况下出入口车速控制≦30KM/h；

4.图象采集方式：车辆检测系统自动触发；

5.图片类型：彩色JPG等格式；图片失真：小于5%；

6.车底图片分辨率： 4096*n；成像图片大于4000万像素；

7.车底成像显示时间：< 1秒； 图像存储或载入时间：< 1秒；

8.车底成像设备：采用高强度抗碾压并单体密封设计；车底设备承重：≥55吨；

9.照明组件：≥6颗单体密封LED面光源；使用寿命：≥80000h；

10.车底成像设备表面结构采用方形高强度军用特级钢板护罩；底盘成像设备多重密封设计：防水、防尘、防潮、防雾；防尘防水等级：IP68(完全防尘、防水浸泡)；

11.操作系统支持：WINDOWS 7、10。

12.系统界面支持语言：可为全球用户定制中文、英文、俄文、德文、法文、阿拉伯文等多语文版本；

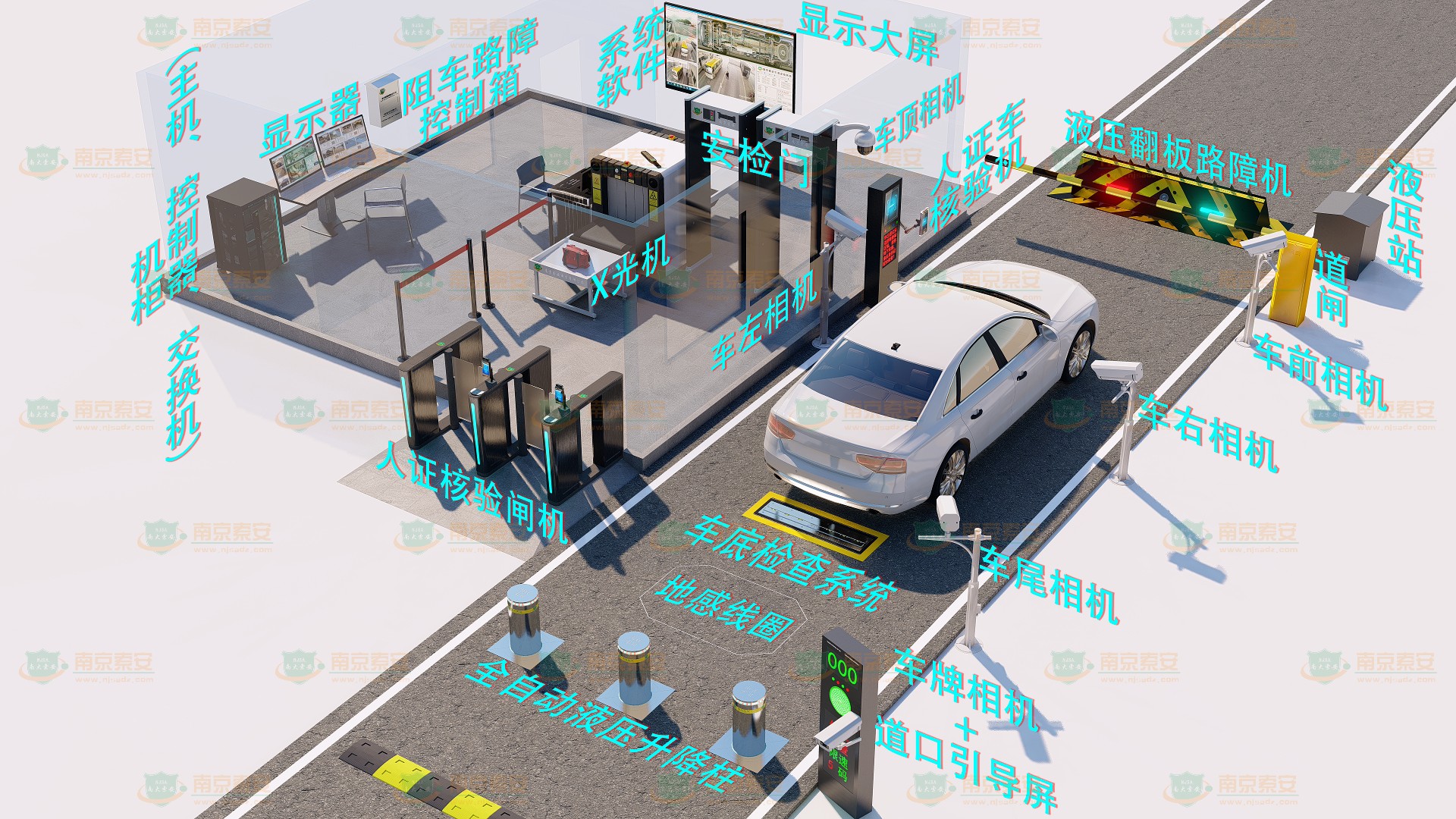

13.具有车辆全方位监控抓拍与录像、多制式车牌识别、自动检测状态显示、自动信息报播与交通信号灯指示、人证信息识别、全方位成像对比、人车证记录关联合成显示、道闸与反恐路障联动控制、白黑名单自动识别、各种高、低底盘成像检测、超长车显示模式切换、丰富的图像后期处理功能、车重检测与箱号识别、支持生命探测仪及整车X光机检测信息集成等；

14.支持多种道口管理模式：单向车道、进出混合车道、进出独立双向车道、多车道，并且支持进出场车辆信息管理；

15.工作环境：系统具有自动环境温度湿度探测及自动调节控制系统，能在-50℃~85℃的室内外全天候环境下正常工作。

Product introduction

1. Shooting vehicle width: ≥4500mm; field of view angle: ≥180º;

2. Shooting vehicle underbody height: 0~4500mm (adapted to vehicles with different chassis height);

3. Vehicle passing speed: (recommended) 1-120Km/h, under normal circumstances, the entrance and exit speed control ≦ 30KM/h;

4. Image acquisition method: automatically triggered by vehicle detection system;

5. Picture type: color JPG and other formats; picture distortion: less than 5%;

6. Vehicle chassis picture resolution: 4096 * n; imaging pictures greater than 40 million pixels;

7. Vehicle chassis imaging display time: < 1 second; image storage or loading time: < 1 second;

8. Vehicle chassis imaging equipment: the use of high-strength anti-roller and monomer sealing design; equipment weight: ≥ 55 tons;

9. Lighting components: ≥ 6 single sealed LED surface light source; service life: ≥ 80000h;

10. Vehicle chassis imaging equipment surface structure using square high-strength military-grade steel plate shroud; vehicle chassis imaging equipment multiple sealing design: waterproof, dustproof, moisture-proof, anti-fog; dustproof and waterproof grade: IP68 (completely dustproof, water immersion);

11. Operating system support: WINDOWS 7, 10.

12. System interface support language: can be customized for global users of Chinese,

功能概述：

1、4K超高清完整车底成像，可检测0.5mm细微物质或特征；

2、可自动防碾压自保护式升降，可自动清除沙尘、雨雪等杂物；

3、地面1CM的安装高度并双向缓坡式可近乎无障碍通行受检车辆可无撞击影响；

4、智能全视角车底补光照明及车底盘180度全景成像；

5、全304不锈钢精加工，抗重车碾压56吨以上，并可防水IP68泡水中60小时，配置温控系统可报警联动散热、除雾防冷凝；

6、可集成车牌、车号、箱号等识别，并可支持多个品牌的车底、车牌等采集相机接入，便于系统集成；

7、可采集安检车道内全景及车顶、车两侧及底盘多路视频，可智能拍照并关联保存;

8、可集成随车人员信息与物品安检信息并关联记录查询；可启用智能判图后异常报警联动闸门、路障等周边设备协同工作；

9、可多个车道集成显示并上传中央管理平台；

10、可国产操作系统、嵌入式系统环境下运行；

11、支持多国语言界面切换。

Function overview：

1, 4K ultra HD complete underbody imaging, can detect 0.5mm fine substances or features;

2, Can automatically prevent rolling self-protection type lifting, can automatically remove dust, rain and snow and other debris;

3, The ground 1CM installation height and two-way gentle slope can be almost barrier-free access to the inspected vehicle can have no impact;

4. Intelligent full-view underbody lighting and 180-degree panoramic imaging of chassis;

5, All 304 stainless steel finishing, resist heavy car rolling more than 56 tons, and can be waterproof IP68 soak in water for 60 hours, equipped with temperature control system can alarm linkage heat dissipation, fog and condensation;

6, Can integrate license plate, car number, box number and other recognition, and can support multiple brands of car under, license plate and other acquisition camera access, easy system integration;

7, Can collect the panoramic view of the security lane and the roof, the two sides of the car and the chassis of the multi-channel video, can be intelligent photo and associated save;

8, Can integrate the vehicle personnel information and items security information and associated record query; It can enable the abnormal alarm linkage gate, barricade and other peripheral equipment to work together after intelligent judgment;

9. Multiple lanes can be integrated display and upload to the central management platform;

10, Can run under domestic operating system, embedded system environment;

11, Support multi-language interface switching.

特色优势：

无障碍通检双向扫描检查，

4K超高清成像，

防碾压自升降，

自动清除尘雪、

自动散热除雾、

智慧判图异常报警；

多通道集中管理便于平台集成。

Characteristic advantage：

Accessible two-way scanning inspection,

4K ultra-high definition imaging,

Anti-rolling self-lifting,

Automatic removal of dust and snow,

Automatic heat dissipation and fog removal,

Intelligent map abnormal alarm;

Multi-channel centralized management facilitates platform integration.
